Can't Find Constraints on Line


Recommended Posts

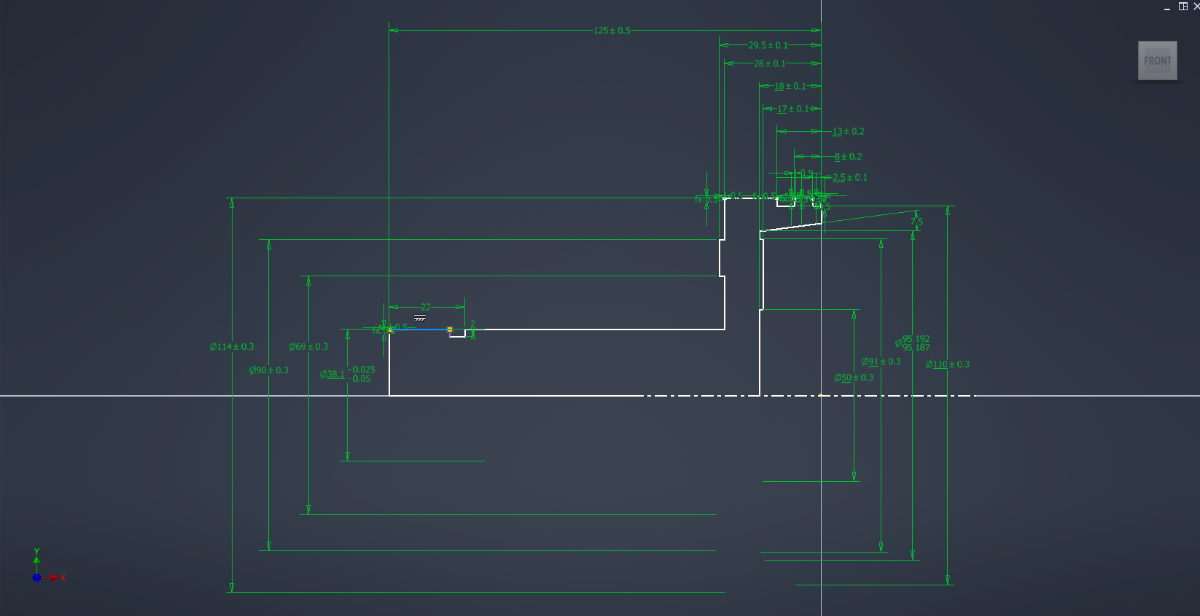

The line highlighted in the image, in Sketch1, must be a different distance from the centerline than the nearby line parallel to it. For some reason I can't deduce, Inventor is constraining this line to the one defined by the 38.1 -0.025 -0.05 dimension. I deleted the line and redrew it, but the result was the same. It's so simple that I can't think of any other way to add the line. Please help.


The file is attached.

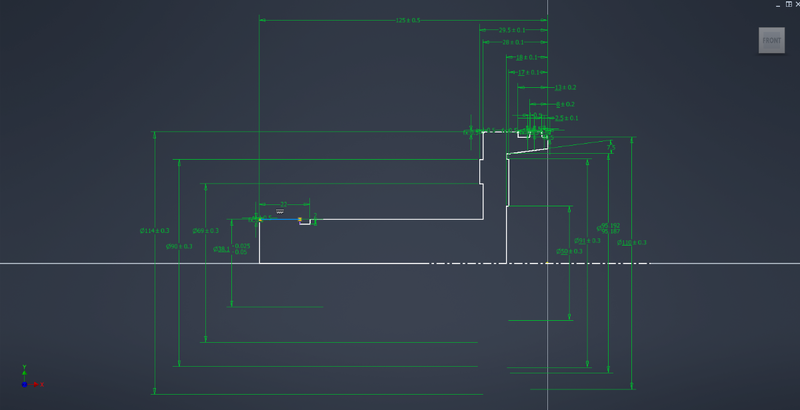

Unknown Constrain.png
