Lisp to move points in Z-Direction or Make points with certain distance Horizontaly

[noyajr]

Hello everyone,

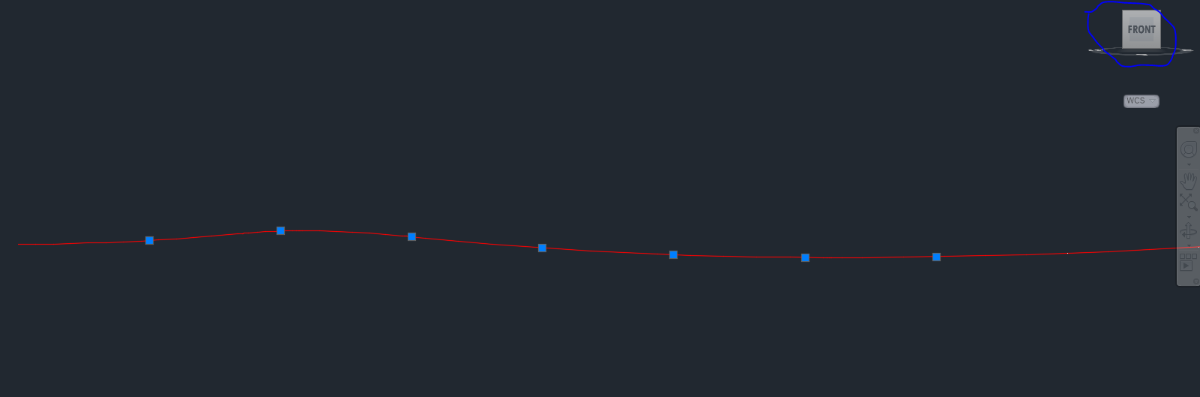

i have a little problem here, i have some splines having profile in Z direction in autocad. i want to put points each 1m (or any distance defined by user) on those splines. When i do that with "Measure" it put point each 1m on the curvature of the curve, so in plan when i measure the distance between these points it will be less than 1m, i want the 1m to be horizontal or vertical (in plan not on the curve)

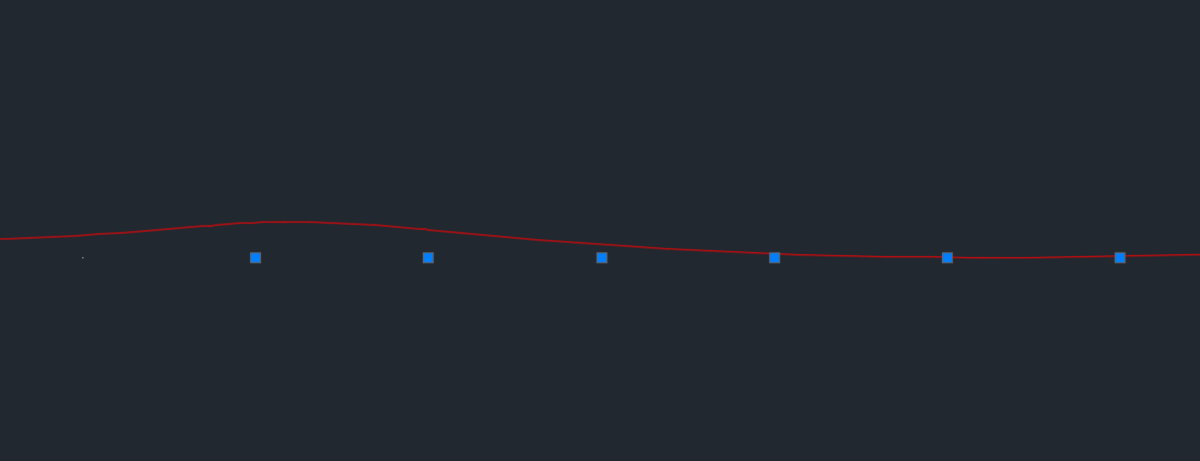

i thought the solution of this is that in plan i will create points each 1m or any distance (with array for example), these points in Z direction will not be on the curve (as these points are created in plan), i want a lisp to move these points (in Z direction only) so the points will be on the splines (this process is for multiple objects)



Does anyone have a lisp for that ?



Thanks in advance

Sample.dwg

[Steven P]

Have you looked for chainage LISPs, not sure if they work with splines though, I tend to use polylines instead

[noyajr]

22 hours ago, Steven P said:

Have you looked for chainage LISPs, not sure if they work with splines though, I tend to use polylines instead

Thanks for your reply,

I tried some of them but nothing made what i want, all of the lisps put lines or points with interval 1m on the curved path not 1m in plan distance

[devitg]

7 hours ago, noyajr said:

Thanks for your reply,

I tried some of them but nothing made what i want, all of the lisps put lines or points with interval 1m on the curved path not 1m in plan distance

@noyajr some like it . it s spaced in 25  equal parts ,



one spaced spline.dwg

[devitg]

48 minutes ago, devitg said:

@noyajr some like it . it s spaced in 25  equal parts ,



one spaced spline.dwg 27.53 kB · 0 downloads

@noyajr It seem it could be so  spaced

spaced spline.dwg

[marko_ribar]

Look for (vlax-curve-getclosestpointtoprojection) function... You make line horizontaly like in your picture, then measure - 1.0, then (foreach pt pts => (setq ptn (vlax-curve-getclosestpointtoprojection spline pt '(0.0 1.0 0.0)))... So ptn are your new points on spline - then just use (entmake) or POINT command to place them on spline...

[noyajr]

15 hours ago, devitg said:

@noyajr It seem it could be so  spaced

spaced spline.dwg 58.28 kB · 2 downloads

Yes this is perfect for me, but i have alot of these splines with very different lengths, so is there a way to do this spacing each 1m or any other distance ?

[asdfgh]

Any news about this topic ?

Edited August 13 by asdfgh

[hosneyalaa]

On 8/7/2023 at 11:08 PM, marko_ribar said:

Look for (vlax-curve-getclosestpointtoprojection) function... You make line horizontaly like in your picture, then measure - 1.0, then (foreach pt pts => (setq ptn (vlax-curve-getclosestpointtoprojection spline pt '(0.0 1.0 0.0)))... So ptn are your new points on spline - then just use (entmake) or POINT command to place them on spline...



AS @marko_ribar SAY

@asdfgh TRY THIS



(defun c:Spline_Copy (/           ACADOBJ     CONTROLPOINT
                      CONTROLPOINTN           DOC         ENAME
                      INT         IPOINT      LEN         OBJENTGET
                      OBJOBJECCOPYT           OBJOBJECT   POINT1
                      POINT2      PT1         PTN         STT
                     )


  (setq acadObj (vlax-get-acad-object))
  (setq doc (vla-get-activedocument acadObj))

  (if
    (and
      (setq objENTGET (entget (setq eName (car (entsel "\nSelect")))))
      (setq int (getdist "\nSpecify spacing interval: "))
    ) ;_ end of and

     (progn

       (setq objobject (vlax-ename->vla-object eName))


       (setq objobjeccopyt (vla-copy objobject))

       ;; Define the points that make up the move vector
       (setq point1 (vlax-3d-point 0 0 0)
             point2 (vlax-3d-point 0 0 -5)
       ) ;_ end of setq
       (vla-move objobjeccopyt point1 point2)

       (setq iPoint 0) ;_ end of setq

       (while (> (vla-get-numberofcontrolpoints objobjeccopyt) iPoint)
         (progn


           (setq controlPoint
                  (vlax-safearray->list
                    (vlax-variant-value
                      (vla-getcontrolpoint objobjeccopyt iPoint)
                    ) ;_ end of vlax-variant-value
                  ) ;_ end of vlax-safearray->list
           ) ;_ end of setq

           (setq controlPointn
                  (vlax-3d-point
                    (car controlPoint)
                    (cadr controlPoint)
                    0
                  ) ;_ end of vlax-3d-point
           ) ;_ end of setq
           (vla-setcontrolpoint objobjeccopyt iPoint controlPointn)
           (vla-update objobjeccopyt)

           (setq iPoint (1+ iPoint))


         ) ;_ end of progn
       ) ;_ end of while


       (setq len (vlax-curve-getdistatparam
                   objobjeccopyt
                   (vlax-curve-getendparam objobjeccopyt)
                 ) ;_ end of vlax-curve-getDistAtParam
       ) ;_ end of setq

       (setq stt 0) ;_ end of setq


       (while (<= stt len)
         (progn

           (setq pt1 (vlax-curve-getpointatdist objobjeccopyt stt))
           (setq ptn (vlax-curve-getclosestpointtoprojection
                       objobject
                       pt1
                       ;'(0.0 1.0 0.0)
                       '(0.0 0.0 1.0)
                     )
           ) ;_ end of setq

;;;
           (entmakex
             (list
               '(0 . "POINT")
               (cons 10 ptn)
               (cons 8 "00-point")
             ) ;_ end of list
           ) ;_ end of entmakex




           (setq stt (+ int stt))


         ) ;_ end of progn



       ) ;_ end of while



       (vla-delete objobjeccopyt)





     ) ;_ end of progn
  ) ;_ end of if
  (princ)
) ;_ end of defun
;|«Visual LISP© Format Options»
(72 2 50 2 T "end of " 60 9 1 0 0 nil T nil T)
;*** DO NOT add text below the comment! ***|;
