Include Plines in the lisp "block counter" of lee-mac

[Roald]

Hello everyone, I
my name is Roald I am new to the site and to the world of lisps. I recently discovered a very practical and well-made lisp "Block Counter" from Lee-Mac available on his site, this lisp as its name suggests allows you to quickly count the number of blocks in a drawing and present it in a painting. My request on this lisp is how to include polylines. I often need to make legends for my drawings and with this lisp I would like to be able to produce an automatic legend that includes blocks and polylines.
If any of you have any suggestions any help would be greatly appreciated. Sincerely!

I attach said Lisp to the following.



(setq
    count:version "1-5"
    count:defaults
   '(
        (out "tab")
        (tg1 "1")
        (tg2 "1")
        (tg3 "1")
        (ed1 "Block Data")
        (ed2 "Preview")
        (ed3 "Block Name")
        (ed4 "Count")
        (srt "blk")
        (ord "asc")
    )
)

;;----------------------------------------------------------------------;;

(defun count:fixdir ( dir )
    (vl-string-right-trim "\\" (vl-string-translate "/" "\\" dir))
)

;;----------------------------------------------------------------------;;

(defun count:getsavepath ( / tmp )
    (cond
        (   (setq tmp (getvar 'roamablerootprefix))
            (strcat (count:fixdir tmp) "\\Support")
        )
        (   (setq tmp (findfile "acad.pat"))
            (count:fixdir (vl-filename-directory tmp))
        )
        (   (count:fixdir (vl-filename-directory (vl-filename-mktemp))))
    )
)

;;----------------------------------------------------------------------;;

(setq count:savepath (count:getsavepath) ;; Save path for DCL & Config files
      count:dclfname (strcat count:savepath "\\LMAC_count_V" count:version ".dcl")
      count:cfgfname (strcat count:savepath "\\LMAC_count_V" count:version ".cfg")
)

;;----------------------------------------------------------------------;;

(defun c:blkcount

    (
        /
        *error*
        all
        col
        des dir
        ed1 ed2 ed3 ed4
        fil fnm fun
        hgt
        idx ins
        lst
        ord out
        row
        sel srt
        tab tg1 tg2 tg3 tmp
        xrf
    )

    (defun *error* ( msg )
        (if (= 'file (type des))
            (close des)
        )
        (if (and (= 'vla-object (type tab))
                 (null (vlax-erased-p tab))
                 (= "AcDbTable" (vla-get-objectname tab))
                 (vlax-write-enabled-p tab)
                 (vlax-property-available-p tab 'regeneratetablesuppressed t)
            )
            (vla-put-regeneratetablesuppressed tab :vlax-false)
        )
        (if (and (= 'vla-object (type count:wshobject))
                 (not (vlax-object-released-p count:wshobject))
            )
            (progn
                (vlax-release-object count:wshobject)
                (setq count:wshobject nil)
            )
        )
        (count:endundo (count:acdoc))
        (if (and msg (not (wcmatch (strcase msg t) "*break,*cancel*,*exit*")))
            (princ (strcat "\nError: " msg))
        )
        (princ)
    )

    (if (not (findfile count:cfgfname))
        (count:writecfg count:cfgfname (mapcar 'cadr count:defaults))
    )
    (count:readcfg count:cfgfname (mapcar 'car count:defaults))
    (foreach sym count:defaults
        (if (not (boundp (car sym))) (apply 'set sym))
    )
    (if (and (= "tab" out) (not (vlax-method-applicable-p (vla-get-modelspace (count:acdoc)) 'addtable)))
        (setq out "txt")
    )

    (count:startundo (count:acdoc))

    (while (setq tmp (tblnext "block" (null tmp)))
        (if (= 4 (logand 4 (cdr (assoc 70 tmp))))
            (setq xrf (vl-list* "," (cdr (assoc 2 tmp)) xrf))
        )
    )
    (if xrf
        (setq fil  (list '(0 . "INSERT") '(-4 . "<NOT") (cons 2 (apply 'strcat (cdr xrf))) '(-4 . "NOT>")))
        (setq fil '((0 . "INSERT")))
    )

    (cond
        (   (null (setq all (ssget "_X" fil)))
            (count:popup
                "No Blocks Found" 64
                (princ "No blocks were found in the active drawing.")
            )
        )
        (   (and (= "tab" out) (= 4 (logand 4 (cdr (assoc 70 (tblsearch "layer" (getvar 'clayer)))))))
            (count:popup
                "Current Layer Locked" 64
                (princ "Please unlock the current layer before using this program.")
            )
        )
        (   (progn
                (setvar 'nomutt 1)
                (princ "\nSelect blocks to count <all>: ")
                (setq sel
                    (cond
                        (   (null (setq sel (vl-catch-all-apply 'ssget (list fil))))
                            all
                        )
                        (   (null (vl-catch-all-error-p sel))
                            sel
                        )
                    )
                )
                (setvar 'nomutt 0)
                (null sel)
            )
        )
        (   (or (= "com" out)
                (and (=  "tab" out) (setq ins (getpoint "\nSpecify point for table: ")))
                (and (/= "tab" out)
                    (setq fnm
                        (getfiled "Create Output File"
                            (cond
                                (   (and (setq dir (getenv "LMac\\countdir"))
                                         (vl-file-directory-p (setq dir (count:fixdir dir)))
                                    )
                                    (strcat dir "\\")
                                )
                                (   (getvar 'dwgprefix))
                            )
                            out 1
                        )
                    )
                )
            )
            (repeat (setq idx (sslength sel))
                (setq lst (count:assoc++ (count:effectivename (ssname sel (setq idx (1- idx)))) lst))
            )
            (if (= "blk" srt)
                (setq fun (eval (list 'lambda '( a b ) (list (if (= "asc" ord) '< '>) '(strcase (car a)) '(strcase (car b))))))
                (setq fun (eval (list 'lambda '( a b ) (list (if (= "asc" ord) '< '>) '(cdr a) '(cdr b)))))
            )
            (setq lst (vl-sort lst 'fun))
            (cond
                (   (= "com" out)
                    (defun prinn ( x ) (princ "\n") (princ x))
                    (prinn (count:padbetween "" "" "=" 60))
                    (if (= "1" tg1)
                        (progn
                            (prinn ed1)
                            (prinn (count:padbetween "" "" "-" 60))
                        )
                    )
                    (prinn (count:padbetween ed3 ed4 " " 55))
                    (prinn (count:padbetween "" "" "-"   60))
                    (if (= "1" tg3)
                        (foreach itm lst
                            (prinn (count:padbetween (car itm) (itoa (cdr itm)) "." 55))
                        )
                        (foreach itm lst (prinn (car itm)))
                    )
                    (prinn (count:padbetween "" "" "=" 60))
                    (textpage)
                )
                (   (= "tab" out)
                    (if (= "1" tg3)
                        (setq lst (mapcar '(lambda ( x ) (list (car x) (itoa (cdr x)))) lst))
                        (setq lst (mapcar '(lambda ( x ) (list (car x))) lst))
                    )
                    (setq hgt
                        (vla-gettextheight
                            (vla-item
                                (vla-item (vla-get-dictionaries (count:acdoc)) "acad_tablestyle")
                                (getvar 'ctablestyle)
                            )
                            acdatarow
                        )
                    )
                    (setq tab
                        (vla-addtable
                            (vlax-get-property (count:acdoc) (if (= 1 (getvar 'cvport)) 'paperspace 'modelspace))
                            (vlax-3D-point (trans ins 1 0))
                            (+ (length lst) 2)
                            (+ 1 (atoi tg2) (atoi tg3))
                            (* 2.5 hgt)
                            (* hgt
                                (max
                                    (apply 'max
                                        (mapcar 'strlen
                                            (append
                                                (if (= "1" tg2) (list ed2))
                                                (if (= "1" tg3) (list ed4))
                                                (cons ed3 (apply 'append lst))
                                            )
                                        )
                                    )
                                    (if (= "1" tg1) (/ (strlen ed1) (+ 1 (atoi tg2) (atoi tg3))) 0)
                                )
                            )
                        )
                    )
                    (if (vlax-property-available-p tab 'regeneratetablesuppressed t)
                        (vla-put-regeneratetablesuppressed tab :vlax-true)
                    )
                    (vla-put-stylename tab (getvar 'ctablestyle))
                    (setq col 0)
                    (mapcar
                       '(lambda ( a b ) (if (= "1" a) (progn (vla-settext tab 1 col b) (setq col (1+ col)))))
                        (list tg2 "1" tg3)
                        (list ed2 ed3 ed4)
                    )
                    (setq row 2)
                    (foreach itm lst
                        (if (= "1" tg2)
                            (count:setblocktablerecord tab row (setq col 0) (car itm))
                            (setq col -1)
                        )
                        (foreach txt itm
                            (vla-settext tab row (setq col (1+ col)) txt)
                        )
                        (setq row (1+ row))
                    )
                    (if (= "1" tg1)
                        (vla-settext tab 0 0 ed1)
                        (vla-deleterows tab 0 1)
                    )
                )
                (   (setenv "LMac\\countdir" (count:fixdir (vl-filename-directory fnm)))
                    (if
                        (
                            (if (= "txt" out)
                                count:writetxt
                                count:writecsv
                            )
                            (append
                                (if (= "1" tg1)
                                    (list (list ed1))
                                )
                                (if (= "1" tg3)
                                    (cons (list ed3 ed4) (mapcar '(lambda ( x ) (list (car x) (itoa (cdr x)))) lst))
                                    (cons (list ed3)     (mapcar '(lambda ( x ) (list (car x))) lst))
                                )
                            )
                            fnm
                        )
                        (princ (strcat "\nBlock data written to " fnm))
                        (count:popup "Unable to Create Output File" 48
                            (princ
                                (strcat
                                    "The program was unable to create the following file:\n\n"
                                    fnm
                                    "\n\nPlease ensure that you have write-permissions for the above directory."
                                )
                            )
                        )
                    )
                )
            )
        )
    )
    (*error* nil)
    (princ)
)

;;----------------------------------------------------------------------;;

(defun c:blkcountsettings

    (
        /
        *error*
        dch des
        ord out out-fun
        srt
        tg1 tg1-fun tg2 tg2-fun tg3 tg3-fun
    )

    (defun *error* ( msg )
        (if (= 'file (type des))
            (close des)
        )
        (if (and (= 'int (type dch))
                 (< 0 dch)
            )
            (unload_dialog dch)
        )
        (if (and (= 'vla-object (type count:wshobject))
                 (not (vlax-object-released-p count:wshobject))
            )
            (progn
                (vlax-release-object count:wshobject)
                (setq count:wshobject nil)
            )
        )
        (if (and msg (not (wcmatch (strcase msg t) "*break,*cancel*,*exit*")))
            (princ (strcat "\nError: " msg))
        )
        (princ)
    )

    (if (not (findfile count:cfgfname))
        (count:writecfg count:cfgfname (mapcar 'cadr count:defaults))
    )
    (count:readcfg count:cfgfname (mapcar 'car count:defaults))
    (foreach sym count:defaults
        (if (not (boundp (car sym))) (apply 'set sym))
    )
    (cond
        (   (not (count:writedcl count:dclfname))
            (count:popup "DCL file could not be written" 48
                (princ
                    (strcat
                        "The DCL file required by this program could not be written to the following location:\n\n"
                        count:dclfname
                        "\n\nPlease ensure that you have write-permissions for the above directory."
                    )
                )
            )
        )
        (   (<= (setq dch (load_dialog count:dclfname)) 0)
            (count:popup "DCL file could not be loaded" 48
                (princ
                    (strcat
                        "The following DCL file required by this program could not be loaded:\n\n"
                        count:dclfname
                        "\n\nPlease verify the integrity of this file."
                    )
                )
            )
        )
        (   (not (new_dialog "dia" dch))
            (count:popup "DCL file contains an error" 48
                (princ
                    (strcat
                        "The program dialog could not be displayed as the following DCL file file contains an error:\n\n"
                        count:dclfname
                        "\n\nPlease verify the integrity of this file."
                    )
                )
            )
        )
        (   t
            (set_tile "dcl"
                (strcat
                    "Count.lsp Version "
                    (vl-string-translate "-" "." count:version)
                    " \\U+00A9 Lee Mac "
                    (menucmd "m=$(edtime,0,yyyy)")
                )
            )
            (if (and (= "tab" out) (not (vlax-method-applicable-p (vla-get-modelspace (count:acdoc)) 'addtable)))
                (progn
                    (mode_tile "tab" 1)
                    (setq out "txt")
                )
            )
            (   (setq tg1-fun (lambda ( val ) (mode_tile "ed1" (- 1 (atoi (setq tg1 val)))))) (set_tile "tg1" tg1))
            (action_tile "tg1" "(tg1-fun $value)")

            (   (setq tg2-fun (lambda ( val ) (mode_tile "ed2" (- 1 (atoi (setq tg2 val)))))) (set_tile "tg2" tg2))
            (action_tile "tg2" "(tg2-fun $value)")

            (   (setq tg3-fun (lambda ( val ) (mode_tile "ed4" (- 1 (atoi (setq tg3 val)))))) (set_tile "tg3" tg3))
            (action_tile "tg3" "(tg3-fun $value)")

            (foreach key '("ed1" "ed2" "ed3" "ed4")
                (set_tile key (eval (read key)))
                (action_tile key (strcat "(setq " key " $value)"))
            )
            (set_tile out "1")
            (   (setq out-fun
                    (lambda ( val )
                        (if (= "tab" (setq out val))
                            (progn
                                (mode_tile "tg2" 0)
                                (mode_tile "ed2" (- 1 (atoi tg2)))
                            )
                            (progn
                                (mode_tile "tg2" 1)
                                (mode_tile "ed2" 1)
                            )
                        )
                    )
                )
                out
            )
            (foreach key '("tab" "txt" "csv" "com")
                (action_tile key "(out-fun $key)")
            )
            (set_tile srt "1")
            (foreach key '("blk" "qty")
                (action_tile key "(setq srt $key)")
            )
            (set_tile ord "1")
            (foreach key '("asc" "des")
                (action_tile key "(setq ord $key)")
            )
            (if (= 1 (start_dialog))
                (count:writecfg count:cfgfname (mapcar 'eval (mapcar 'car count:defaults)))
            )
        )
    )
    (*error* nil)
    (princ)
)

;;----------------------------------------------------------------------;;

(defun count:popup ( ttl flg msg / err )
    (setq err (vl-catch-all-apply 'vlax-invoke-method (list (count:wsh) 'popup msg 0 ttl flg)))
    (if (null (vl-catch-all-error-p err))
        err
    )
)

;;----------------------------------------------------------------------;;

(defun count:wsh nil
    (cond (count:wshobject) ((setq count:wshobject (vlax-create-object "wscript.shell"))))
)

;;----------------------------------------------------------------------;;

(defun count:tostring ( arg / dim )
    (cond
        (   (= 'int (type arg))
            (itoa arg)
        )
        (   (= 'real (type arg))
            (setq dim (getvar 'dimzin))
            (setvar 'dimzin 8)
            (setq arg (rtos arg 2 15))
            (setvar 'dimzin dim)
            arg
        )
        (   (vl-prin1-to-string arg))
    )
)

;;----------------------------------------------------------------------;;

(defun count:writecfg ( cfg lst / des )
    (if (setq des (open cfg "w"))
        (progn
            (foreach itm lst (write-line (count:tostring itm) des))
            (setq des (close des))
            t
        )
    )
)

;;----------------------------------------------------------------------;;

(defun count:readcfg ( cfg lst / des itm )
    (if
        (and
            (setq cfg (findfile cfg))
            (setq des (open cfg "r"))
        )
        (progn
            (foreach sym lst
                (if (setq itm (read-line des))
                    (set  sym (read itm))
                )
            )
            (setq des (close des))
            t
        )
    )
)

;;----------------------------------------------------------------------;;

(defun count:writedcl ( dcl / des )
    (cond
        (   (findfile dcl))
        (   (setq des (open dcl "w"))
            (foreach itm
               '(
                    "//--------------------=={ Count Dialog Definition }==-------------------//"
                    "//                                                                      //"
                    "//  Dialog definition file for use in conjunction with Count.lsp        //"
                    "//----------------------------------------------------------------------//"
                    "//  Author:  Lee Mac, Copyright   2014  -  www.lee-mac.com              //"
                    "//----------------------------------------------------------------------//"
                    ""
                    "b15 : edit_box"
                    "{"
                    "    edit_width = 16;"
                    "    edit_limit = 1024;"
                    "    fixed_width = true;"
                    "    alignment = centered;"
                    "    horizontal_margin = none;"
                    "    vertical_margin = none;"
                    "}"
                    "b30 : edit_box"
                    "{"
                    "    edit_width = 52;"
                    "    edit_limit = 1024;"
                    "    fixed_width = true;"
                    "    alignment = centered;"
                    "    horizontal_margin = none;"
                    "    vertical_margin = none;"
                    "}"
                    "tog : toggle"
                    "{"
                    "    vertical_margin = none;"
                    "    horizontal_margin = 0.2;"
                    "}"
                    "rwo : row"
                    "{"
                    "    fixed_width = true;"
                    "    alignment = centered;"
                    "}"
                    "rrw : radio_row"
                    "{"
                    "    fixed_width = true;"
                    "    alignment = centered;"
                    "}"
                    "dia : dialog"
                    "{"
                    "    key = \"dcl\";"
                    "    spacer_1;"
                    "    : boxed_column"
                    "    {"
                    "        label = \"Output\";"
                    "        : rrw"
                    "        {"
                    "            : radio_button { key = \"tab\"; label = \"Table\"; }"
                    "            : radio_button { key = \"txt\"; label = \"Text File\"; }"
                    "            : radio_button { key = \"csv\"; label = \"CSV File\"; }"
                    "            : radio_button { key = \"com\"; label = \"Command line\"; }"
                    "        }"
                    "        spacer;"
                    "    }"
                    "    : boxed_column"
                    "    {"
                    "        label = \"Headings\";"
                    "        spacer_1;"
                    "        : rwo"
                    "        {"
                    "            : tog { key = \"tg1\"; }"
                    "            : b30 { key = \"ed1\"; }"
                    "            : spacer"
                    "            {"
                    "                fixed_width = true;"
                    "                vertical_margin = none;"
                    "                width = 2.5;"
                    "            }"
                    "        }"
                    "        : rwo"
                    "        {"
                    "            spacer;"
                    "            : tog { key = \"tg2\"; }"
                    "            : b15 { key = \"ed2\"; }"
                    "            : b15 { key = \"ed3\"; }"
                    "            : b15 { key = \"ed4\"; }"
                    "            : tog { key = \"tg3\"; }"
                    "            spacer;"
                    "        }"
                    "        spacer_1;"
                    "    }"
                    "    : row"
                    "    {"
                    "        : boxed_column"
                    "        {"
                    "            label = \"Sort By\";"
                    "            : rrw"
                    "            {"
                    "                : radio_button { key = \"blk\"; label = \"Block Name\"; }"
                    "                : radio_button { key = \"qty\"; label = \"Quantity\"; }"
                    "            }"
                    "            spacer;"
                    "        }"
                    "        : boxed_column"
                    "        {"
                    "            label = \"Sort Order\";"
                    "            : rrw"
                    "            {"
                    "                : radio_button { key = \"asc\"; label = \"Ascending\"; }"
                    "                : radio_button { key = \"des\"; label = \"Descending\"; }"
                    "            }"
                    "            spacer;"
                    "        }"
                    "    }"
                    "    spacer_1; ok_cancel;"
                    "}"
                    ""
                    "//----------------------------------------------------------------------//"
                    "//                             End of File                              //"
                    "//----------------------------------------------------------------------//"
                )
                (write-line itm des)
            )
            (setq des (close des))
            (while (not (findfile dcl))) ;; for slow HDDs
            dcl
        )
    )
)

;;----------------------------------------------------------------------;;

(defun count:writecsv ( lst csv / des sep )
    (if (setq des (open csv "w"))
        (progn
            (setq sep (cond ((vl-registry-read "HKEY_CURRENT_USER\\Control Panel\\International" "sList")) (",")))
            (foreach row lst (write-line (count:lst->csv row sep) des))
            (close des)
            t
        )
    )
)

;;----------------------------------------------------------------------;;

(defun count:lst->csv ( lst sep )
    (if (cdr lst)
        (strcat (count:csv-addquotes (car lst) sep) sep (count:lst->csv (cdr lst) sep))
        (count:csv-addquotes (car lst) sep)
    )
)

;;----------------------------------------------------------------------;;

(defun count:csv-addquotes ( str sep / pos )
    (cond
        (   (wcmatch str (strcat "*[`" sep "\"]*"))
            (setq pos 0)
            (while (setq pos (vl-string-position 34 str pos))
                (setq str (vl-string-subst "\"\"" "\"" str pos)
                      pos (+ pos 2)
                )
            )
            (strcat "\"" str "\"")
        )
        (   str   )
    )
)

;;----------------------------------------------------------------------;;

(defun count:writetxt ( lst txt / des )
    (if (setq des (open txt "w"))
        (progn
            (foreach itm lst (write-line (count:lst->str itm "\t") des))
            (close des)
            t
        )
    )
)

;;----------------------------------------------------------------------;;

(defun count:lst->str ( lst del )
    (if (cdr lst)
        (strcat (car lst) del (count:lst->str (cdr lst) del))
        (car lst)
    )
)

;;----------------------------------------------------------------------;;

(defun count:padbetween ( s1 s2 ch ln )
    (
        (lambda ( a b c )
            (repeat (- ln (length b) (length c)) (setq c (cons a c)))
            (vl-list->string (append b c))
        )
        (ascii ch)
        (vl-string->list s1)
        (vl-string->list s2)
    )
)

;;----------------------------------------------------------------------;;

(defun count:setblocktablerecord ( obj row col blk )
    (eval
        (list 'defun 'count:setblocktablerecord '( obj row col blk )
            (cons
                (if (vlax-method-applicable-p obj 'setblocktablerecordid32)
                    'vla-setblocktablerecordid32
                    'vla-setblocktablerecordid
                )
                (list
                    'obj 'row 'col
                    (list 'count:objectid (list 'vla-item (vla-get-blocks (count:acdoc)) 'blk))
                    ':vlax-true
                )
            )
        )
    )
    (count:setblocktablerecord obj row col blk)
)

;;----------------------------------------------------------------------;;

(defun count:objectid ( obj )
    (eval
        (list 'defun 'count:objectid '( obj )
            (cond
                (   (not (wcmatch (getenv "PROCESSOR_ARCHITECTURE") "*64*"))
                   '(vla-get-objectid obj)
                )
                (   (= 'subr (type vla-get-objectid32))
                   '(vla-get-objectid32 obj)
                )
                (   (list 'vla-getobjectidstring (vla-get-utility (count:acdoc)) 'obj ':vlax-false))
            )
        )
    )
    (count:objectid obj)
)

;;----------------------------------------------------------------------;;

(defun count:assoc++ ( key lst / itm )
    (if (setq itm (assoc key lst))
        (subst (cons key (1+ (cdr itm))) itm lst)
        (cons  (cons key 1) lst)
    )
)

;;----------------------------------------------------------------------;;

(defun count:effectivename ( ent / blk rep )
    (if (wcmatch (setq blk (cdr (assoc 2 (entget ent)))) "`**")
        (if
            (and
                (setq rep
                    (cdadr
                        (assoc -3
                            (entget
                                (cdr
                                    (assoc 330
                                        (entget
                                            (tblobjname "block" blk)
                                        )
                                    )
                                )
                               '("AcDbBlockRepBTag")
                            )
                        )
                    )
                )
                (setq rep (handent (cdr (assoc 1005 rep))))
            )
            (setq blk (cdr (assoc 2 (entget rep))))
        )
    )
    blk
)

;;----------------------------------------------------------------------;;

(defun count:startundo ( doc )
    (count:endundo doc)
    (vla-startundomark doc)
)

;;----------------------------------------------------------------------;;

(defun count:endundo ( doc )
    (while (= 8 (logand 8 (getvar 'undoctl)))
        (vla-endundomark doc)
    )
)

;;----------------------------------------------------------------------;;

(defun count:acdoc nil
    (eval (list 'defun 'count:acdoc 'nil (vla-get-activedocument (vlax-get-acad-object))))
    (count:acdoc)
)

;;----------------------------------------------------------------------;;

(vl-load-com)
(princ
    (strcat
        "\n:: Count.lsp | Version "
        (vl-string-translate "-" "." count:version)
        " | \\U+00A9 Lee Mac "
        (menucmd "m=$(edtime,0,yyyy)")
        " www.lee-mac.com ::"
        "\n:: \"blkcount\" - Main Program | \"blkcountsettings\" - Settings ::"
    )
)
(princ)

Edited September 7, 2023 by Roald
respect the site's rules on the publication of codes

[Roald]

Hello,

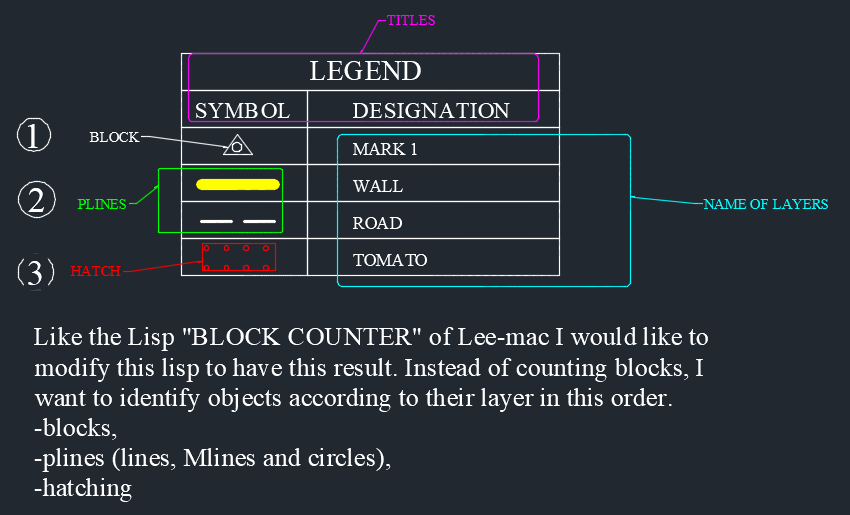

it is true that my request resembles that of many maos I bring some details to what I am trying to do like lisp. I would like to modify this lisp to have this result. Instead of counting the blocks, I rather want to identify the objects according to their layer.
-blocks,
-plines (lines, Mlines and circles),
-hatching.

[BIGAL]







Ok so you only want 2 columns ? Are you really sure ?



It is a bit of a custom request but your lucky there are solutions for draw a pline in a table, same with add a block to a cell, the hatch example I think will be like the pline its an object as I dont think a cell can hold objects other than a block. What I am hinting is that the lines are just that in a table but drawn in correct spot. Yes I have done it.



; Thanks to FIXO for code ideas
; block in table example by Alan H
; May 2018

(defun c:blkintab ( / objtable blkname row col adoc blkcount)
(setq objtable (vlax-ename->vla-object (car (entsel "\nPick table"))))
(setq blkname (vla-get-name (vlax-ename->vla-object (car (entsel "\nPick block")))))
(setq row 3 col 2)
(setq adoc (vla-get-activedocument (vlax-get-acad-object)))
(setq blkcount (vla-get-count (vla-get-blocks adoc)))
(vlax-for bitem (vla-get-blocks adoc)
(if (= blkname (vla-get-Name bitem ))
(progn
(setq blkID (vla-get-objectid bitem))
  (vla-setblocktablerecordid objtable row col blkID :vlax-true)
  (vla-setblockscale objtable row col 0.75)
  (vla-setcellalignment objtable row col acMiddlecenter)
)
)
)
(princ)
)
(c:blkintab)

; By AlanH consulting
(defun ahdodrawline (llayer crow lcol / pt pt1 pt2 vdist acm )
(setq pts (vlax-safearray->list (vlax-variant-value (VLA-GETCELLEXTENTS objtable (+ crow 1) 1 :vlax-false))))
(setq pt1 (list (nth 0 pts)(nth 1 pts) 0.0))
(setq pt2 (list (nth 6 pts)(nth 7 pts) 0.0))
(setq vdist (/ (- (cadr pt1) (cadr pt2)) 2.0))
(setq pt1 (mapcar '+ pt1 (list 10.0 vdist 0.0)))
(setq pt2 (list (nth 3 pts)(nth 4 pts) 0.0))
(setq pt2 (mapcar '+ pt2 (list (- 10.0) vdist 0.0)))
(command "line" pt1 pt2 "")
(command "chprop" (entlast) "" "la" llayer "")
(setq acm (vla-getinterfaceobject (vlax-get-acad-object) (strcat "Autocad.AcCmcolor." (substr (getvar 'acadver) 1 2))))
(vla-put-colorindex acm lcol)
(vla-setcellbackgroundcolor objtable row 2 acm)
(princ)
)

; Hatch similar to line



Edited September 9, 2023 by BIGAL

[Roald]

9 hours ago, BIGAL said:







Ok donc vous ne voulez que 2 colonnes ? Êtes-vous vraiment sûr ?



C’est un peu une demande personnalisée, mais votre chance il existe des solutions pour dessiner une ligne dans un tableau, même chose avec ajouter un bloc à une cellule, l’exemple de hachure je pense sera comme la pline c’est un objet car je ne pense pas qu’une cellule puisse contenir des objets autres qu’un bloc. Ce que je laisse entendre, c’est que les lignes ne sont que cela dans un tableau, mais dessinées au bon endroit. Oui, je l’ai fait.



; Thanks to FIXO for code ideas
; block in table example by Alan H
; May 2018

(defun c:blkintab ( / objtable blkname row col adoc blkcount)
(setq objtable (vlax-ename->vla-object (car (entsel "\nPick table"))))
(setq blkname (vla-get-name (vlax-ename->vla-object (car (entsel "\nPick block")))))
(setq row 3 col 2)
(setq adoc (vla-get-activedocument (vlax-get-acad-object)))
(setq blkcount (vla-get-count (vla-get-blocks adoc)))
(vlax-for bitem (vla-get-blocks adoc)
(if (= blkname (vla-get-Name bitem ))
(progn
(setq blkID (vla-get-objectid bitem))
  (vla-setblocktablerecordid objtable row col blkID :vlax-true)
  (vla-setblockscale objtable row col 0.75)
  (vla-setcellalignment objtable row col acMiddlecenter)
)
)
)
(princ)
)
(c:blkintab)

; By AlanH consulting
(defun ahdodrawline (llayer crow lcol / pt pt1 pt2 vdist acm )
(setq pts (vlax-safearray->list (vlax-variant-value (VLA-GETCELLEXTENTS objtable (+ crow 1) 1 :vlax-false))))
(setq pt1 (list (nth 0 pts)(nth 1 pts) 0.0))
(setq pt2 (list (nth 6 pts)(nth 7 pts) 0.0))
(setq vdist (/ (- (cadr pt1) (cadr pt2)) 2.0))
(setq pt1 (mapcar '+ pt1 (list 10.0 vdist 0.0)))
(setq pt2 (list (nth 3 pts)(nth 4 pts) 0.0))
(setq pt2 (mapcar '+ pt2 (list (- 10.0) vdist 0.0)))
(command "line" pt1 pt2 "")
(command "chprop" (entlast) "" "la" llayer "")
(setq acm (vla-getinterfaceobject (vlax-get-acad-object) (strcat "Autocad.AcCmcolor." (substr (getvar 'acadver) 1 2))))
(vla-put-colorindex acm lcol)
(vla-setcellbackgroundcolor objtable row 2 acm)
(princ)
)

; Hatch similar to line



Hi BIGAL, I loaded a lisp but it doesn't work for me. I run the "blkintab" command then I am asked to select the table then I am asked to select the block but when I do so the command stops.

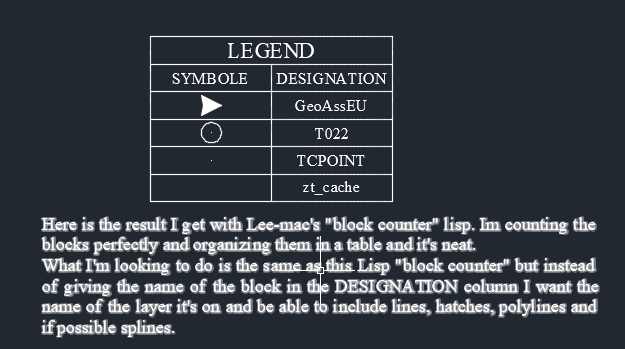

Lee-mac's lisp so I'm talking about in my first and in the title of this post already does this job, he, he identifies me all the blocks in my drawing and classifies them in a table (I put you an image below ).
What I'm looking to do is the same thing as this lisp "block counter" but instead of giving the name of the block in the DESIGNATION column I want the name of the layer where it is located and to be able to include the lines, the hatching , polylines and if possible splines.
