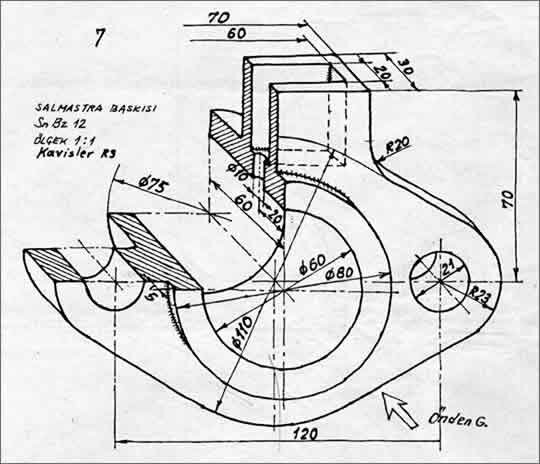

basty Posted September 29, 2023 Share Posted September 29, 2023 Do anyone can tell me please what projection this drawing is? Quote Link to comment Share on other sites More sharing options...
lrm Posted September 30, 2023 Share Posted September 30, 2023 The general term is an oblique projection. It is a parallel projection but the projection lines used to create it are parallel to each other but not perpendicular to the viewing plane (as they are with an isometric drawing and other axonometric projections). If the scale is the same in the diagonal direction as it is in the horizontal and vertical direction than it is a cavalier projection. If the third dimension is scale by 1/2 then it is referred to as a cabinet projection. https://en.wikipedia.org/wiki/Oblique_projection 1 Quote Link to comment Share on other sites More sharing options...
basty Posted September 30, 2023 Author Share Posted September 30, 2023 What is the angle of this oblique projection? Quote Link to comment Share on other sites More sharing options...
lrm Posted September 30, 2023 Share Posted September 30, 2023 What's your guess? Quote Link to comment Share on other sites More sharing options...
BIGAL Posted October 1, 2023 Share Posted October 1, 2023 Do we win something for correct guess ? 30 ? Quote Link to comment Share on other sites More sharing options...
lrm Posted October 1, 2023 Share Posted October 1, 2023 Hint. Quote Link to comment Share on other sites More sharing options...

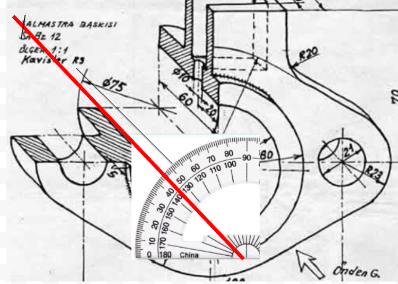

basty Posted October 2, 2023 Author Share Posted October 2, 2023 I say it's 45 degree, am I correct? Quote Link to comment Share on other sites More sharing options...
lrm Posted October 2, 2023 Share Posted October 2, 2023 (edited) Edited October 2, 2023 by lrm 1 Quote Link to comment Share on other sites More sharing options...
