Convert Corrupted Legends into Block or on Legend in AutoCAD


Recommended Posts

I have a high-resolution PDF copy of an electrical tender project drawing made with AutoCAD. I converted the PDF to DWG, but the legends were distorted because of the conversion process.

The legends are composed of multiple lines that look like drawings. Is there any way to select one legend and tell AutoCAD to find all similar legends and make each one of them a separate block or Legend that I can count and select?

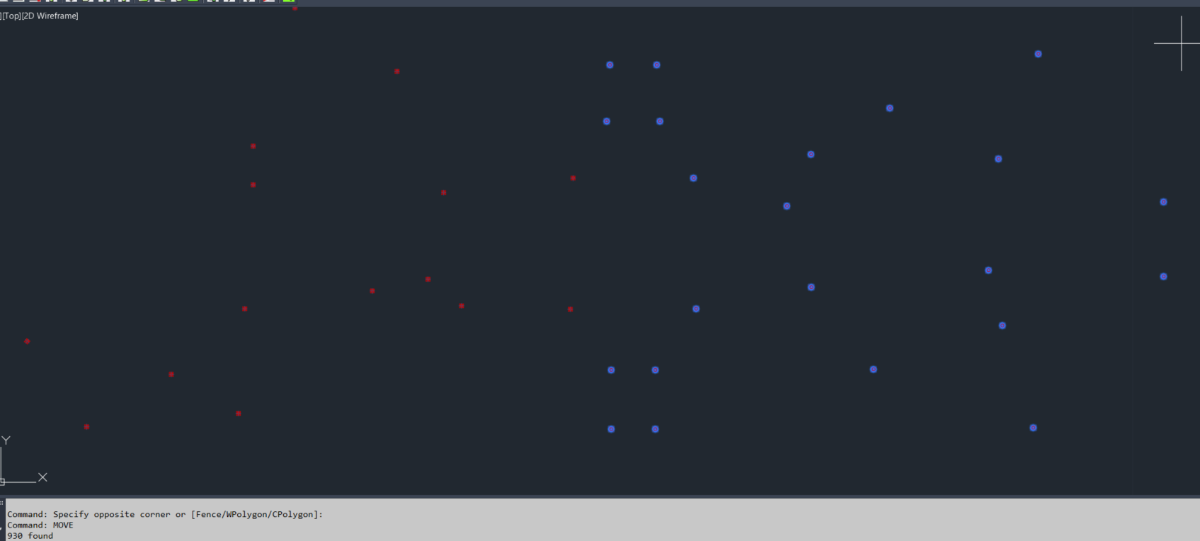

Note: I tried the Select Similar command and selected all similar objects, and I could find the similar legends, but the count was still based on the lines and not the legends."

Link to comment
Share on other sites

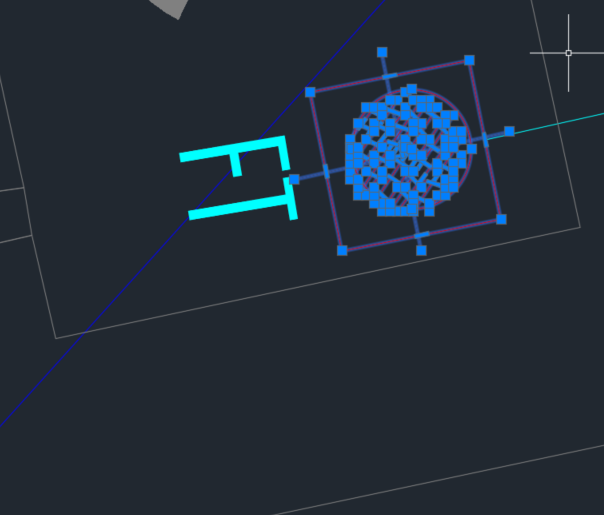

I apologize, but I lack the authorization to distribute the project. However, I can provide a screenshot of the Floor Trap legend where you'll be able to observe the count (930), though there are approximately 73 unique ones. Additionally, if you're interested, I can furnish the legends in a separate DWG file.


Link to comment
Share on other sites

Are all these details on their own layer like your screen shot would suggest? The problem I have ever had is selecting similar groups from within a whole drawing but here if all the blue coloured details are the same (to be made into 1 block) and all the red are another and can be separated from the other details then the selection process can be a lot simpler.


I'd go:

Manually turn on / off the layers

LISP: Select everything that is blue and a polyline (use ssget, guessing here that the rectangle is the only polyline)

Count can be the size of the selection set


Yes, if you can post (as a dwg) the legends detail as it comes from the PDF, and perhaps a snip, a small portion of the drawing for testing purposes - remove all project data, names and so on (ie copy to a blank drawing and send that)




Link to comment
Share on other sites

I've included a segment from the drawing and the primary PDF for testing purposes.

The method I've found to single out similar objects is by first applying the "Overkill" command. After that, I use the "SELECTSIMILAR" command and choose all the available options within the "SELECTSIMILAR" settings.


DRAINAGE_10.pdf Drawing1.dwg

Link to comment
Share on other sites

So this is quite a basic counter:


It will ask you to select an object in the group and then select the drawing area.


The first selection sets the search criteria (ssget with a filter) - here searching for anything of the same entity type, on the same layer with the same colour (can add more filters later if needed).


So if you select a circle on layer "PDF_Waste_Pipe" with a colour ByLayer it will return how many of these it finds... even if there are 2 or more in that group.


Obviously it will work the best if your legend / blocks are on a unique layer - which in your sample they look like they are - and you pick an entity that only exists once in each group like a circle or rectangle.


However looking quickly at your drawing I think this might cover what you are doing I think.


I'll have a think to see if there is a more elegant way, I suspect that there is using the ssget function, crossing polylines and removing items from selection sets


(defun c:sel ( / MyEnt EntLay EntType EntCol EntClosed MySS)
  (setq MyEnt (car (entsel "Select an Entity to count: ")))
  (if MyEnt
      (princ "Thanks. Now select the drawing area to count")
      (setq EntLay (assoc 8 (entget MyEnt)))
      (setq EntType (assoc 0 (entget MyEnt)))
      (setq EntClosed (assoc 70 (entget MyEnt)))
      (setq EntCol (assoc 62 (entget MyEnt)))

      (setq SSList (list EntType EntLay ))
      (if (= EntClosed nil) () (setq SSList (cons EntClosed SSList )))
      (if (= EntCol nil) (setq SSList (cons (cons 62 256) SSList ))) ; colour by layer

      (setq MySS (ssget SSList ))
    ) ; end progn
    (princ "Nothing selected")
  ) ; end if

  (princ (sslength MySS))(princ " blocks found")


  • Like 1
Link to comment
Share on other sites

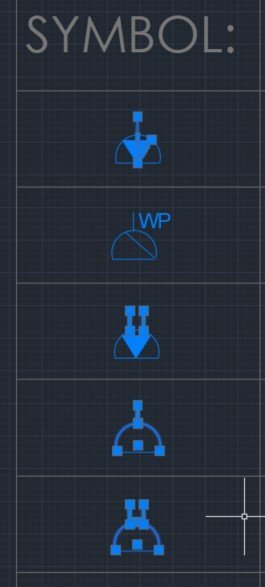

It functions effectively alongside the Floor Trap Legend. However, in the attached screenshot, there's a similar legend. When I choose the triangle, it counts both the single and twin switches. Is it possible to incorporate a feature that allows for multiple object selection or filtering by line length, perhaps? As seen in the second image, you can observe the distinctions between the legends.

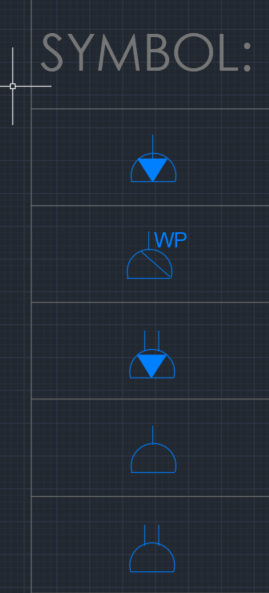

Screenshot 2023-10-28 112805.jpg
