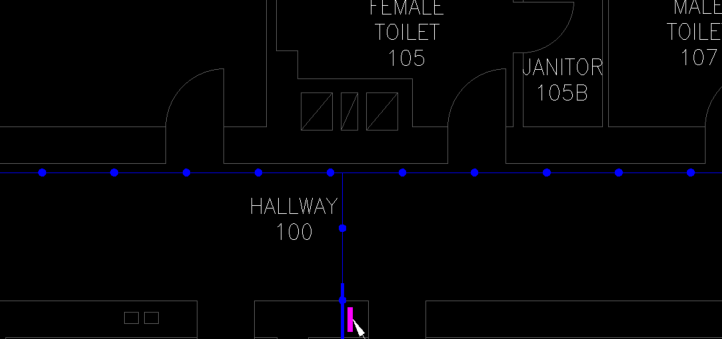

devries99 Posted October 28, 2023 Share Posted October 28, 2023 I am running autocad LT 2023. I have 500+ drawings with jhook runs which are a solid line with 5" diameter filled circles/dots spaced 50" apart. Would anybody be willing to make the .lin file and send it to me? Autocad LT doesn't hae express tools and I have searched hi and lo and cannot figure out a way to do it in Acad LT. Penny Quote Link to comment Share on other sites More sharing options...
devries99 Posted October 28, 2023 Author Share Posted October 28, 2023 Quote Link to comment Share on other sites More sharing options...
BIGAL Posted October 29, 2023 Share Posted October 29, 2023 (edited) Something like this, but you need a shx file that has the circle in it, or can use a text with a extended character which is a circle. Replace SWD with O. I will let you have a go at what the numbers mean that is your 50' check out CAD help linetypes. These are only 4 of about 20 linetypes saved in a file called custom.lin, then LINETYPE Load. *FENCELINE1,Fenceline circle ----0-----0-----0-----0-----0-----0-- A,6.35,-2.54,[CIRC1,ltypeshp.shx,x=-2.54,s=2.54],-2.54,25.4 *FENCELINE2,Fenceline square ----[]-----[]-----[]-----[]-----[]--- A,6.35,-2.54,[BOX,ltypeshp.shx,x=-2.54,s=2.54],-2.54,25.4 *EXISTING_GAS_MAIN,Existing Gas main - - -G- - -G- - -G- - -G- - - A,5.08,-5.08,5.08,-5.08,["G",STANDARD,S=1.8,R=0.0,X=-1.8,Y=-.9],-3 *STORMWATER_DRAIN,Stormwater Drain ----SWD----SWD----SWD----SWD----SWD----SWD-- A,40,-5.08,["SWD",STANDARD,S=1.8,R=0.0,X=-1.8,Y=-.9],-5.08 Edited October 29, 2023 by BIGAL Quote Link to comment Share on other sites More sharing options...
devries99 Posted October 29, 2023 Author Share Posted October 29, 2023 so I have worked with FENCELINE1 for over 6 hours. can you break down what each number represents. I was thinking 6.35 Length of line -2.54 gap cirlce -2.54 is another gap I tried to copy and rename your FENCELINE1 to JHOOK. I need the circle to be filled and 5" diameter and the space between them is 50" (4'-2" center to center) I bet I changed the numbers 50 times and could not make sense of what number control what. Quote Link to comment Share on other sites More sharing options...
BIGAL Posted October 29, 2023 Share Posted October 29, 2023 (edited) Look at stormwater line type, 40 is length -5.08 is a gap, text is SWD, style is standard, S=1.8 is size, R=0 is rotation, the X & Y move the text slightly so it lines up properly with the center of the line. The other value is LTSCALE using properties can set a line type scale so text appears. Or play with numbers. The linetypes are for metric. Try Arial and lower case o for filled circle, else need a shx object or an extended character. • alt 0149, U +2022. You might want like s=1 2 ? just draw some text next to a line at 50" spacing and look at size. Edited October 29, 2023 by BIGAL Quote Link to comment Share on other sites More sharing options...
devries99 Posted October 30, 2023 Author Share Posted October 30, 2023 *STORMWATER_DRAIN,Stormwater Drain ----SWD----SWD----SWD----SWD----SWD----SWD-- A,40,-5.08,["SWD",STANDARD,S=1.8,R=0.0,X=-1.8,Y=-.9],-5.08 *JHOOK3,Penny dot ----0-----0-----0-----0-----0-----0-- A,50,-0.01,[CIRC1,alt 0149,U + 2022],-0.01,0.054 *JHOOK4,Penny dot ----0-----0-----0-----0-----0-----0-- A,50,-0.01,[CIRC1,0149,U+2022],-0.01,0.54 I feel like I'm getting close but I get an error one I try to load the .lin file Does alt need to be in there, any spaces??? Quote Link to comment Share on other sites More sharing options...
BIGAL Posted October 30, 2023 Share Posted October 30, 2023 (edited) There is 2 ways for the symbol a text or a shp that can be anything. CIRC1 is inside ltypeshp.shx a library of shp objects, use just "O" for now to get it working. Again just swap out "SWD" with "o" using what I posted and see what you get. Edited October 30, 2023 by BIGAL Quote Link to comment Share on other sites More sharing options...
devries99 Posted October 31, 2023 Author Share Posted October 31, 2023 *JHOOK33,dots ----SWD----SWD----SWD----SWD----SWD----SWD-- A,8,-0.01,["o",STANDARD,S=2.5,R=0.0,X=-2.5,Y=-.9]-0.01,-5.08 Now if I could get the circles filled in. Quote Link to comment Share on other sites More sharing options...
tollyrodgers Posted January 8 Share Posted January 8 Hi Pal, insert the unicode reference for the required symbol as I have below. The LT below is similar to the one you require. the "-3.2" is a space the "6.4" is the line length, units are in mm. R,X,Y is text orientation. *FIELDBUS_LT,CAT6 --- * --- * --- A,6.4,-3.2,["\U+25CF",Standard,S=3,R=0,X=-1.25,Y=-1.25],-3.2 Quote Link to comment Share on other sites More sharing options...
BIGAL Posted January 8 Share Posted January 8 This is close to what you want but is an open circle need to add a filled in CIRCLE say as CIRC2 to the ltypeshp.shx then you can load line type. *JHOOK,JHOOKS ----O----O----O----O----O----O-- A,50,-5.08,[CIRC1,ltypeshp.shx,S=2.5,R=0.0,X=-2.5,Y=0.0],-5.08 Now where is my add shp. ltypeshp.shx Quote Link to comment Share on other sites More sharing options...
tombu Posted March 2 Share Posted March 2 To include solid circles in a linetype reference a font that includes one. If your drawing has an Arial Text Style using the Arial font these linetypes work *ArialDOT,Dot . . . . . . . . . . . . . . . . . . . . . . . . A,0,-.125,["\U+2022",Arial,S=.05,Y=-.024],-.125 *ArialDOT2,Dot (.5x) ........................................ A,0,-.0625,["\U+2022",Arial,S=.05,Y=-.012],-.0625 *ArialDOTX2,Dot (2x) . . . . . . . . . . . . . . A,0,-.25,["\U+2022",Arial,S=.05,Y=-.048],-.25 If your drawing has an WINGDINGS Text Style using the WINGDINGS font these linetypes work *Big_Dot,Big Dots --- O --- O ---- O --- O -- A,3,-1,["l",WINGDINGS,S=1,Y=-0.45],-2 *Big_D-Dot,Big Dash Dot --- O --- O ---- O --- O -- S,.001,["_",Arial,S=2,X=0.09,Y=0.46],-2.2,["l",WINGDINGS,S=1,Y=-0.45],-3.2,["_",Arial,S=2,X=-1.55,Y=0.46] Quote Link to comment Share on other sites More sharing options...
