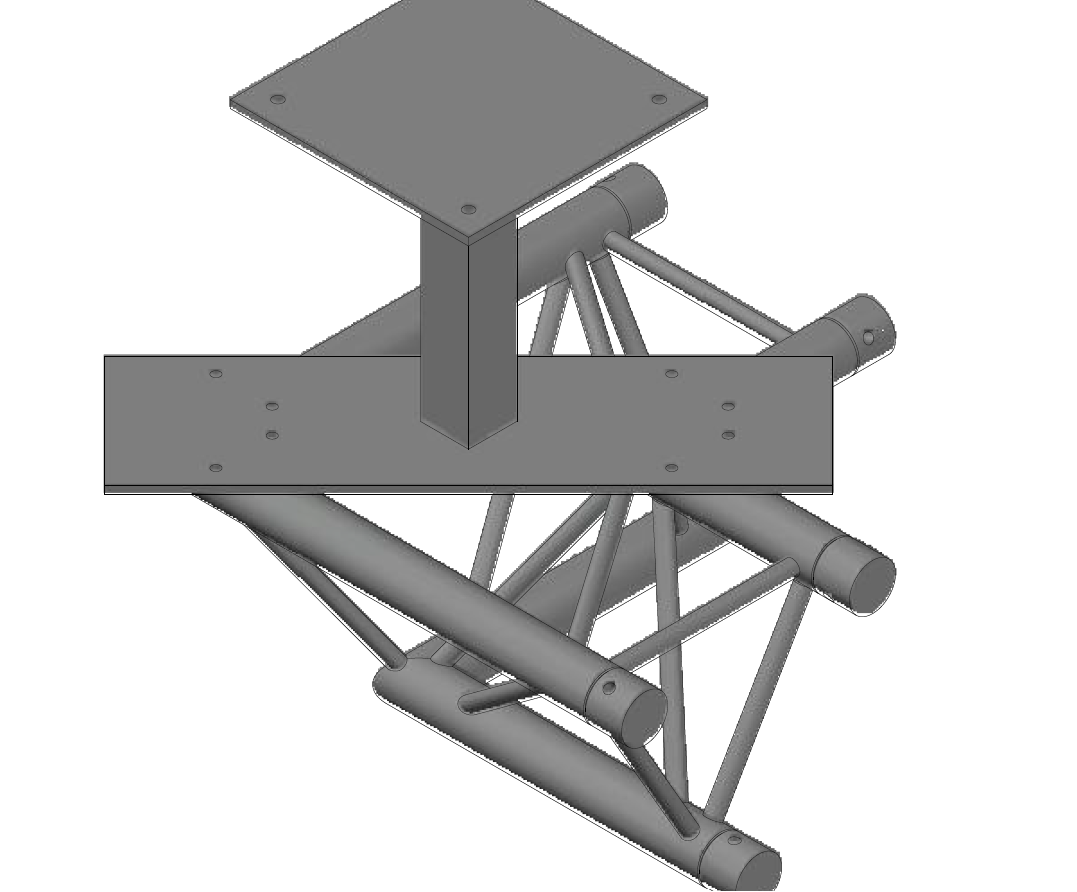

al_bey Posted January 23 Share Posted January 23 Hi all, hoping someone can assist. I have an issue- when creating a 3D drawing in AutoCAD 2022, the shading on diagonal lines when in paper space appears jagged, see screen shot attached. This happens when printing to pdf/ plotting and when viewing on the screen. I am using the BASE command to import the 3D Model into a template. The shading looks fine in model space in all modes on diagonal lines. Is anyone able to please assist? Many thanks Alex Quote Link to comment Share on other sites More sharing options...
f700es Posted January 23 Share Posted January 23 Try viewres and set it to 15000 and then maybe facetres and then dispsilh. Play with those settings a bit. Quote Link to comment Share on other sites More sharing options...
al_bey Posted January 23 Author Share Posted January 23 Thanks will try that tomorrow Quote Link to comment Share on other sites More sharing options...
al_bey Posted January 24 Author Share Posted January 24 I tried playing around with all of those settings, but still have the same problem even after regen each time. Any other ideas? Quote Link to comment Share on other sites More sharing options...

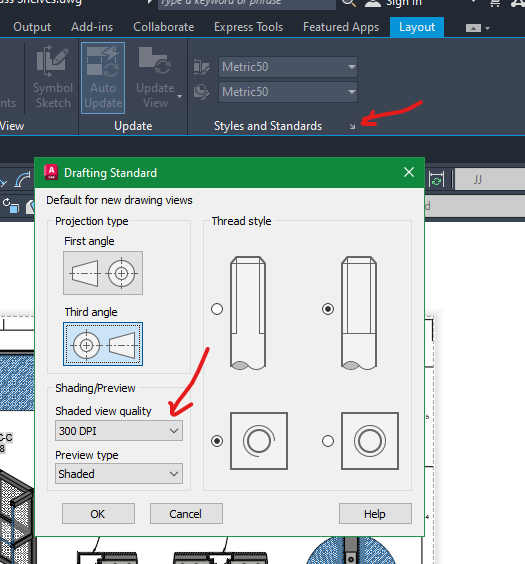

al_bey Posted January 24 Author Share Posted January 24 Just as an update, this only seems to happen when using BASE command. If I plot to a new layout page using VIEWPORTS then the shading looks fine? Quote Link to comment Share on other sites More sharing options...
