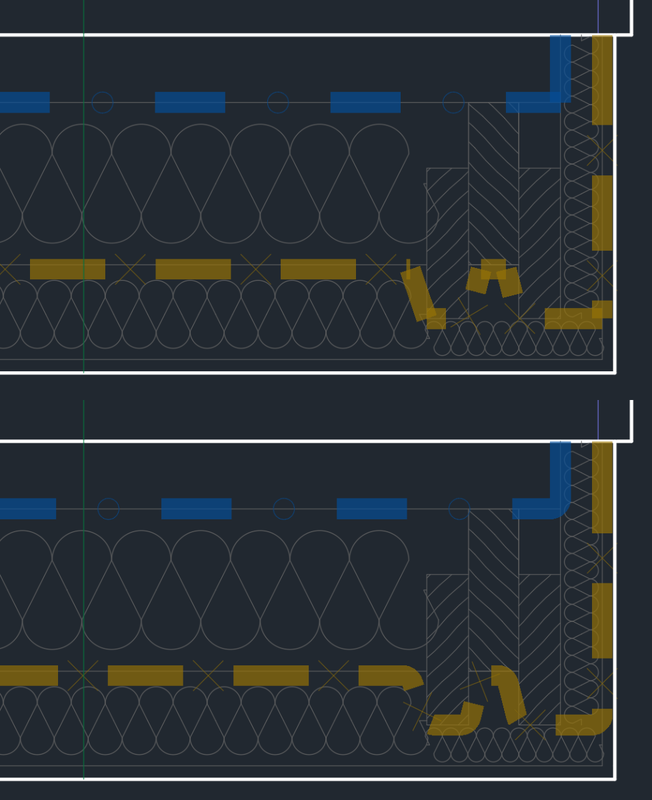

Jooogyerek Posted February 19 Share Posted February 19 I want to create Miter corners for complex Linetype polylines and sadly I can only create Rounded corners right now with FILLET. Is there any way to create Miter corners? Command, variable… anything? Thanks I currently using AutoCAD 2018 Quote Link to comment Share on other sites More sharing options...
CyberAngel Posted February 19 Share Posted February 19 (edited) Check the radius setting for the FILLET command. It needs to be zero if you want a sharp corner. If that doesn't help, please provide more information. Edited February 19 by CyberAngel 1 Quote Link to comment Share on other sites More sharing options...
Jooogyerek Posted February 19 Author Share Posted February 19 All corners are 0 radius corners. By the way the sharp/Miter corners reappear if I change the polylines to Continuous linetype. But it doesn’t work if I use more complex lines. Does it works with your setup with complex linetypes? Quote Link to comment Share on other sites More sharing options...
Jooogyerek Posted February 19 Author Share Posted February 19 I include the DWG fille. new block.dwg Quote Link to comment Share on other sites More sharing options...
