snoww Posted March 3 Share Posted March 3 Hello, i need to make 3d view of needle grease coupler. I drew a sketch in 2d and tried to revolve it to make it 3d, but it has holes in 3d shape. I want to ask how to plug the holes. Both 2d and 3d files im attaching. Thanks for your help.bandymas 3d.dwg Drawing2.dwg Quote Link to comment Share on other sites More sharing options...

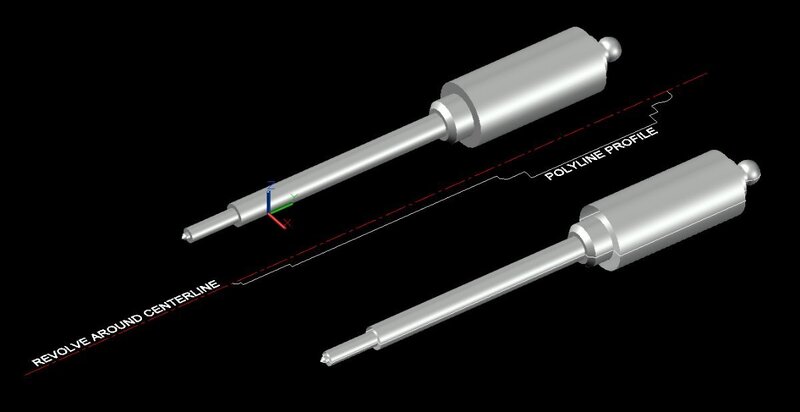

Cad64 Posted March 3 Share Posted March 3 In order to Revolve, all you need is half the polyline profile and then Revolve it around the centerline. See the image below and the attached CAD file. bandymas 3d-2.dwg Quote Link to comment Share on other sites More sharing options...
snoww Posted March 4 Author Share Posted March 4 Hello, thank you for your help. I wanted to ask how did you convert the wireframe to solid object, because when i try to convert to solid, i get an error Quote Link to comment Share on other sites More sharing options...
ReMark Posted March 4 Share Posted March 4 You might have had a gap between supposedly connected lines which would lead to an error when you try to revolve the profile. Quote Link to comment Share on other sites More sharing options...
Cad64 Posted March 4 Share Posted March 4 3 hours ago, snoww said: Hello, thank you for your help. I wanted to ask how did you convert the wireframe to solid object, because when i try to convert to solid, i get an error I didn't convert anything. I just Revolved the polyline profile. Quote Link to comment Share on other sites More sharing options...
