Snap object to TIN surface

[VictorC]

Hello everyone,



I hope I can get some help on this the following.



I have a TIN surface that was created from topography points. I have multiple trees which are placed on different parts of the x-y plane of the TIN surface (z-plane is elevation). I need the base of the trees to align to the z-axis of the TIN surface at the location the tree is. Currently the trees are at the same z-axis coordinate. Is there a command in AutoCAD that lets me select the trees and snap them to the TIN surface?



Attached is an example of the main file I'm dealing with. TIN surface is in LG_TOPO and trees are in LG_TREES.



Thank you very much for the help!

example.dwg

[BIGAL]

So all trees are at say z=0 is that what your saying ?



Ok good news and bad news if you have CIV3D there is a built in option to get a XYZ point on a TIN.



Ok there is a formula for a 3D point given XY on a 3dface. Ie 3 point plane. There is some free TIN software out there but I don't know if it does a point. You may need to copy the tin and explode it then can get a point on a 3DFACE. But have to Google for the code.



Just a question did you add the trees so they were not field surveyed.











[CyberAngel]

See this page. If you can load a TIN surface, you should have access to Civil 3D commands. On the Surface menu, pull down the Utilities. There's a command to Move Blocks to Surface.



If you're using some other flavor of AutoCAD, take BigAl's advice and find some code to do the same thing.

[BIGAL]

If you used Google you may find this,



Have a look at the GP code but note needs 3dfaces not a TIN.



[Danielm103]

This appears to be a bricscad object

[Danielm103]

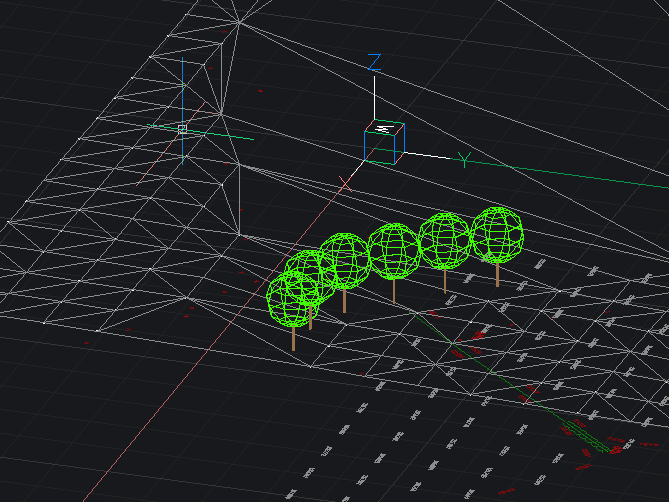

If there’s not command, you can do this with the API. Here’s a sample in Python. check the drawing and make sure it's correct : )



import traceback
from pyrx_imp import Rx
from pyrx_imp import Ge
from pyrx_imp import Gi
from pyrx_imp import Gs
from pyrx_imp import Db
from pyrx_imp import Ap
from pyrx_imp import Ed
from pyrx_imp import Cv

# debug
def PyRxCmd_pydebug() -> None:
    import PyRxDebug
    PyRxDebug.startListener()

def PyRxCmd_doit() -> None:
    try:
        db = Db.curDb()
        esel = Ed.Editor.entSel("\nSelect TIN Surface: ", Cv.CvDbTinSurface.desc())
        if esel[0] != Ed.PromptStatus.eOk:
            print("Oops {}: ".format(esel[0]))
            return

        filter = [(0, "INSERT"), (2, "Simple Tree")]
        ssres = Ed.Editor.selectAll(filter)
        if ssres[0] != Ed.PromptStatus.eOk:
            print("Oops {}: ".format(ssres[0]))
            return

        pSurface = Cv.CvDbTinSurface(esel[1])

        for id in ssres[1].objectIds():
            ref = Db.BlockReference(id, Db.OpenMode.kForWrite)
            sp = ref.position()
            ep = sp + Ge.Vector3d.kZAxis * pSurface.maxElevation()
            line = Db.Line(sp,ep)
            pnts = pSurface.intersectWith(line,Db.Intersect.kExtendArg)
            if len(pnts):
                ref.setPosition(pnts[0])

    except Exception as err:
        traceback.print_exception(err)



example.dwg

[Danielm103]

FYI, someone posted a solution for lisp at the bricscad forum

https://forum.bricsys.com/discussion/38746/reposition-block-refs-onto-a-tin-with-python#latest
