lpseifert Posted October 28, 2009 Share Posted October 28, 2009 I refer you to Post #15 Quote Link to comment Share on other sites More sharing options...
eldiego18 Posted October 28, 2009 Author Share Posted October 28, 2009 here is a DWG with some of this famous points... example.dwg Quote Link to comment Share on other sites More sharing options...
alanjt Posted October 28, 2009 Share Posted October 28, 2009 Quick and dirty, but give this a shot: (defun c:Elevate (/ #SS #Elev #Ins) (vl-load-com) (cond ((setq #SS (ssget "_:L" '((0 . "INSERT") (2 . "TCPOINT")))) (or *AcadDoc* (setq *AcadDoc* (vla-get-activedocument (vlax-get-acad-object)))) (vlax-for x (setq #SS (vla-get-activeselectionset *AcadDoc*)) (foreach a (vlax-safearray->list (vlax-variant-value (vla-getattributes x))) (if (eq (vla-get-tagstring a) "ALT") (setq #Elev (vla-get-textstring a)) ) ;_ if ) ;_ foreach (if #Elev (progn (setq #Ins (vlax-safearray->list (vlax-variant-value (vla-get-insertionpoint x)))) (vla-put-insertionpoint x (vlax-3d-point (list (car #Ins) (cadr #Ins) (atof #Elev)))) ) ;_ progn ) ;_ if ) ;_ vlax-for (vl-catch-all-apply 'vla-delete (list #SS)) ) ) ;_ cond (princ) ) ;_ defun This will elevate all blocks, then you can create a surface (in C3D) by use of Drawing objects (choose blocks). Quote Link to comment Share on other sites More sharing options...
eldiego18 Posted October 29, 2009 Author Share Posted October 29, 2009 that actually works! thanks, can you explain me how to create the sruface from this blocks now, or contour lines would be better. thanks again! Quote Link to comment Share on other sites More sharing options...
alanjt Posted October 29, 2009 Share Posted October 29, 2009 that actually works! thanks, can you explain me how to create the sruface from this blocks now, or contour lines would be better. thanks again! No problem. I'll refer you to post #2: http://www.cadtutor.net/forum/showpost.php?p=278908&postcount=2 Open ToolSpace, right-click on Surfaces and create new, then add Drawing objects and select blocks from the pull-down. If you want contours, you have to create a surface first. Quote Link to comment Share on other sites More sharing options...
eldiego18 Posted October 29, 2009 Author Share Posted October 29, 2009 "add drawing objects" is the part i dont get can u explin it like if i was 10 years old? ;-) im a total civil3d beginer Quote Link to comment Share on other sites More sharing options...
eldiego18 Posted October 29, 2009 Author Share Posted October 29, 2009 o nevermind i got it, now what about teh countour lines? Quote Link to comment Share on other sites More sharing options...
alanjt Posted October 29, 2009 Share Posted October 29, 2009 o nevermind i got it, now what about teh countour lines? Turn them on in your style. Did your company give you guys C3D training or at least a book? It's not something you just 'pick up'. Quote Link to comment Share on other sites More sharing options...
eldiego18 Posted October 29, 2009 Author Share Posted October 29, 2009 no they expect me to do it by hand, ha! (we r not engeniers) thanks anyway Quote Link to comment Share on other sites More sharing options...
alanjt Posted October 29, 2009 Share Posted October 29, 2009 no they expect me to do it by hand, ha!(we r not engeniers) thanks anyway No problem. Right-click on your surface, then Edit Surface Style. From there, you can turn on/off contours, points, triangles, etc. and change any settings you wish. Quote Link to comment Share on other sites More sharing options...
eldiego18 Posted October 29, 2009 Author Share Posted October 29, 2009 i did that all already, what about if i wanna add more detail to my surface like add contourlines every .5 m for example... Quote Link to comment Share on other sites More sharing options...
alanjt Posted October 29, 2009 Share Posted October 29, 2009 i did that all already, what about if i wanna add more detail to my surface like add contourlines every .5 m for example... Come on man, do a little digging.:wink: Quote Link to comment Share on other sites More sharing options...
eldiego18 Posted October 29, 2009 Author Share Posted October 29, 2009 what about if i wanna add more contourlines, like lest say one each .5m Quote Link to comment Share on other sites More sharing options...
eldiego18 Posted October 29, 2009 Author Share Posted October 29, 2009 awsome! you've been such a great help, now last thing so i dont bother you no more how do i export this to an earlier vertion of regular cad or to any other extension so i can work on my 3dmodel Quote Link to comment Share on other sites More sharing options...

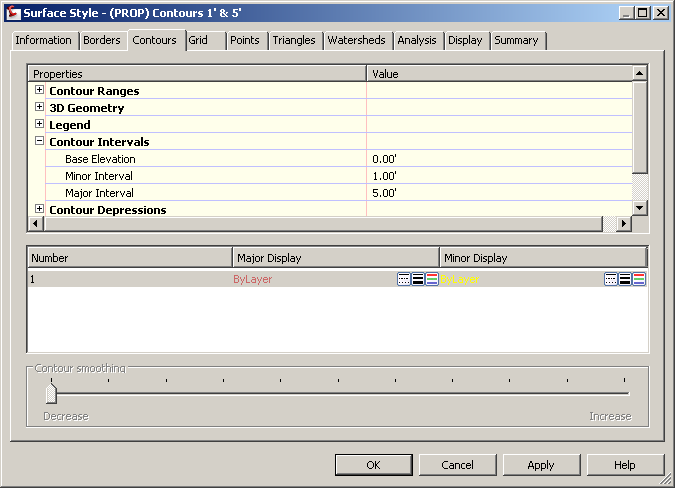

alanjt Posted October 29, 2009 Share Posted October 29, 2009 what about if i wanna add more contourlines, like lest say one each .5m Change the interval as displayed in the above image. Quote Link to comment Share on other sites More sharing options...

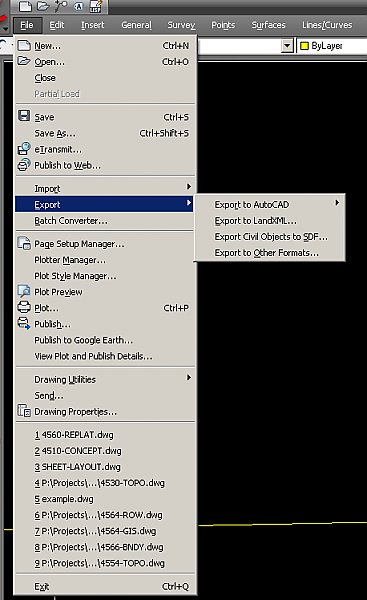

alanjt Posted October 29, 2009 Share Posted October 29, 2009 awsome! you've been such a great help, now last thing so i dont bother you no more how do i export this to an earlier vertion of regular cad or to any other extension so i can work on my 3dmodel Happy to help. Look at the export options. Quote Link to comment Share on other sites More sharing options...
eldiego18 Posted October 29, 2009 Author Share Posted October 29, 2009 thanks! i know that last question was pretty basic, just having a hard time finidng the comands in 2010 vertion. someone need to tell autodesk that we the users are oldschool Quote Link to comment Share on other sites More sharing options...
alanjt Posted October 29, 2009 Share Posted October 29, 2009 thanks! i know that last question was pretty basic, just having a hard time finidng the comands in 2010 vertion. someone need to tell autodesk that we the users are oldschool You'll get used to it. :wink: I always hate the new version and miss the previous, until I delve into it and find all the new goodies. Quote Link to comment Share on other sites More sharing options...
