Converting from AutoCAD to Microstation

Recommended Posts

Guest ryan

I am trying to convert dwgs from an AutoCAD 2000 to Microstation format. If you know how or have any sudgestions, please let me know. Thank you,

Share this post


Link to post
Share on other sites
Mr T

Probably 'save as' a lower version ie release 12 ?



Nick

Share this post


Link to post
Share on other sites
Guest robfowler

I don't know Microstation's capabilities but if it can import DXF files then you could do a "Save As" out of AutoCAD in DXF format and then import it into Microstation.



Rob.

Share this post


Link to post
Share on other sites
Guest robfowler

Beat me to it by 3 mins Nick - and that was only because I got shouted through the house to see a bit on the news!



Rob.

Share this post


Link to post
Share on other sites
Guest robfowler

That post is a brilliant link and the mirror material works great.



It's sure to get the AH kids some brownie points!



Thanks again for the link.



Rob.

Share this post


Link to post
Share on other sites
DEBRA

I get a lot of auto cad lite files and they will not open in Microstation. help

Share this post


Link to post
Share on other sites
SLW210

What types of files can you import? What version of Microstation?

Share this post


Link to post
Share on other sites
SLW210

What is the file extension?



We still need more information about the files.

Share this post


Link to post
Share on other sites
DEBRA

DGN and DWG are the only ones I know about

Share this post


Link to post
Share on other sites
DEBRA

I forgot to tell you the version of Micro Station 08.09.04.51 I think

Share this post


Link to post
Share on other sites
SLW210

That helps, but what are the file extensions on the files you are trying to open?

Share this post


Link to post
Share on other sites
DEBRA

Intellicad.dwg

Share this post


Link to post
Share on other sites
SLW210
Intellicad.dwg



Well even though it is a .dwg file if it is an intellicad .dwg i am not sure if it will open in Microstation. You might see if someone can open it in AutoCAD then save it.

Share this post


Link to post
Share on other sites
DEBRA

Thank you

So it sounds like I would be better off just when I ask for cad files I specify DGN format. But when I ask do I need to request that reference file be attached or is that only apply to Auto cad .DWG files?

Share this post


Link to post
Share on other sites
SLW210

AutoCAD can export to V8 and V7 DGN, if they are using Intellicad I have know idea what to tell you. You might try using .dxf, pretty sure Microstation can use that.

Share this post


Link to post
Share on other sites
envisioncad

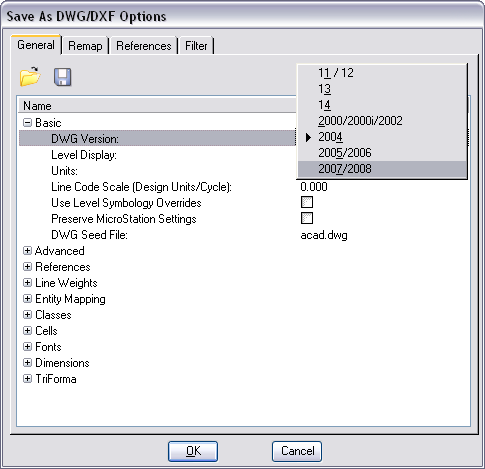

Debra, the version of MicroStation you are using XM 08.09.04.51 supports DXF and DWG 11-2008. The dwg file might be 2009 or later. MicroStation can reference DWG files but if you are having difficulty opening them you will have a problem referencing them.




HTH,

Bob Mecham

Share this post


Link to post
Share on other sites
DEBRA

Thank you I will request that next time and give it a try

Share this post


Link to post
Share on other sites
Fastdraft

I convert a lot of AutoCAD drawings to Microstation V8 or higher (if that is the version you are trying to use) and i always open the drawing in AutoCAD and save it out as AutoCAD 2000/LT2000 DWF (*.dxf) file, then I open Microstation and reference that .dwf file in, then I merge the .dwf into Microstation. After that it should be a microstation file, you might have to scale the file a little but it works great (usually have to scale by a factor of 12)

Share this post


Link to post
