I need help with timing belt dynamic simulation!

Recommended Posts

chemicalboy

hey guy I'm new to this forum,and I want urgent help please!!

I need to make a dynamic simulation for pulley/timing belt assembly.

I tried using "cylinder on plane" joint type but i cannot make the correct selection. any1 knows how to?

Share this post


Link to post
Share on other sites
chemicalboy

what I need to do is to make one pulley to drive the timing belt and the belt to drive the other pulley

Share this post


Link to post
Share on other sites
chemicalboy

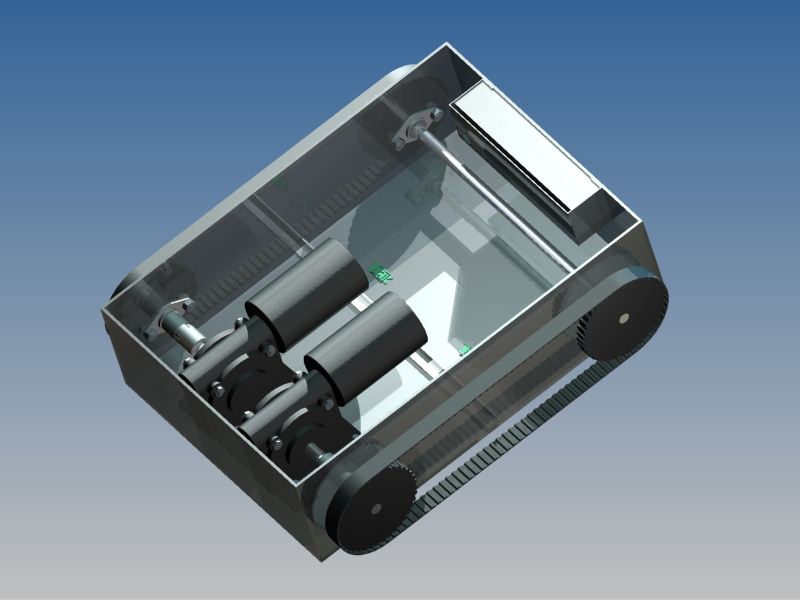

I can't upload here the file is too big..but i rendered a pic hoping it would help you figure


Share this post


Link to post
Share on other sites
shift1313

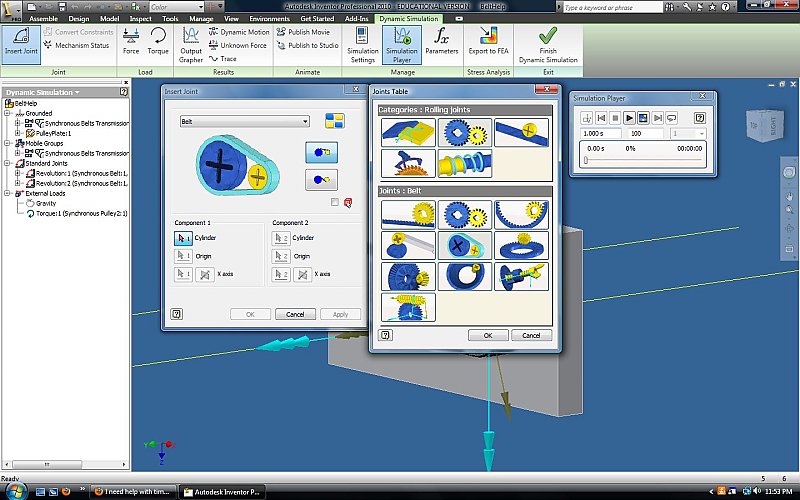

When you created the pully/belt setup, did you use the design synchronous belt feature?



regardless, when you are in dynamic simulation you need to insert a joint. There is a joint called "belt". It will let you select both pulleys. The standard origin of each part should be correct(i.e. no need to select anything for the origin). Just make sure the arrow hats are correct. They arent labeled x,y,z but there will be 1arrow, 2 arrows and 3. Once you insert this joint, and add your torque to one pulley, the other will move. Depending on how your pulley is connected to the shaft, you may need to insert a contact joint as well.


Share this post


Link to post
Share on other sites
chemicalboy

yea i use synchronus belt..and i did exactly what u told me..but it says the mechanism is over constrained by 1 degree..what is that from?

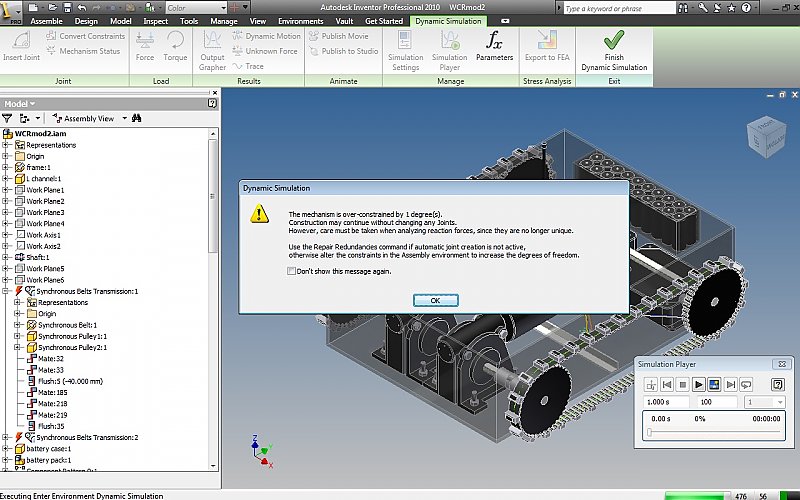

i attached a pic with the error here.


Share this post


Link to post
Share on other sites
shift1313

Either something is grounded or your assembly is rigid. You need to right click on your belt assembly, go to properties and make it Flexible. When you create a belt setup it automatically grounds the belt which is okay(i dont think you can "un-ground" it) but with a rigid assembly everything will be locked.

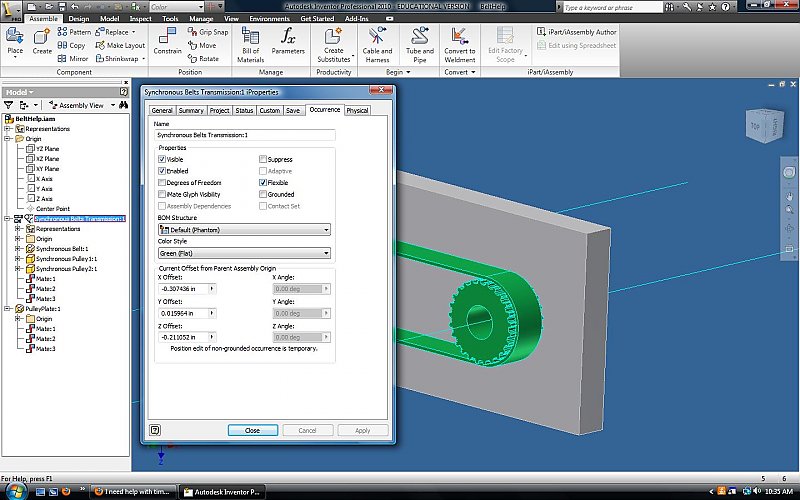

When you right click on your assembly and iProperties is selected. Go to the Occurrence tab. Here you will see flexible. Also note the icon in the feature tree to let you know this subassembly is flexible.


Share this post


Link to post
Share on other sites
chemicalboy

I made it flexible and it still has 1 more degree of freedom..here's a simplified model of my work if u can make it move..dude wat's the lightning sign beside the icon of the synchronous belt of mine?? I didn't find it in your assembly picture!!

assembly link:

mediafire.com/file/tnxmh1h2ugq/wcrmod3.rar

Share this post


Link to post
Share on other sites
shift1313

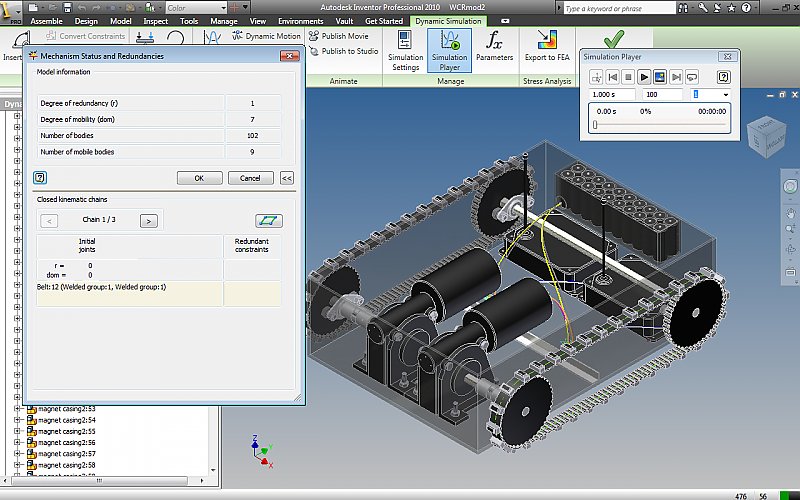

i cant get that site to load. Open your file in dynamic simulation and click on the Mechanism Status button and upload a screen shot of it.
