I need help with timing belt dynamic simulation!

Recommended Posts

chemicalboy

the belt moved successfully when i made it solid not detailed,but why doesnt the detailed one move??

Share this post


Link to post
Share on other sites
shift1313
the belt moved successfully when i made it solid not detailed,but why doesnt the detailed one move??





I dont think the belt actually moves, just the pulleys. It has to do with the teeth on the belt i believe.



It almost sounds like some post work putting a few gif's together might work in your case.



Here is one video from youtube.



http://www.youtube.com/watch?v=kJpN6pVEjrs



if you look closely at it, the belt and pulley are not actually moving together(out of time).

Share this post


Link to post
Share on other sites
JD Mather

Here is an example one of my students did (see very last one in this series).

http://home.pct.edu/~fahmat42/Portfolio.wmv

This is similar to how I would do it with the belt actually a series of individual parts as the fudge. The timing would be synchronized with the pulleys.

Share this post


Link to post
Share on other sites
chemicalboy

how did that video creator on youtube make that belt move along with the pulley?

Share this post


Link to post
Share on other sites
chemicalboy

amazing..where do i get that?

Share this post


Link to post
Share on other sites
chemicalboy

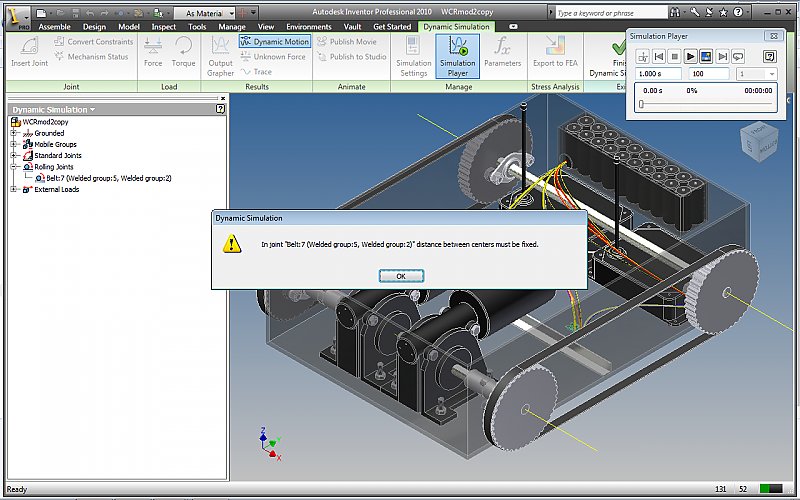

hey guys..I recreated the belt with solid look instead of detailed (i.e: no teeth visible) but the problem is that it keeps telling me that the distance between two pulleys must be fixed,and i double checked them and they were fixed!!
