automike Posted August 27, 2008 Share Posted August 27, 2008 hi im new to forum and need help please, im trying to extrude a frame made from 3 inch box section , i can use the push pull ok but when i try to extrude instead it has no top or bottom and is not solid any help would be appreciated , ill try to get a hand sketch posted so you get what im trying to do many thanks all mike Quote Link to comment Share on other sites More sharing options...
Tiger Posted August 27, 2008 Share Posted August 27, 2008 push pull? You using Sketch-up? The command Extrude creates a solid as far as I know and have used it.. Quote Link to comment Share on other sites More sharing options...
Cad64 Posted August 27, 2008 Share Posted August 27, 2008 That's because you're Extruding individual line segments. If you are going to Extrude then you have to use a closed Polyline if you want the Extrusion to be a Solid. The PressPull command works regardless of whether you have line segments or a closed Polyline. I have moved your question to the "3D Modeling & Rendering" area of the forum. Quote Link to comment Share on other sites More sharing options...
automike Posted August 27, 2008 Author Share Posted August 27, 2008 thanks for help can i send you a sketch of what im trying to do , i didnt explain very well Quote Link to comment Share on other sites More sharing options...
Cad64 Posted August 27, 2008 Share Posted August 27, 2008 You can post your sketch here in the forum. See HERE. Quote Link to comment Share on other sites More sharing options...
Hoozin Posted August 27, 2008 Share Posted August 27, 2008 http://home.pct.edu/~jmather/content/CAD238/AutoCAD_2007_Tutorials.htm Take a look at Tutorial 8. (Stolen from JD Mather's sig, I believe he's the writer for them.) Quote Link to comment Share on other sites More sharing options...
automike Posted August 27, 2008 Author Share Posted August 27, 2008 wow thats a graet link thanks so much do you have any other links , i am interested in box section frame work as i make trailers ans steel tube stands for oil storage tanks thanks again mike Quote Link to comment Share on other sites More sharing options...
ReMark Posted August 27, 2008 Share Posted August 27, 2008 You might want to check out the steel shape library offered by CAD Tools Online at http://www.cadtoolsonline.com/. Quote Link to comment Share on other sites More sharing options...

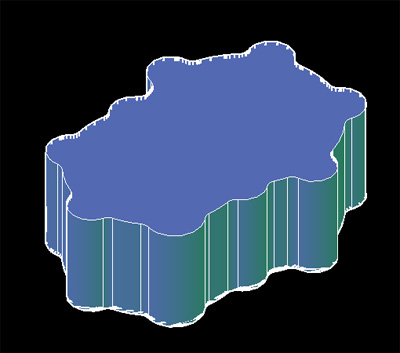

tottiekop Posted August 29, 2008 Share Posted August 29, 2008 Hi I'am trying to make this base plate a solid, it's a closed polyline but as soon as I have extruded it the result is not a 3d solid but it ends up with no top or bottom as if I have used line segments from the beginning? What am I missing Thanx drawing vir online help 2.dwg Quote Link to comment Share on other sites More sharing options...
ReMark Posted August 29, 2008 Share Posted August 29, 2008 It's possible that it is not an entirely closed polyline. How can you tell? Use the CONVTOSOLID command on it. One object is found. However, the command fails. The user is told "Cannot convert an open curve." There is a "gap" somewhere. Quote Link to comment Share on other sites More sharing options...
Cad64 Posted August 29, 2008 Share Posted August 29, 2008 Your Polyline is not closed. I just went through and made sure that all your arc endpoints were snapped together, endpoint to endpoint. Then Converted to Polyline and Joined all segments. Now when I Extrude, I get a Solid. Quote Link to comment Share on other sites More sharing options...
tottiekop Posted August 29, 2008 Share Posted August 29, 2008 Thanx for the quick response I see what you mean : Command: convtosolid Select objects: 1 found Select objects: Cannot convert an open curve. What i did was i took the base when it was all pieces of line segments and used the pedit command and then joined them to make it a polyline. Do you have any suggestions how to find that open curve?? Quote Link to comment Share on other sites More sharing options...
tottiekop Posted August 29, 2008 Share Posted August 29, 2008 your to quick for me..... I founded the problem, Thanx a mill. Have a good week-end Quote Link to comment Share on other sites More sharing options...
Cad64 Posted August 30, 2008 Share Posted August 30, 2008 Thread cleaned up and unnecessary posts deleted. Much better now. Quote Link to comment Share on other sites More sharing options...
automike Posted August 31, 2008 Author Share Posted August 31, 2008 hi first time post, im trying to extrude a 3 inch metal box section frame. my problem is ,first i draw a rectangle 8' by 4' then i polyline it then offset to inside by 3 inches, polyline again ,then set SE view then select all then extrude it by 3 inches then what happens is everything gets extruded including the space in the middle , please can anyone help , many thanks for any help given regards mike framejpeg.dwg Quote Link to comment Share on other sites More sharing options...
Tankman Posted August 31, 2008 Share Posted August 31, 2008 Welcome Automike, let's see what the knowledgeable forums members say! Be sure, best ACAD fourms on the www! Quote Link to comment Share on other sites More sharing options...
sparklerach Posted September 1, 2008 Share Posted September 1, 2008 You will need to 'Subract' the small extruded shape from the larger shape. Quote Link to comment Share on other sites More sharing options...
Strix Posted September 1, 2008 Share Posted September 1, 2008 automike, there are rules about not making duplicate threads on this forum, so please don't I've merged your two threads on this occasion Quote Link to comment Share on other sites More sharing options...
automike Posted September 1, 2008 Author Share Posted September 1, 2008 thanks for your help i am going to have to do a bit more reading on this as a lot of suggestions dont make sense to a me a newb , ive just joined the VTC website lots of video tutorials :wink: Quote Link to comment Share on other sites More sharing options...
automike Posted September 1, 2008 Author Share Posted September 1, 2008 sorted out extrude frame , what i did was ployline all of the frame then extrude all items by selecting all in a window this was the point where i went wrong because aswell as extruding frame it extruded the space within frame as as soilid , so what i did was extrude each individual frame member Quote Link to comment Share on other sites More sharing options...
