crissmant

Sorry guys, newbie question. I added several regions together using the "union" command. My question is, how do I remove a region after I have unioned it?



Thanks

Share this post


Link to post
Share on other sites
ReMark

How about Explode?

Share this post


Link to post
Share on other sites
crissmant

Ah, sorry if I was unclear about what I wanted.



I drew a basic floor plan and used the Boundary/Region/Extrude commands. After I extruded the walls, I unioned them all together to get rid of the seams at the various wall points.



Whenever I try to add a texture to a section of wall (living room for example), the entire wall section of the house changes to the same texture.



I'm trying to figure out how to not physically delete objects from a union, but to remove them from the grouping property of the union command.

Share this post


Link to post
Share on other sites
JD Mather

I can't believe ReMark suggested Explode to someone who doesn't know 3D inside and out (and if you did, you wouldn't use Explode).



You can use Imprint to separate faces for textures. Simply draw a rectangle (or other shape) on the face you want to split and then use the solidedit imprint command. (If the face isn't planar there is an extra step required of extruding first.)



Post a simple example if you can't figure it out.

Share this post


Link to post
Share on other sites
crissmant

I tried using the solidedit command but could not figure it out. I'll try and post the example pictures that I have.



The first pic is the general floor plan.

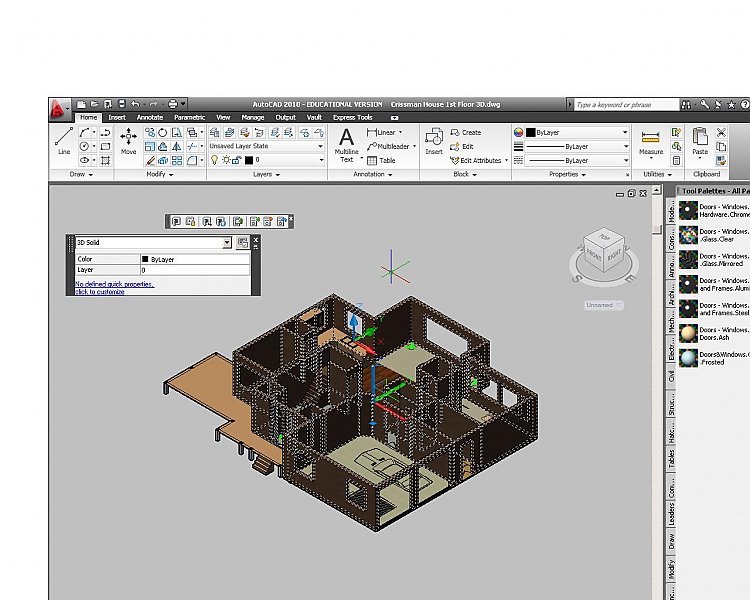

The second one is the obvious selection whenever I select any part of the wall.

Floorplan 1.jpg

Floorplan 2.jpg

Share this post


Link to post
Share on other sites
JD Mather

I am not familiar with editing pictures in AutoCAD - I meant post a dwg file (pared down if needed to file size limit).



In your pretty picture I do not see anything to imprint to split the faces. You might want to check Help on Imprint or go through the tutorials in my signature.



Actually looking at your picture again, unless you want to apply multiple textures to one face you should not need to use imprint to split the faces. You should be able to use the painter to apply to individual faces rather than the entire solid.

Share this post


Link to post
Share on other sites
crissmant

JD: Thanks for the input. However, since I am a novice at the program, I cannot seem to find the "painter" tool in the program. Would it be hidden under the Render or Draw tab in the ribbon somewhere?

Share this post


Link to post
Share on other sites
JD Mather
I cannot seem to find the "painter" tool in the program.



I am using the incorrect terminology - I seldom use AutoCAD anymore. Someone else will come along and set you in the right direction.

Share this post


Link to post
Share on other sites
ReMark

I suggested Explode because at first I thought the OP was working with simple 2D regions.

Share this post


Link to post
Share on other sites
ReMark

From your AutoCAD Help file:



Imprint



"Imprints 2D geometry on a 3D solid or surface, creating additional edges on planar faces."

Share this post


Link to post
Share on other sites
ReMark

JDM: Were you perhaps referring to the Color Faces command?

Share this post


Link to post
Share on other sites
ReMark

Command: IMPRINT



Select a 3D solid or surface: Select your solid; that would be your wall.

Select an object to imprint: This would be a retangle, for example, that you have drawn on your wall.

Delete the source object [Yes/No] : The default is "No". Not sure why. Maybe AutoCAD expects the user to repeat the command using the same object elsewhere.



At this point AutoCAD will "imprint" (think of it as "stamping") your wall with the shape of the rectangle.



Select an object to imprint: AutoCAD continues to repeat the command. Press Esc to cancel.



Now you can color a face or apply materials to two or more sections of one wall even if in your case that wall wraps the entire house inside and out.

Share this post


Link to post
Share on other sites
SPARKY77

You Could select the solid and the hold down ctrl and alt and select the wall and then go to properties and change the material to the required one and this should only change on the surface that you have selected

Share this post


Link to post
Share on other sites
ReMark

This is what you'll get if the object you are imprinting is not on the solid wall (where AutoCAD expects it to be).



Command: Imprint



Select a 3D solid or surface:

Select an object to imprint:

Modeling Operation Error:

No intersection edges.

The selected object must intersect the faces of the solid.

Select an object to imprint: *Cancel*

Share this post


Link to post
Share on other sites
JD Mather
JDM: Were you perhaps referring to the Color Faces command?



No - I assumed the OP was looking for something more sophisticated by applying material textures. I just switched over to 2011 and couldn't get it to work as I remembered or get Help to give me any help. :x

Share this post


Link to post
Share on other sites
JD Mather
I suggested Explode because at first I thought the OP was working with simple 2D regions.



I often get flack because I almost always request a file. My experience has taught me not to assume the OP is able to correctly describe the problem statement. It seems logical to me that since we are dealing with a geometric form of communication that it should be obvious to ALWAYS include a file.



I can't figure out what the purpose is of learning a CAD program to communicate and then ignoring the obvious - use the CAD file to communicate.

Share this post


Link to post
Share on other sites
ReMark

"I can't figure out what the purpose is of learning a CAD program to communicate and then ignoring the obvious - use the CAD file to communicate."



A point that cannot be made strongly enough. I agree wholeheartedly.

Share this post


Link to post
Share on other sites
ReMark

Re: Color faces. I was trying to make sense of the OP's reference to "painting" an object. I have no use for materials although I use the Color Faces command from time to time. It was the only thing I could think of.



I need to get out and start experimenting with applying materials.

Share this post


Link to post
Share on other sites
heavysan

I may be mistaken but I believe that if you hold down the control key when selecting a surface for material application, it will only do that surface. ie. As in only one face of a wall. See if that works

Share this post


Link to post
Share on other sites
primalscr33m

Im not sure if this seems too simplistic, but I would just copy the face of the wall I wanted and extrude the resulting face .1 mm, creating a new solid and apply the texture to that.

The original solid would be the skeleton, and all resulting faces copied and extruded would have the material properties I was after applied to them.

If I wanted two or three different textures per face I would just divide up the new face as required.



Is this too primitive a method?

Share this post


Link to post
Share on other sites
