Need Help with 3 things...

Recommended Posts

Mason Dixon

All I know how to do in 3d is make a 2d profile of an object and extrude it like this




Now I need to know how to make more complex shapes.



1. How should I go about making this shape?




2. I also need to know how to make a hole in the objects like this....


3. How do I make the concrete looking texture on all sides?



Thanks.

Share this post


Link to post
Share on other sites
SPARKY77

1) draw a polyline as you want the hand rail to go and then when you extrude the profile (use path and select the polyline)

2) if the hole goes all the way along the hand rail then draw the circle and extrude along the path and subtract frame the rail

if it only goes in so fare at the end of the rail then draw the cicle on the end surface and use the push pull command

3) not great with the materials perhaps some one else can help

Share this post


Link to post
Share on other sites
Mason Dixon

Thanks, do you know of a tutorial that uses polylines and paths to extrude profiles on? If not, I'm sorry but thats a bit over my head. If you could give me a few steps to take to make it I would really appreciate it.

Share this post


Link to post
Share on other sites
ReMark

In addition to Extrude there is also Press/Pull and Sweep not to mention the use of Polysolid.



A path can be something as simple as a line.



A circle...well that needs no explanation.



Knowing how to reorient the UCS is of prime importance when working in 3D.



If you draw the circle at the end of the line, in the proper orientation to the line, then invoke the Extrude command simply follow the prompts after that.

Share this post


Link to post
Share on other sites
ReMark

Example of Extrude command using Path option.

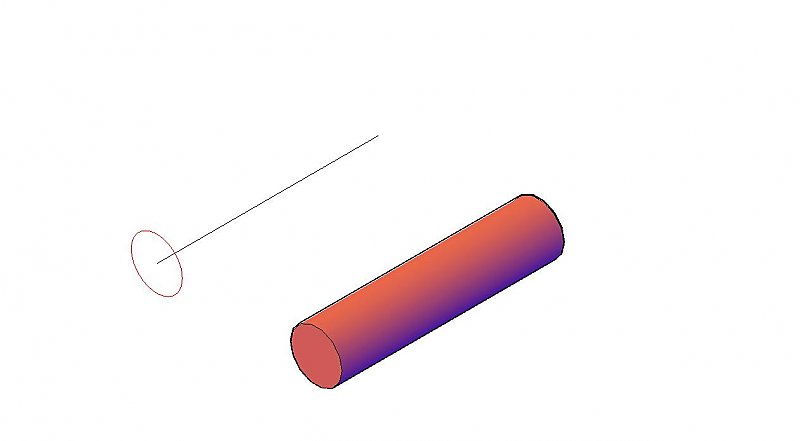

Circle (red) and our path (line in black) on left. Result in red on right.




Share this post


Link to post
Share on other sites
Mason Dixon

Thanks, just what I needed.

Share this post


Link to post
Share on other sites
Mason Dixon

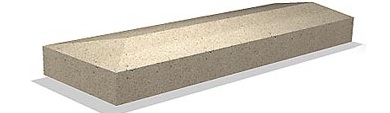

How can I make this shape with the hipped end.






Also, has anyone got any ideas on how I can make the sides look like concrete?

Share this post


Link to post
Share on other sites
ReMark

What is a "hipped" end?



The object can be made to look like concrete by applying a material to it, setting up your light source then rendering it.

Share this post


Link to post
Share on other sites
Mason Dixon

The hipped part is where it angles down on the left side. How is that created?

Share this post


Link to post
Share on other sites
ReMark

What image are you looking at?



You do realize that the image I posted is an isometric (SE orientation).

Share this post


Link to post
Share on other sites
Mason Dixon

Share this post


Link to post
Share on other sites
Mason Dixon

Do you guys usually draw in Front view instead of Top view?

Share this post


Link to post
Share on other sites
ReMark

I tend to start my drawings in plan view then move to an isometric view once I start extruding or using press/pull.

Share this post


Link to post
Share on other sites
ReMark
The hipped part is where it angles down on the left side. How is that created?



I'm not sure why I am having all this trouble seeing some of the images posted here but once again it appears to be the case. What is depicted in the image, a concrete wall?

Share this post


Link to post
Share on other sites
Mason Dixon

Its a profile typically used in handrail type stuff.



I guess all I need to know is, say I extruded a rectangle a couple feet, how would I take a wedge off the end so that the extruded rectangle tapered at the end?

Share this post


Link to post
Share on other sites
ReMark

I'd draw the rectangle from the side that shows the angled end and then either extrude it or use press/pull.

Share this post


Link to post
Share on other sites
Cad64

In order for everyone to be able to see your images, it would be best if you attach them here in the forum instead of through a file hosting site. Many companies block these types of sites, so by doing this, you are actually limiting the responses you might otherwise receive. Click the link in my signature to see how to attach images to your posts.

Share this post


Link to post
Share on other sites
ReMark

Here you go.



Tapered Wall.jpg

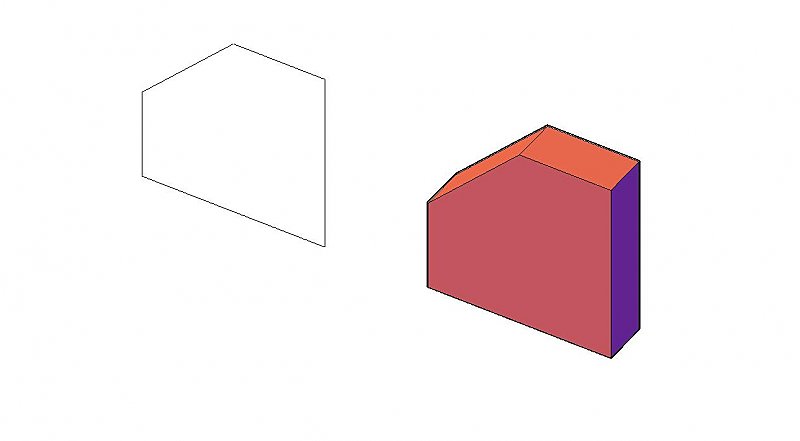

Wall in 2D on left (black). Wall in 3D on right (red). I turned it a bit so you get a better view. 2D drawn using lines. Wall converted into a solid using press/pull.



It helps to know how to manipulate the UCS.

Share this post


Link to post
Share on other sites
Mason Dixon




That is what I'm trying to replicate, so I don't think I can draw the side and extrude.

Share this post


Link to post
Share on other sites
