Another student with an "Oleson Village" Plat Map question.

Recommended Posts

Grip Grip

I have the project approximately 90% completed, but I'm a little confused about the intersection of SW Washington, SW Kensington Place, and SW Oleson Rd. Any chance I can send it to someone that's completed the project to determine if I've got it right. I could also just post up a screen shot.



Thanks,



Anthony

Share this post


Link to post
Share on other sites
ReMark

Post an image of the intersection(s) in question. There's at least two forum members, maybe even three, that can comment.

Share this post


Link to post
Share on other sites
Grip Grip

By the way, I learned a long time ago with Penn Foster that calling them for assistance was futile. I've completed all exams for my Industrial Engineering Technology degree, and the only thing keeping me from graduating is this project. :) I just wanted to let you guys know I'm no leach.

Share this post


Link to post
Share on other sites
Grip Grip

Here's one of the entire drawing:




Share this post


Link to post
Share on other sites
fuccaro

Posts approved, Grip Grip. Thank you for your patience!

Share this post


Link to post
Share on other sites
ReMark

Am I missing something here again? Why can't I see any images?



Oh, this is so frustrating.:x

Share this post


Link to post
Share on other sites
Tiger

The images are there - are you on IE again ReMark?

Share this post


Link to post
Share on other sites
ReMark
The images are there - are you on IE again ReMark?



Yes I am but not for long. I don't care what the IT department says I'm installing FireFox. This is just ridiculous. Hold on. As Arnold once said..."I'll be back!"

Share this post


Link to post
Share on other sites
Tiger

Watch out IT-people, ReMark is going rogue!! :shock:

Share this post


Link to post
Share on other sites
ReMark

Guess what? It didn't work! Still no images!!



What is going on here? I'm losing my mind. Oops. Scratch that. Been there...lost that.



There must be something else amiss. Must go on the prowl for source of problem.

Share this post


Link to post
Share on other sites
ReMark

I have not figured out my problem but perhaps this image will help the OP with his problem.

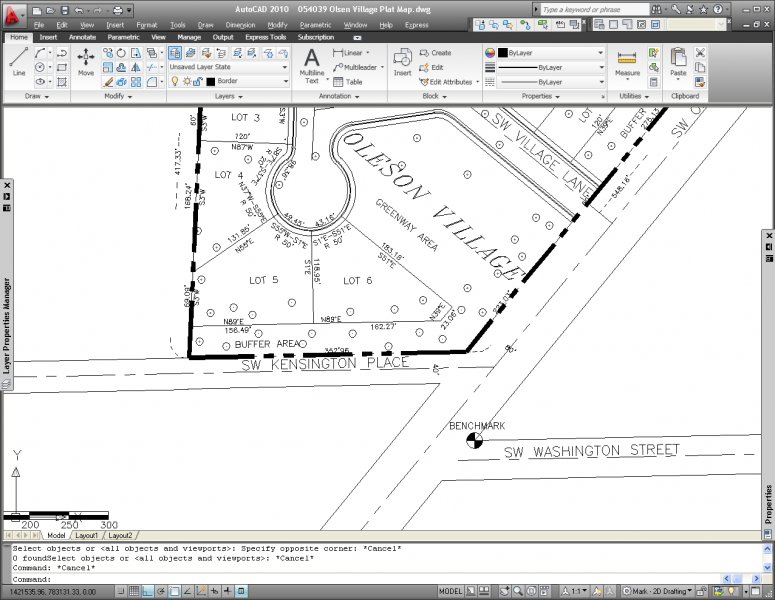

Oleson Village Roads.jpg

Share this post


Link to post
Share on other sites
ReMark

This is truely weird. I can clearly see the image I just posted above but still cannot see any of the images posted by the OP.

Share this post


Link to post
Share on other sites
Tiger

Lets see if you can see this?



[ATTACH]23354[/ATTACH]

Share this post


Link to post
Share on other sites
ReMark

Tiger, you have cured my blindness. I can see! I'm nominating you for Sainthood. Thanks.

Share this post


Link to post
Share on other sites
Tiger

hmm Holy Tiger - I see a new avatar coming up! :D

Share this post


Link to post
Share on other sites
Grip Grip
I have not figured out my problem but perhaps this image will help the OP with his problem.



[ATTACH]23353[/ATTACH]





Thank you very much! This has definitely cleared things up for me.

Share this post


Link to post
Share on other sites
cherax

Hello, i'm also working on that map, and am having trouble understanding what is meant by the following text: "All the roadways in the subdivision have sidewalks that are 6 feet wide. there's a 1-foot buffer between the right-of-way and the beginning of the sidewalk, and there's a 3-foot parking strip between the sidewalk and the curb." How should that be understood, edge of road/curb, then 1' buffer, then 3' of parking, then 6' of sidewalk? that would mean we need 4 lines, and in the examples seen above i see only three lines. I need help comprehending this text please.

Thanks!

Share this post


Link to post
Share on other sites
ReMark

You are on the right track. The right-of-way (street line to street line) is most likely 50 feet. From the street line to the back of walk is 1 foot. The sidewalk is 6 feet. The parking strip is probably a combination of 2.5 feet of grass and a 6 inch curb which would account for the 3 foot parking strip. Thus we would have 10 feet on each side of the road or a total of 20 feet used for purposes other than vehicular traffic. 50 feet minus 20 feet yields a paved roadway width of 30 feet which sounds just about right for most municipalities.



I would agree with you that there should be four lines not three. I can only surmise that the street line, the back of the walk, and the curb are being shown and the front edge of walk was left off for some unknown reason.

Share this post


Link to post
Share on other sites
