Grigs Posted May 3, 2011 Share Posted May 3, 2011 Someone came to me and asked if it was possible to draw a rectangle and have the x and y dimensions placed in the center along with a attribute. For example, you draw a 8'x10' rectangle and in the middle of it would be placed an editable attribute and right below it the X and Y dimensions of the rectangle. Is this doable? Quote Link to comment Share on other sites More sharing options...
SLW210 Posted May 3, 2011 Share Posted May 3, 2011 Yes it is possible. Hit F1 and type FIELDS in the search. Quote Link to comment Share on other sites More sharing options...
Grigs Posted May 3, 2011 Author Share Posted May 3, 2011 I figured it might have to do with fields. Just not sure which. There are alot I was able to get the perimeter but not the width and height Quote Link to comment Share on other sites More sharing options...
SLW210 Posted May 3, 2011 Share Posted May 3, 2011 I believe you want to use object. It will be easier if you use individual lines to make up the rectangle and use object and length. A dynamic block would be good to make a stretchable rectangle if needed and also keep everything in a neat package. If you use a continuous polyline for the rectangle it will give you the perimeter and you will need to do a little math to get the value for the sides. Quote Link to comment Share on other sites More sharing options...
Grigs Posted May 3, 2011 Author Share Posted May 3, 2011 Thanks. I tried it with just lines and it gets the correct values now. Just trying to package it into a nice, neat dynamic block. Quote Link to comment Share on other sites More sharing options...
BIGAL Posted May 4, 2011 Share Posted May 4, 2011 Do you need a dynamic block ? maybe a normal one of size 1x1 then scale x & Y is room size with attributes as fields = scale Quote Link to comment Share on other sites More sharing options...
SLW210 Posted May 4, 2011 Share Posted May 4, 2011 Do you need a dynamic block ? maybe a normal one of size 1x1 then scale x & Y is room size with attributes as fields = scale Good one BIGAL! I like that idea. Quote Link to comment Share on other sites More sharing options...
Grigs Posted May 4, 2011 Author Share Posted May 4, 2011 Where would one find the attributes as fields = scale? Quote Link to comment Share on other sites More sharing options...

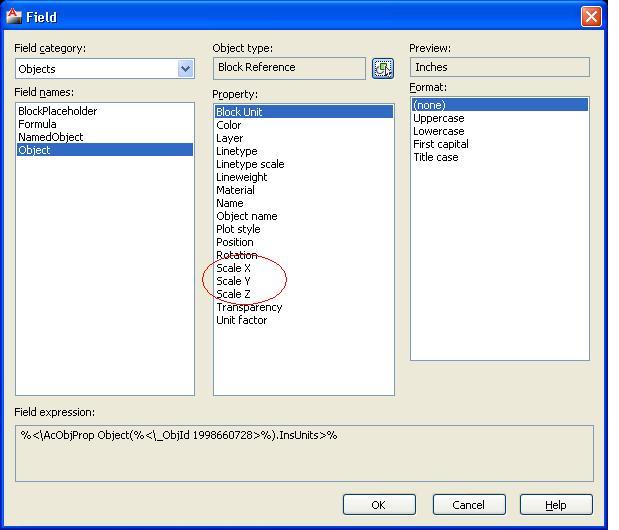

qball Posted May 4, 2011 Share Posted May 4, 2011 As shown on the attached Quote Link to comment Share on other sites More sharing options...
Grigs Posted May 4, 2011 Author Share Posted May 4, 2011 Ok, I got that. I had to make the square a block first before the Scale X, Y and Z showed up. What I did was create a 1x1 square and made it a block, I then used the mText command to add the X and Y Scale fields. This works. But, if I try to make those into a block and scale it, the fields don't change. I have to explode it first then it will update when scaled. Quote Link to comment Share on other sites More sharing options...
SLW210 Posted May 4, 2011 Share Posted May 4, 2011 Try using _UPDATEFIELD Quote Link to comment Share on other sites More sharing options...
qball Posted May 4, 2011 Share Posted May 4, 2011 Try making the text an Attribute Quote Link to comment Share on other sites More sharing options...
Grigs Posted May 4, 2011 Author Share Posted May 4, 2011 Tried both. If I make the square and text/attribute into a block, the fields do not update. I have to explode the block in order for the fields to change. Also, if I insert the block with a different X and Y scale and then goto explode it, the text reverts to single line text. But if I insert it with a uniform scale and explode it, it stays as mText. Quote Link to comment Share on other sites More sharing options...
SLW210 Posted May 4, 2011 Share Posted May 4, 2011 I think the simplest route is to make the dynamic block from individual lines or plines and use the length field. Quote Link to comment Share on other sites More sharing options...
qball Posted May 4, 2011 Share Posted May 4, 2011 scaling the 1x1 block seems complicated because you have to use the properties box and already know the x and y to scale. Because scale by reference scales uniformly, no? This might work (for rectangular rooms only) edit: no dynamic blocks in 2007 is there? roomtag.dwg Quote Link to comment Share on other sites More sharing options...
Grigs Posted May 4, 2011 Author Share Posted May 4, 2011 That works. Thanks Quote Link to comment Share on other sites More sharing options...
SLW210 Posted May 4, 2011 Share Posted May 4, 2011 scaling the 1x1 block seems complicated because you have to use the properties box and already know the x and y to scale. Because scale by reference scales uniformly, no? This might work (for rectangular rooms only) edit: no dynamic blocks in 2007 is there? FYI....I believe 2006 was first with dynamic blocks. Quote Link to comment Share on other sites More sharing options...
Grigs Posted May 4, 2011 Author Share Posted May 4, 2011 Yes. 2006 was the first version with dynamic blocks Quote Link to comment Share on other sites More sharing options...
Spinxy Posted May 6, 2011 Share Posted May 6, 2011 Hi qball, Can i ask how you made that roomtag file. i am trying to get my dynamic blocks to appear like this but can't (in an indivial file with dynamic properies). the closest i get is to make a dynamic block in a drawing, re-inserting it, then wblock to get it to it's own file. these however need exploding when inserting drawings. Thanks Quote Link to comment Share on other sites More sharing options...
qball Posted May 9, 2011 Share Posted May 9, 2011 open a new blank file, open Block Editor, make the block and save the file. If you're doing it within a drawing, the way you mentioned with Wblock is the only way I know. Quote Link to comment Share on other sites More sharing options...
