3D Pipe Elbow - Ellipse to Circle

Recommended Posts

ORBIMAT123

Hi,



I am trying to create a 3D elbow that is Ellipsed at one end and is circlular at the other. Im not sure how to go about making this and would be much apprecated for any help to do it !



I've attached and example of what im trying to make.



Thanks

Andy!




Share this post


Link to post
Share on other sites
ReMark

Elliptical or oblong?



Use the Loft command with the Path option. It should work.

Share this post


Link to post
Share on other sites
JD Mather

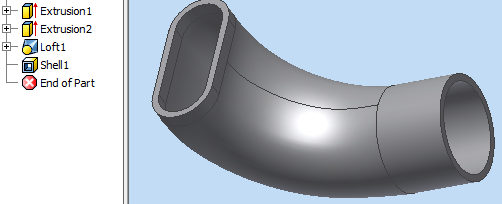

I would loft between a couple of extrusion using centerline guide curve, union and shell.


Share this post


Link to post
Share on other sites
ReMark

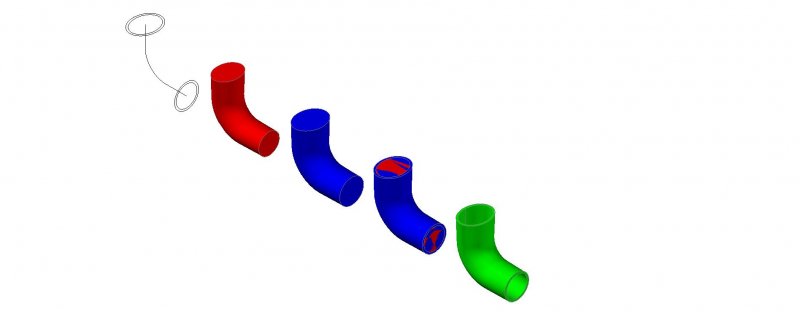

Down and dirty example. Linework at upper left end and finished elbow at lower right. Probably could have eliminated a couple of steps had I used the Region command.



Circle to elliptical elbow.jpg

Share this post


Link to post
Share on other sites
ReMark

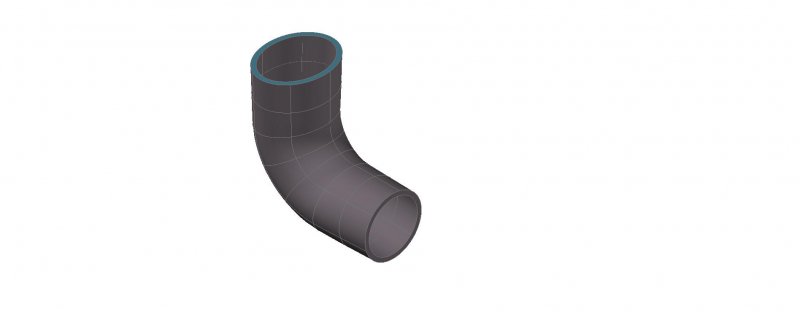

Using Region/Subtract first.



E to P.jpg

Share this post


Link to post
Share on other sites
ORBIMAT123

hi guys!



Thanks for helping me with this! sorry for taking so long to reply im just back at work.



the loft tool worked great!



thanks again!

Andy
