Offset rectangle into separate lines ?

Recommended Posts

BrianTFC

Hi ALL,



You know how when you offset a rectangle it it stay as a polyline? i need a lisp routine that i can use to offset the rectangle, set the new lines to current layer, and substract the offset distance from both end of the line. i know thats asking alot but has anyone seen a routine like this?



Thanks,

Brian

:?

Share this post


Link to post
Share on other sites
ReMark

Explode then Offset.

Share this post


Link to post
Share on other sites
DANIEL
Explode then Offset.



he's looking for something a bit more than that dude lol.

Share this post


Link to post
Share on other sites
ReMark

Yeah, it would probably be too tough to create a macro that would do that. Forget I suggested it.

Share this post


Link to post
Share on other sites
BlackBox

I wonder what the OP could accomplish if they spent the same time learning how to do some of this themselves, instead of posting duplicate threads. Just saying :thumbsup:.

Share this post


Link to post
Share on other sites
rkent
Hi ALL,



You know how when you offset a rectangle it it stay as a polyline? i need a lisp routine that i can use to offset the rectangle, set the new lines to current layer, and substract the offset distance from both end of the line. i know thats asking alot but has anyone seen a routine like this?



Thanks,

Brian

:?



If you are trying to automate drawing a steel beam you might look at....

http://www.draftsperson.net/index.php?title=Wisey's_Steel_Shapes_LISP_program



If not, tell us what you are trying to draw, maybe a lisp already exists.

Share this post


Link to post
Share on other sites
BIGAL

Basic lisp pick two pts look up help about the polar command not very hard



(setq pt1 (getpoint))
(setq pt2 (getpoint))
(setq offs (getreal))
(setq x1 (car pt1))
(setq y1 (cadr pt1))

now look up polar, distance (hint x1-x2, y1-y2)
work out the 8 points.

Share this post


Link to post
Share on other sites
David Bethel

It's actually a fairly involved process:



[b][color=BLACK]([/color][/b]defun c:offlin [b][color=FUCHSIA]([/color][/b]/ fs fe fd el cf le en ed pl fl mp hd l10 l11[b][color=FUCHSIA])[/color][/b]
 [b][color=FUCHSIA]([/color][/b]defun mid_pt [b][color=NAVY]([/color][/b]s e[b][color=NAVY])[/color][/b]
    [b][color=NAVY]([/color][/b]mapcar '[b][color=MAROON]([/color][/b]lambda [b][color=GREEN]([/color][/b]a b[b][color=GREEN])[/color][/b] [b][color=GREEN]([/color][/b]* [b][color=BLUE]([/color][/b]+ a b[b][color=BLUE])[/color][/b] 0.5[b][color=GREEN])[/color][/b][b][color=MAROON])[/color][/b] s e[b][color=NAVY])[/color][/b][b][color=FUCHSIA])[/color][/b]

 [b][color=FUCHSIA]([/color][/b]if [b][color=NAVY]([/color][/b]and [b][color=MAROON]([/color][/b]princ [color=#2f4f4f]"\nSelect PLINE To Offset"[/color][b][color=MAROON])[/color][/b]
          [b][color=MAROON]([/color][/b]setq fs [b][color=GREEN]([/color][/b]ssget '[b][color=BLUE]([/color][/b][b][color=RED]([/color][/b]0 . [color=#2f4f4f]"LWPOLYLINE"[/color][b][color=RED])[/color][/b][b][color=BLUE])[/color][/b][b][color=GREEN])[/color][/b][b][color=MAROON])[/color][/b]
          [b][color=MAROON]([/color][/b]= [b][color=GREEN]([/color][/b]sslength fs[b][color=GREEN])[/color][/b] 1[b][color=MAROON])[/color][/b]
          [b][color=MAROON]([/color][/b]setq fe [b][color=GREEN]([/color][/b]ssname fs 0[b][color=GREEN])[/color][/b]
                fd [b][color=GREEN]([/color][/b]entget fe[b][color=GREEN])[/color][/b]
                el [b][color=GREEN]([/color][/b]cdr [b][color=BLUE]([/color][/b]assoc 38 fd[b][color=BLUE])[/color][/b][b][color=GREEN])[/color][/b]
                cf [b][color=GREEN]([/color][/b]if [b][color=BLUE]([/color][/b]= [b][color=RED]([/color][/b]logand [b][color=PURPLE]([/color][/b]cdr [b][color=TEAL]([/color][/b]assoc 70 fd[b][color=TEAL])[/color][/b][b][color=PURPLE])[/color][/b] 1[b][color=RED])[/color][/b] 1[b][color=BLUE])[/color][/b] T nil[b][color=GREEN])[/color][/b]
                le [b][color=GREEN]([/color][/b]entlast[b][color=GREEN])[/color][/b][b][color=MAROON])[/color][/b][b][color=NAVY])[/color][/b]
     [b][color=NAVY]([/color][/b]progn
       [b][color=MAROON]([/color][/b]while [b][color=GREEN]([/color][/b]eq le [b][color=BLUE]([/color][/b]entlast[b][color=BLUE])[/color][/b][b][color=GREEN])[/color][/b]
              [b][color=GREEN]([/color][/b]command [color=#2f4f4f]"_.CMDECHO"[/color] 1
                       [color=#2f4f4f]"_.OFFSET"[/color] pause fe pause[b][color=GREEN])[/color][/b]
              [b][color=GREEN]([/color][/b]if [b][color=BLUE]([/color][/b]not [b][color=RED]([/color][/b]eq le [b][color=PURPLE]([/color][/b]entlast[b][color=PURPLE])[/color][/b][b][color=RED])[/color][/b][b][color=BLUE])[/color][/b]
                  [b][color=BLUE]([/color][/b]command[b][color=BLUE])[/color][/b][b][color=GREEN])[/color][/b]
              [b][color=GREEN]([/color][/b]command [color=#2f4f4f]"_.CMDECHO"[/color] 0[b][color=GREEN])[/color][/b][b][color=MAROON])[/color][/b]
       [b][color=MAROON]([/color][/b]setq en [b][color=GREEN]([/color][/b]entlast[b][color=GREEN])[/color][/b]
             ed [b][color=GREEN]([/color][/b]entget en[b][color=GREEN])[/color][/b][b][color=MAROON])[/color][/b]
       [b][color=MAROON]([/color][/b]entdel en[b][color=MAROON])[/color][/b]
       [b][color=MAROON]([/color][/b]foreach p ed
         [b][color=GREEN]([/color][/b]if [b][color=BLUE]([/color][/b]= 10 [b][color=RED]([/color][/b]car p[b][color=RED])[/color][/b][b][color=BLUE])[/color][/b]
             [b][color=BLUE]([/color][/b]setq pl [b][color=RED]([/color][/b]cons [b][color=PURPLE]([/color][/b]cdr p[b][color=PURPLE])[/color][/b] pl[b][color=RED])[/color][/b][b][color=BLUE])[/color][/b][b][color=GREEN])[/color][/b][b][color=MAROON])[/color][/b]
       [b][color=MAROON]([/color][/b]foreach p fd
         [b][color=GREEN]([/color][/b]if [b][color=BLUE]([/color][/b]= 10 [b][color=RED]([/color][/b]car p[b][color=RED])[/color][/b][b][color=BLUE])[/color][/b]
             [b][color=BLUE]([/color][/b]setq fl [b][color=RED]([/color][/b]cons [b][color=PURPLE]([/color][/b]cdr p[b][color=PURPLE])[/color][/b] fl[b][color=RED])[/color][/b][b][color=BLUE])[/color][/b][b][color=GREEN])[/color][/b][b][color=MAROON])[/color][/b]
       [b][color=MAROON]([/color][/b]and cf [b][color=GREEN]([/color][/b]setq pl [b][color=BLUE]([/color][/b]cons [b][color=RED]([/color][/b]last pl[b][color=RED])[/color][/b] pl[b][color=BLUE])[/color][/b]
                     fl [b][color=BLUE]([/color][/b]cons [b][color=RED]([/color][/b]last fl[b][color=RED])[/color][/b] fl[b][color=BLUE])[/color][/b][b][color=GREEN])[/color][/b][b][color=MAROON])[/color][/b]
       [b][color=MAROON]([/color][/b]if [b][color=GREEN]([/color][/b]= [b][color=BLUE]([/color][/b]length pl[b][color=BLUE])[/color][/b] [b][color=BLUE]([/color][/b]length fl[b][color=BLUE])[/color][/b][b][color=GREEN])[/color][/b]
           [b][color=GREEN]([/color][/b]progn
             [b][color=BLUE]([/color][/b]while [b][color=RED]([/color][/b]> [b][color=PURPLE]([/color][/b]length pl[b][color=PURPLE])[/color][/b] 1[b][color=RED])[/color][/b]
                    [b][color=RED]([/color][/b]setq mp [b][color=PURPLE]([/color][/b]mid_pt [b][color=TEAL]([/color][/b]car pl[b][color=TEAL])[/color][/b] [b][color=TEAL]([/color][/b]cadr pl[b][color=TEAL])[/color][/b][b][color=PURPLE])[/color][/b]
                          hd [b][color=PURPLE]([/color][/b]* [b][color=TEAL]([/color][/b]distance [b][color=OLIVE]([/color][/b]car fl[b][color=OLIVE])[/color][/b] [b][color=OLIVE]([/color][/b]cadr fl[b][color=OLIVE])[/color][/b][b][color=TEAL])[/color][/b] 0.5[b][color=PURPLE])[/color][/b]
                         l10 [b][color=PURPLE]([/color][/b]polar mp [b][color=TEAL]([/color][/b]angle [b][color=OLIVE]([/color][/b]car pl[b][color=OLIVE])[/color][/b] [b][color=OLIVE]([/color][/b]cadr pl[b][color=OLIVE])[/color][/b][b][color=TEAL])[/color][/b] hd[b][color=PURPLE])[/color][/b]
                         l11 [b][color=PURPLE]([/color][/b]polar mp [b][color=TEAL]([/color][/b]angle [b][color=OLIVE]([/color][/b]cadr pl[b][color=OLIVE])[/color][/b] [b][color=OLIVE]([/color][/b]car pl[b][color=OLIVE])[/color][/b][b][color=TEAL])[/color][/b] hd[b][color=PURPLE])[/color][/b][b][color=RED])[/color][/b]
                    [b][color=RED]([/color][/b]entmake [b][color=PURPLE]([/color][/b]list [b][color=TEAL]([/color][/b]cons 0 [color=#2f4f4f]"LINE"[/color][b][color=TEAL])[/color][/b]
                                   [b][color=TEAL]([/color][/b]cons 10 [b][color=OLIVE]([/color][/b]append l10 [b][color=GRAY]([/color][/b]list el[b][color=GRAY])[/color][/b][b][color=OLIVE])[/color][/b][b][color=TEAL])[/color][/b]
                                   [b][color=TEAL]([/color][/b]cons 11 [b][color=OLIVE]([/color][/b]append l11 [b][color=GRAY]([/color][/b]list el[b][color=GRAY])[/color][/b][b][color=OLIVE])[/color][/b][b][color=TEAL])[/color][/b][b][color=PURPLE])[/color][/b][b][color=RED])[/color][/b]
                    [b][color=RED]([/color][/b]setq pl [b][color=PURPLE]([/color][/b]cdr pl[b][color=PURPLE])[/color][/b]
                          fl [b][color=PURPLE]([/color][/b]cdr fl[b][color=PURPLE])[/color][/b][b][color=RED])[/color][/b][b][color=BLUE])[/color][/b][b][color=GREEN])[/color][/b][b][color=MAROON])[/color][/b][b][color=NAVY])[/color][/b][b][color=FUCHSIA])[/color][/b]
 [b][color=FUCHSIA]([/color][/b]prin1[b][color=FUCHSIA])[/color][/b][b][color=BLACK])[/color][/b]





error trapping with OFFSET type commands are NOT always accurate.



This makes the line segments the same length as original PLINE regardless if the offset side is to the inside or outside.



Have fun! -David

Edited by David Bethel

Share this post


Link to post
Share on other sites
jsowinski

Hi-

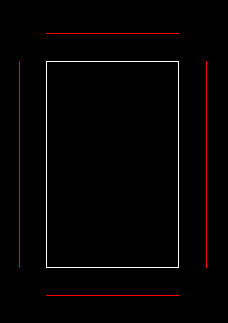

This is what I thought of from reading your post. (see picture below) Let me know if I misunderstood you.





Offset Rectangle.jpg



This will work on rectangles only. They can be horizontal or rotated.

You need to enter an offset distance and select a rectangle. The routine stays open to allow you to select more than one rectangle. I hope that helps.





(defun c:offsetpline (/ CurLayer OffsetDist VlaObj sset num Ang Ptdist StartPt EndPt)
(vl-load-com)

(defun *error* (msg)
(princ)
); _end defun

(setq CurLayer (getvar "clayer"))
(setq OffsetDist (getreal "\nEnter an offset distance: "))

(while (setq VlaObj (vlax-ename->vla-object (car (entsel "Select a Rectangle: "))))
(setq Startpt (vlax-curve-getPointAtParam VlaObj 1))
(setq Ang (+ (angle (vlax-curve-getStartPoint VlaObj)(vlax-curve-getPointAtParam VlaObj 1))(* (/ pi 180) 90)))
(setq PtDist (distance Startpt (vlax-curve-getPointAtParam VlaObj 2)))

(if (equal (polar Startpt Ang PtDist)(vlax-curve-getPointAtParam VlaObj 2) 1.0)
 (vl-catch-all-apply 'vlax-invoke-method (list VlaObj 'Offset OffsetDist))
 (vl-catch-all-apply 'vlax-invoke-method (list VlaObj 'Offset (- OffsetDist)))
); _end if

(setq VlaObj (vlax-ename->vla-object (entlast)))
(vl-catch-all-apply 'vlax-put (list VlaObj 'Layer CurLayer))
(vl-cmdf "explode" (entlast) "")
(setq sset (ssget "_P"))
(setq num -1)

(repeat (sslength sset)
 (setq VlaObj (vlax-ename->vla-object (ssname sset (setq num (1+ num)))))
 (setq StartPt (polar (vlax-get VlaObj 'StartPoint)(vlax-get VlaObj 'Angle) OffsetDist))
 (vl-catch-all-apply 'vlax-put (list VlaObj 'StartPoint StartPt))
 (setq EndPt (polar (vlax-get VlaObj 'EndPoint)(- (vlax-get VlaObj 'Angle) pi) OffsetDist))
 (vl-catch-all-apply 'vlax-put (list VlaObj 'EndPoint EndPt))
); _end repeat
); _end while

(princ)
); _end defun

Edited by SLW210
code tags!!!!

Share this post


Link to post
Share on other sites
BrianTFC

That works great thank you for your help.

Share this post


Link to post
Share on other sites
jsowinski

You're welcome.



I did notice a couple of things that I missed when I posted the code.



The first thing is to update this line:

(vl-cmdf "explode" (entlast) [color=red]""[/color])



You shouldn't need the quote marks at the end of the line. Just delete them. Let me know if that doesn't work for you.



The other thing you could do is add *error* to the local variables

(/ [color=red]*error*[/color] CurLayer OffsetDist VlaObj sset num Ang Ptdist StartPt EndPt)



Otherwise I hope that works for you.

Edited by SLW210
CODE TAGS!!!

Share this post


Link to post
Share on other sites
DANIEL

might want to read up on the code posting guidlines jsowinski

Share this post


Link to post
Share on other sites
jsowinski

Thanks for letting me know.

Share this post


Link to post
Share on other sites
BrianTFC

that worked the only thing i was wondering is can we explode the rectangle after it offsets?

Share this post


Link to post
Share on other sites
Lee Mac

Quick one:



(defun c:MyOffset ( / ent obj )
   (if
       (setq *dist*
           (cond
               (   (getdist
                       (strcat "\nSpecify Offset Distance"
                           (if *dist* (strcat " <" (rtos *dist*) ">: ") ": ")
                       )
                   )
               )
               (   *dist*   )
           )
       )
       (while
           (progn (setvar 'ERRNO 0) (setq ent (car (entsel "\nSelect LWPolyline: ")))
               (cond
                   (   (= 7 (getvar 'ERRNO))
                       (princ "\nMissed, try again.")
                   )
                   (   (eq 'ENAME (type ent))
                       (cond
                           (   (= 4 (logand 4 (cdr (assoc 70 (tblsearch "LAYER" (cdr (assoc 8 (entget ent))))))))
                               (princ "\nObject is on Locked Layer.")
                           )
                           (   (eq "LWPOLYLINE" (cdr (assoc 0 (entget ent))))
                               (foreach obj (vlax-invoke (setq obj (vlax-ename->vla-object ent)) 'explode)
                                   (vla-offset obj *dist*)
                               )
                               (vla-delete obj)
                               t
                           )
                           (   (princ "\nObject is not an LWPolyline.")   )
                       )
                   )
               )
           )
       )
   )
   (princ)
)
(vl-load-com) (princ)

Share this post


Link to post
Share on other sites
BrianTFC

Thanks, Lee

Share this post


Link to post
Share on other sites
Lee Mac

No worries, it should work for all LWPolylines, even those with Arc segments.

Share this post


Link to post
Share on other sites
BrianTFC

I need some help, this routine was written by jsowinski i've added a a line to change the layer of rectangle and explode it but it leaves the original rectangle underneath the line new lines. i need the original rectangle to be exploded. any help would be appreciated.




(defun c:Offsetpline (/ *error* OffsetDist VlaObj sset num Ang Ptdist StartPt EndPt)
(vl-load-com)
(defun *error* (msg)
(princ)
); _end defun
(setq OffsetDist (getreal "\nEnter an offset distance: "))
(while (setq VlaObj (vlax-ename->vla-object (car (entsel "Select a Rectangle: "))))
(setq Startpt (vlax-curve-getPointAtParam VlaObj 1))
(setq Ang (+ (angle (vlax-curve-getStartPoint VlaObj)(vlax-curve-getPointAtParam VlaObj 1))(* (/ pi 180) 90)))
(setq PtDist (distance Startpt (vlax-curve-getPointAtParam VlaObj 2)))
(vlax-put-property vlaobj 'layer "Router - Green-V groove")
(vl-catch-all-apply 'vlax-invoke-method (list VlaObj 'explode))

(if (equal (polar Startpt Ang PtDist)(vlax-curve-getPointAtParam VlaObj 2) 1.0)
(vl-catch-all-apply 'vlax-invoke-method (list VlaObj 'Offset OffsetDist))
(vl-catch-all-apply 'vlax-invoke-method (list VlaObj 'Offset (- OffsetDist)))
); _end if

(setq VlaObj (vlax-ename->vla-object (entlast)))
(vl-catch-all-apply 'vlax-put (list VlaObj 'Layer "Router - Blue - Cuts"))
(vl-cmdf "explode" (entlast))
(setq sset (ssget "_P"))
(setq num -1)
(repeat (sslength sset)
(setq VlaObj (vlax-ename->vla-object (ssname sset (setq num (1+ num)))))
(setq StartPt (polar (vlax-get VlaObj 'StartPoint)(vlax-get VlaObj 'Angle) OffsetDist))
(vl-catch-all-apply 'vlax-put (list VlaObj 'StartPoint StartPt))
(setq EndPt (polar (vlax-get VlaObj 'EndPoint)(- (vlax-get VlaObj 'Angle) pi) OffsetDist))
(vl-catch-all-apply 'vlax-put (list VlaObj 'EndPoint EndPt))
); _end repeat
); _end while
(princ)
); _end defun

Share this post


Link to post
Share on other sites
