Rienei Posted June 7, 2012 Share Posted June 7, 2012 I have a really curvy sculpture. How do I draw the dimensions of the elevation for it? I have attached a picture of my drawing. I was told to do gidelines and show the dimension of them. However I find it not very accurate for the contractors to read. Any advice would be appreciated. Thanks in advance:D Quote Link to comment Share on other sites More sharing options...
MSasu Posted June 7, 2012 Share Posted June 7, 2012 Maybe Ordinate dimensions? Quote Link to comment Share on other sites More sharing options...
Dadgad Posted June 7, 2012 Share Posted June 7, 2012 I agree Mircea, that certainly looks like a good job for ordinate dimensions to me, and pretty much of a nightmare with any other kind of dimension. Quote Link to comment Share on other sites More sharing options...
eldon Posted June 7, 2012 Share Posted June 7, 2012 Perhaps provide a full size template You may get contractors who are unfamiliar with coordinates. Quote Link to comment Share on other sites More sharing options...
ReMark Posted June 7, 2012 Share Posted June 7, 2012 (edited) Can we see the sculpture in 3D please? There has to be more to it than that. Is this the final form it will take? Edited June 7, 2012 by ReMark Quote Link to comment Share on other sites More sharing options...

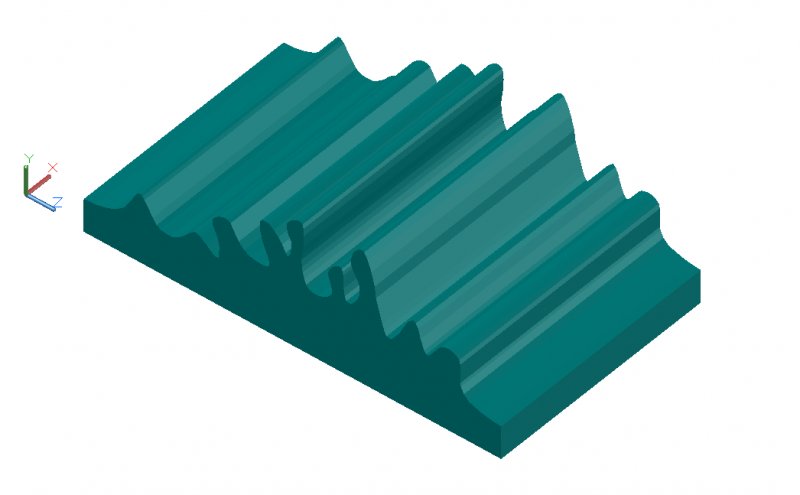

ReMark Posted June 7, 2012 Share Posted June 7, 2012 Or maybe something like this: Quote Link to comment Share on other sites More sharing options...
ReMark Posted June 7, 2012 Share Posted June 7, 2012 Re: Dimensioning. What is the spacing on your grid equal to? 6"? 12"? Other? Quote Link to comment Share on other sites More sharing options...
JD Mather Posted June 7, 2012 Share Posted June 7, 2012 For artistic stuff you need to make a model or scaled model. You might search for information on how past projects like this have been done. I think there is lots of information on Mt Rushmore. For smaller manufactured artistic designs a model is made for casting or tracer reproduction. In other cases the manufacturing CNC code is generated directly from the CAD model. The only dimensions given are overall envelope size and maybe a few critical locations and mounting holes. Quote Link to comment Share on other sites More sharing options...

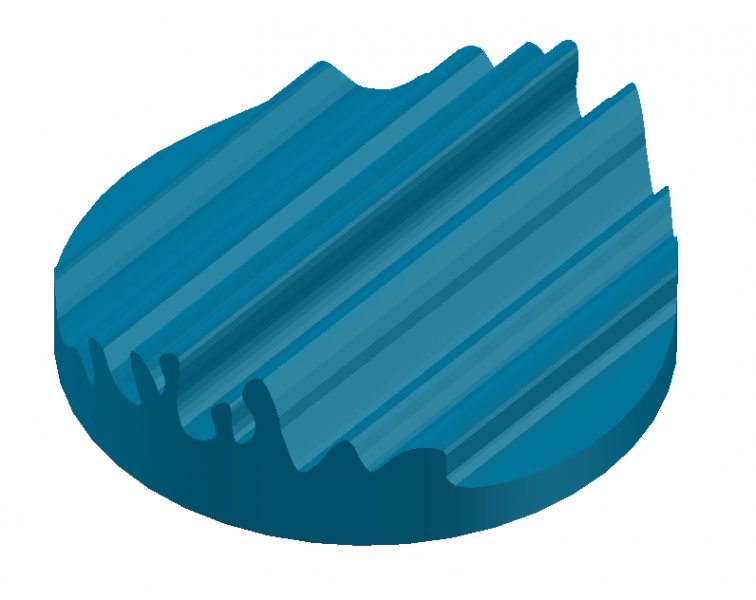

Rienei Posted June 8, 2012 Author Share Posted June 8, 2012 Hi, sorry for the late reply. @remark : the sculpture is just a basic piece just like the first picture you have provided. Thanks for all the replies i will look into how i would do ordinate dimensions Quote Link to comment Share on other sites More sharing options...
eldon Posted June 8, 2012 Share Posted June 8, 2012 Ordinate dimensions give either an X coordinate or a Y coordinate. Perhaps you could use Fields to give an x.y coordinate Quote Link to comment Share on other sites More sharing options...
ReMark Posted June 8, 2012 Share Posted June 8, 2012 You never told us the grid settings. Quote Link to comment Share on other sites More sharing options...
JD Mather Posted June 8, 2012 Share Posted June 8, 2012 What is the size? Plot a template for creation. You will never have enough dimensions. Quote Link to comment Share on other sites More sharing options...
