2112tinytim

Trying to finish my last drafting project in the basic drafting course (non-autocad drafting), but having trouble understanding the dimensions of one part. The dimensions are for a hole and show on the drawing as:

M18 X0.6-6H

(Depth symbol) 26.88

(Counterbore symble) M10 X 0.6-6h

(Depth symbol) 4.19



Is this a counterbored hole with an 18mm diameter depth of 26.88 and a counterbore diameter of 28mm with a 4.19mm depth?



Any help appreciated

Share this post


Link to post
Share on other sites
ReMark

Penn-Foster has a manual (i.e. - board) drafting course?

Share this post


Link to post
Share on other sites
2112tinytim

Yes. Its in the electronics technology course.

Share this post


Link to post
Share on other sites
SLW210

I don't understand the info for the counterbore symbol M10 x 0.6-6H is a different bolt than M18 x 0.6-6H.



M18 x 0.6-6H is the bolt size, you should have a chart for the drill size and counterbore sizes.



Is the hole to be tapped? Seems odd to have a depth on a non-tapped hole.

Share this post


Link to post
Share on other sites
2112tinytim

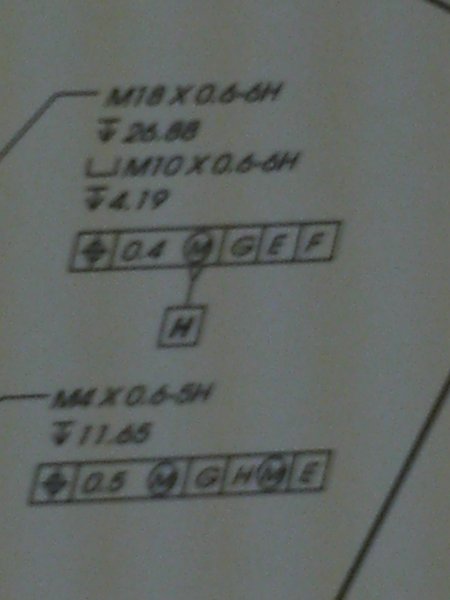

2012-06-21 09.26.02.jpg

These are the dimensions are displayed in my book. I can't make heads or tails of what this should look like.
