How to Change Leader Line Thickness

Recommended Posts

bachrock

I'm wondering how to change the thickness of leader lines. I'm editing a drawing done by someone else and I need to make the leader lines thicker. I tried changing the layer thickness and making sure the settings were such that the leader line thickness would be determined by the layer. I also tried channging the leader line thickness in properties and/or leader styles, but no luck there either. Anyone know what might be going on?

Edited by bachrock
typos

Share this post


Link to post
Share on other sites
Dadgad

Leader lines are part of the DIMENSION style.



In order for them to have displayed as shown I have turned on SHOW LINEWEIGHTS, the better to understand what is happening. :)

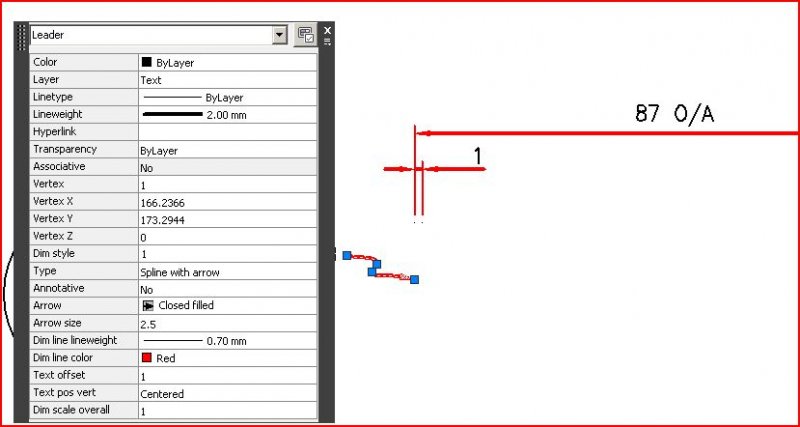

sticky wicket.jpg

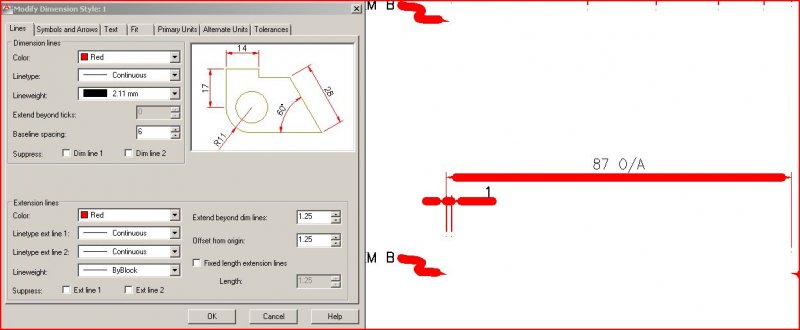

leaders are dimension lines.jpg

Edited by Dadgad

Share this post


Link to post
Share on other sites
Organic

That is a useful tip and something I didn't know was possible!

Share this post


Link to post
Share on other sites
Dadgad
That is a useful tip and something I didn't know was possible!



Glad to hear that and share. :)



Curious though, which part didn't you know Dink?

Share this post


Link to post
Share on other sites
Organic
Glad to hear that and share. :)



Curious though, which part didn't you know Dink?



That leader lines could have a weight to them. For some reason I had always thought they couldn't.

Share this post


Link to post
Share on other sites
Dadgad

Now you understand that they can, just remember that they share the lineweight with dimension lineweights. :)

Share this post


Link to post
Share on other sites
bachrock

Thanks so much!
