Most "normal rulers" I've come across (in the U.S. of A.) are in inches and sixteenths with larger tic marks for every eighth of an inch and quarter of an inch. "Rulers" are used in grade school. When you graduate to the real world we call objects that one measures distances with on a drawing a "scale". The two main types of scales I use are "architect's" and "engineer's". Architect's scales are: 1, 1/2, 1/4, 1/8, 3/4, 3/8, 3/32, 3/16, 1 1/2 and 3 = 1'-0". Engineer's scales are:1" = 10, 20, 30, 40, 50, 60 feet.

Posted

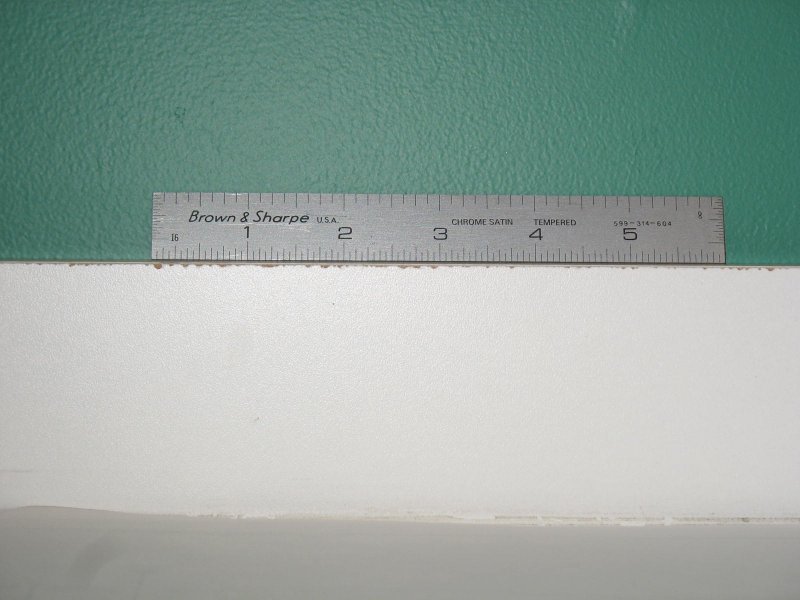

October2012 040.jpg

I think this might be referred to as a machinist's ruler if I am not mistaken. JDM will surely correct me if I am wrong.



Note that across the bottom it is divided into sixteenths. There are longer lines for every eighth of an inch.

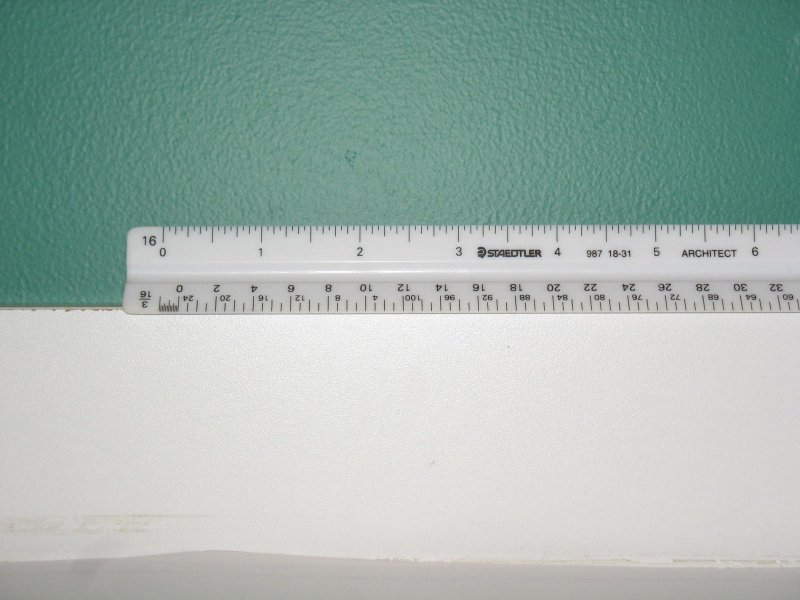

Posted

October2012 039.jpg

One end of an "Architect" scale. That is sixteenths on the top scale.

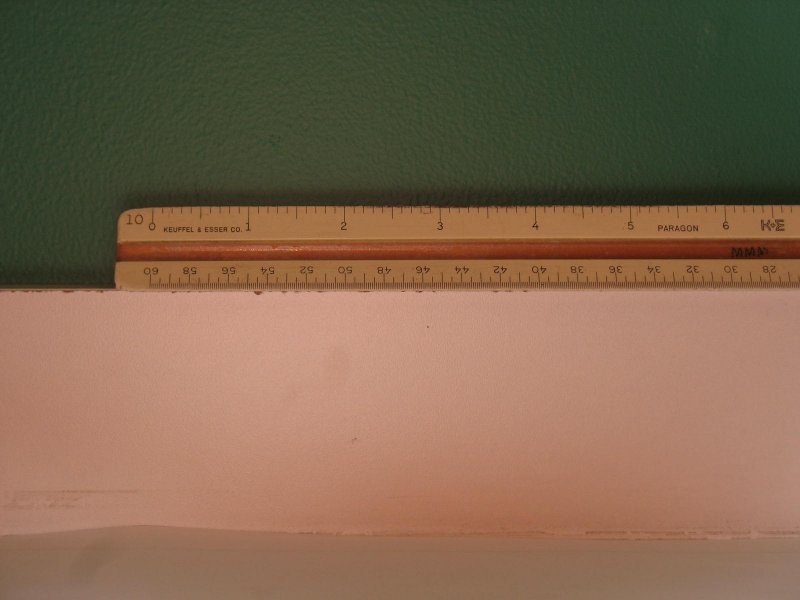

Posted

October2012 038.jpg

One end of an "Engineer" scale. The top scale is divided into tenths. It could be used to measure distances on a drawing where the scale was 1"=10' or even 1"=100' (mentally add a "0").



So, of the three images I've shown, which one did you use to measure a distance on the plan of the villa provided by your professor?

Posted
should i post a picture of the plan.



Of course!

Posted

Yes please send a picture of what your trying to accomplish. It will a lot easier if we have something to reference from. 8)

Posted

Then there's this one here, most of us use at work. Rats, bad res. OK, in dwg format then. I found this here on the forum, forgot who posted it.

ScaleOfConfusion.dwg

Posted

LaLaD: What's up? Did you figure it out on your own or did you decide to drop the class?
