Inaccurate Nearest Osnap

Recommended Posts

aglaerum

Hi

My "Nearest" osnap is not even close to snapping to my circle.

All other snaps are working fine, nearest snap are working on lines and rectangles, not at all on circles.

Whats going on?



Image attached.


Share this post


Link to post
Share on other sites
MSasu

This may by only a visual representation problem - call the REGEN command and try again.

Share this post


Link to post
Share on other sites
aglaerum

Thank you for your answer,

I tried the REGEN command and it is not working, i feel like i tried everyting.

Share this post


Link to post
Share on other sites
aglaerum

An it is not visual since the intersection snap will not accept this inaccuracy either, and if i zoom in the Snap symbol dissapears out of the view.

Share this post


Link to post
Share on other sites
eldon

Did you do the REGEN before or after you zoomed in?



Perhaps you could explain what it is you are trying to do, and whether it involves zooming in a lot.

Share this post


Link to post
Share on other sites
aglaerum

I tried the REGEN before and after, again and again, I am simply trying to snap the center og a circle to the nearest on another circle, it ends up almost 1mm of at my current circle size.

Not that much Zooming realy.



If I try it on any other thing than a Circle it works, not at all on circles, and it seems like the inaccuracy is dependent on the size of the circle, biger circle means its farther of its spot and so on.

Share this post


Link to post
Share on other sites
aglaerum

Also, te inaccuracy is always away from the center.

Share this post


Link to post
Share on other sites
eldon

I usually trust the Osnaps, but try snapping the centre of circle B, nearest to the circle A. Now take the distance between the centre of circle B, perpendicular to the circle A, and you will probably find that the distance is zero.



Perhaps you could post a drawing with those two circles in it.



Do you know how to do a transparent REGEN?

Share this post


Link to post
Share on other sites
ReMark

Why aren't you snapping from center on one circle to center on the second circle? I don't understand why you are using "nearest" on the second circle. "Nearest" to what?

Share this post


Link to post
Share on other sites
RobDraw

Your crosshairs don't look right. Could this be something to do with your view or UCS?

Share this post


Link to post
Share on other sites
MSasu

So, are you looking to place the center of circle B in an arbitrary point on the circumference of circle A?

Try to draw a line that start from center of circle A and exceed its circumference and after try to use INTersection Osnap mode to see if there is any difference.

Share this post


Link to post
Share on other sites
aglaerum

The inaccuracy is measurable, it is 0,04mm,more with bigger circle, but this is measured whitout Nearest snap on, as it will just snapp to the same point.

Transparent REGEN is new to me, could you explain?

Share this post


Link to post
Share on other sites
aglaerum

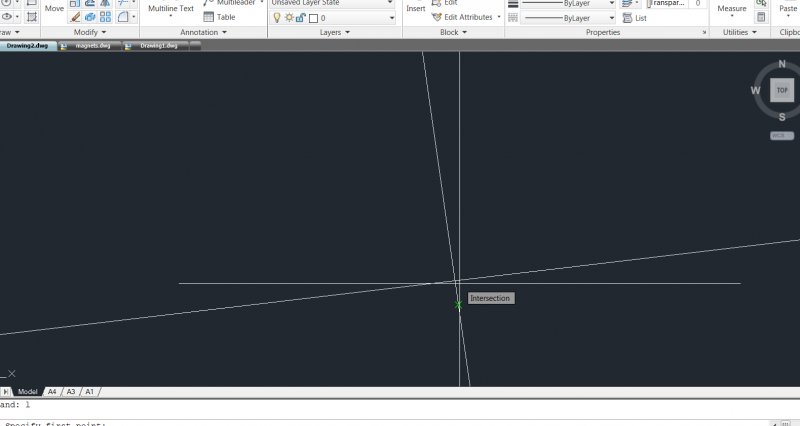

I tried to make a line from the center like you said, this is what happens, so its not just the nearest snap then!


Share this post


Link to post
Share on other sites
aglaerum
Your crosshairs don't look right. Could this be something to do with your view or UCS?



My UCS is set to "Top" and my crosshairs are fine i think?

Share this post


Link to post
Share on other sites
RobDraw

I think the circle is not on the same plane as the crosshairs.

Share this post


Link to post
Share on other sites
aglaerum
So, are you looking to place the center of circle B in an arbitrary point on the circumference of circle A?

Try to draw a line that start from center of circle A and exceed its circumference and after try to use INTersection Osnap mode to see if there is any difference.



I forgot to quote, but my new uploaded image is for you, and as you see it gives the same symptoms.

Share this post


Link to post
Share on other sites
MSasu

Can you post this trouble-maker drawing here for further investigation?

Share this post


Link to post
Share on other sites
aglaerum
I think the circle is not on the same plane as the crosshairs.



Im not sure what you`re saying, could you elaborate?



My view is set to "Top" and my ucs is set to "Top", it there more?

Share this post


Link to post
Share on other sites
aglaerum
Can you post this trouble-maker drawing here for further investigation?



Thank you or your dedication, but I dont think it will help, as i tried restarting autocad with a blank drawing, and the symptoms are still there, so its not realy a drawing spesific problem.

Share this post


Link to post
Share on other sites
RobDraw

The problem could be in your template. Having a file at hand is much easier than going fishing for the problem.

Share this post


Link to post
Share on other sites
