I need help drawing a industrial lifting hook in CAD 2013

[sean214]

Okay Got it

I have to mark this off on the first test for 3 or 4 students every year. I'm not the best speller myself, but this one you need to know.

[Dadgad]

I have to mark this off on the first test for 3 or 4 students every year. I'm not the best speller myself, but this one you need to know.



Some times when we are really under the gun, and I have been going hard from 7:00 a.m. til 4:45 a.m., a couple days in a row, my last drawing of the

extended day might well have 'dementians' .

[ReMark]

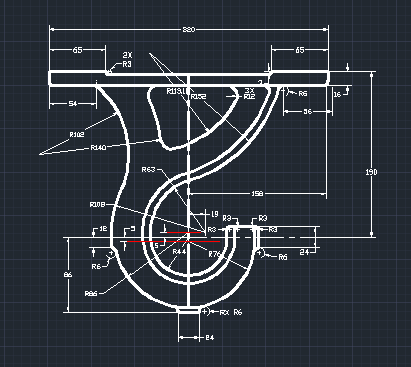

sean: Post an image. Let's see what you have so far.

[SLW210]

If you stay in this field, you might want to learn how to spell dimension (there is no "t", at least not where I live).



If they stay in this field, they will be spelling it "dementia".

Edited November 6, 2012 by SLW210

[ReMark]

Dementia...dementium...dementius?

[sean214]

as long as it sounds like it... i completed the drawing

[JD Mather]

Diameter symbols (Ø) missing on two dimensions.

%%C or Alt 0216 (using numerical keypad)

or select from Symbols.

[sean214]

You definitely have an eye for detail...thanks, will add them

Diameter symbols (Ø) missing on two dimensions.

%%C or Alt 0216 (using numerical keypad)

or select from Symbols.

[ReMark]

Disable the Lineweight option when you do a screen capture it makes the image difficult to read.



Not sure I agree with the way you have called out the arcs (re: R6).



For future reference, dimension lines can be broken in AutoCAD 2012 using the DIMBREAK command.
