Hi everyone,



I am a beginner with Autocad 2D and I have a problem with some of my imported blocks. They appeared way too small.



I've read the other post about the subject, but it didn't work for me.



I downloaded a couple of .dwg file in 2d on a manufacturer website. Then I inserted them in my drawing, and they are tiny. I've tried the trick to scale it at 25.4, but they are still a little bit too small. I've also tried to set INSUNITS to 0 or 1 and didn't change anything....



The problem seems only to appear with this company. Other blocks from other company seems fine.



Anyone has an idea of the problem?



Thank you so much

Share this post


Link to post
Share on other sites
ReMark

Do you know at least one of the dimensions for this block? If you did you could calculate the necessary scale factor.



What units are you working in by the way? I'm assuming its metric right?

Share this post


Link to post
Share on other sites
Khaleesi8

Hi!



Thanks for your quick answer. I'm using architectural and inches.



Yes I know the dimension of the block. But I don't know how to calculate the scale factor with the dimension... I thought you could only make it X times bigger or smaller.

Share this post


Link to post
Share on other sites
ReMark

So you are using imperial units but you are working with metric blocks?



Well anyway, just measure the distance of the known side and compare it to the size it should be. Example: if your measurement comes back as 4 inches but you know the true dimension is 12 inches then the scale factor you must apply would be 3. Simple math.

Share this post


Link to post
Share on other sites
nestly

I believe INSUNITS only works if the block is also assigned units ie not 'unitless'



As for scaling there is no need to calculate a scale factor, just use SCALE > Reference.



If you want to post the block, and a known dimension, I'll do a video demonstration using your block/object

Share this post


Link to post
Share on other sites
Khaleesi8

I have no idea if it it metric or imperial block. On the website, they give us the 2 dimension (cm and inches)



But you had a good idea and it works fine!



Thank you so much, it's been hours I try to fix this.

Share this post


Link to post
Share on other sites
ReMark

I was assuming the OP (an admitted beginner) was not familiar with the Reference option. Most newbies fail to pay attention to the command line after they hit that first Enter.

Share this post


Link to post
Share on other sites
Khaleesi8
I believe INSUNITS only works if the block is also assigned units ie not 'unitless'



As for scaling there is no need to calculate a scale factor, just use SCALE > Reference.



If you want to post the block, and a known dimension, I'll do a video demonstration using your block/object





Hi Nestly. That would be amazing! I've never use yet the scale by reference. I just tried and it didn't work. I just post the file here?

Share this post


Link to post
Share on other sites
ReMark

Yes, you can attach a copy of the drawing to your next post. Are dimensions included?

Share this post


Link to post
Share on other sites
Khaleesi8

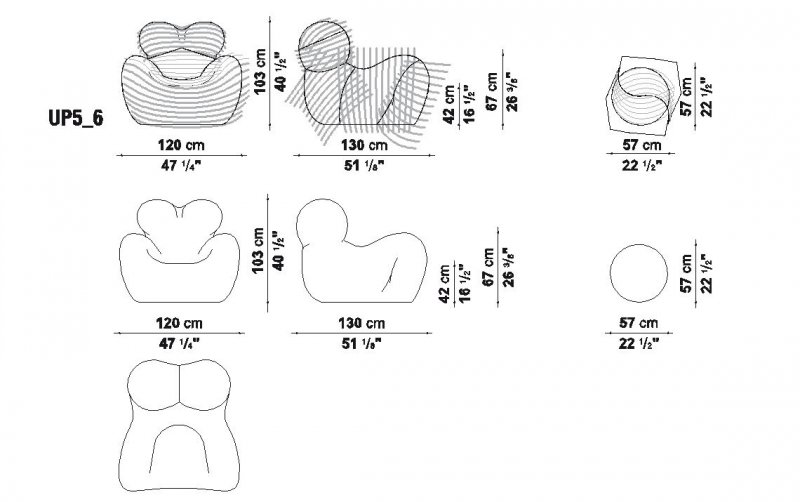

A jpeg? How can you send a dwg file?

Share this post


Link to post
Share on other sites
nestly

Click "Go Advanced" at the lower right of the "Quick Reply" window, then scroll down to "Manage Attachments" When the "Manage Attachments" window opens, click "Browse" double click your file, then click "Upload File" then close the attachments window and post your message.

Share this post


Link to post
Share on other sites
ReMark

It scaled fine for me using the Reference option as nestly suggested.

Share this post


Link to post
Share on other sites
Khaleesi8

Great! Many thanks again for your time!

Share this post


Link to post
Share on other sites
ReMark

I'd suggest that if you are going to continue to use the assigned colors that you change you background color from black to white so you can see everything better.

Share this post


Link to post
Share on other sites
Khaleesi8

Oh thanks but no I need it by layer color:)

Share this post


Link to post
Share on other sites
ReMark


Isn't this easier to see?

Share this post


Link to post
Share on other sites
ReMark

The layer color has been overridden by whoever did the drawing. The layer might have color white assigned but that isn't the color you see.

Share this post


Link to post
Share on other sites
Khaleesi8

Pefect!!!!



Thank you!!"

Share this post


Link to post
Share on other sites
ReMark

The background color can be changed via Options > Display > Colors button > 2D model space > uniform background.

Share this post


Link to post
Share on other sites
