Annotating Angles and Dimensions

Recommended Posts

reddo83

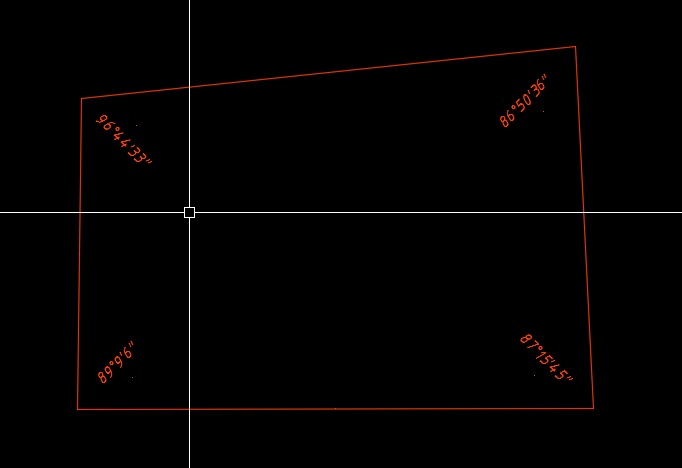

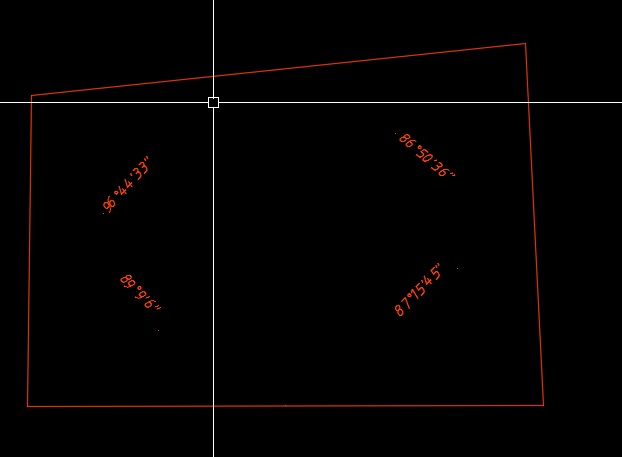

Thanks for that. Got it working but is there a way to get the text rotated. Currently I would have to manually rotate them. Sorry if im asking dumb questions. Working at a small firm with no CAD support and am new to lisp routines.



Share this post


Link to post
Share on other sites
hanhphuc
Thanks for that. Got it working but is there a way to get the text rotated. Currently I would have to manually rotate them. Sorry if im asking dumb questions. Working at a small firm with no CAD support and am new to lisp routines.





at line 104 remove (* pi 0.5) or add comment " ; "

...
 (vla-put-TextRotation (vlax-ename->vla-object (entlast))
      (MakeReadable(+ rot [color="red"][b];[/b] (* pi 0.5) [/color]
	(atan (apply '/ (cdr (reverse (getvar "ucsxdir" )))))))
      )
...
