I'm running Inventor 2015.

I am wondering if there is a way to make custom section arrows instead of what is defaulted on the system?

I have clients that have their own standards for drawings and have a custom section arrow and titles.



Is there a way to make a custom one without just making a sketch or plain symbol not related to the section? I'm trying to keep the drawing intelligent...

Share this post


Link to post
Share on other sites
kifmarn

I know you can change the terminator type, size and height quite easily.

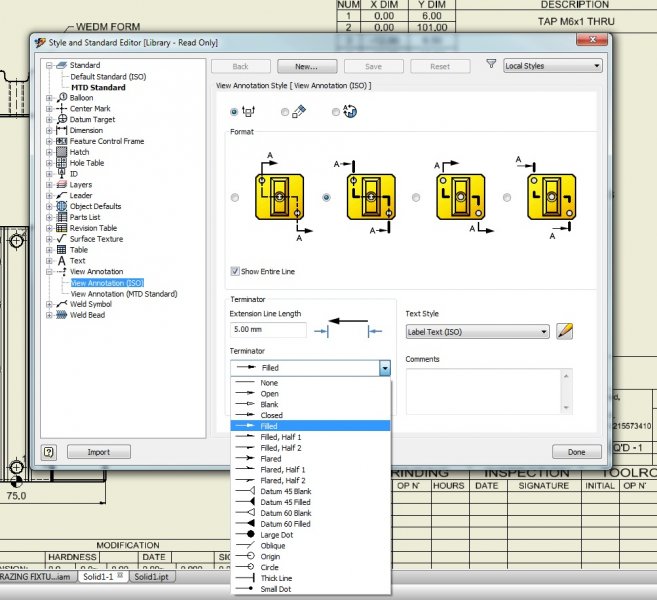

In your .idw: goto Manage>Styles Editor>View Annotation.





I imagine you will find something close to your customers' in there.

Custom Arrow.jpg

Share this post


Link to post
Share on other sites
rileybreed

Thank you kifmarn, I'm trying to create sections like attached in the pic. Currently I use sketched symbols with prompted entries but there is no way to link it to the section.






It would be nice to add custom terminators.
