Dimension unit labels

Recommended Posts

Hi all,


How do you get the inch or foot or labels to show. I have the numerical value, but I'd like the " symbol to show up to indicate inches.



Link to comment
Share on other sites

Use a Dimstyle with the appropriate Primary Units


"Architectural" for Feet and Fractional Inches

"Engineering" for Feet and Decimal Inches

"Fractional" for Fractional inches (you'll have to manually add " as a suffix if you want the inch designator)



Link to comment
Share on other sites

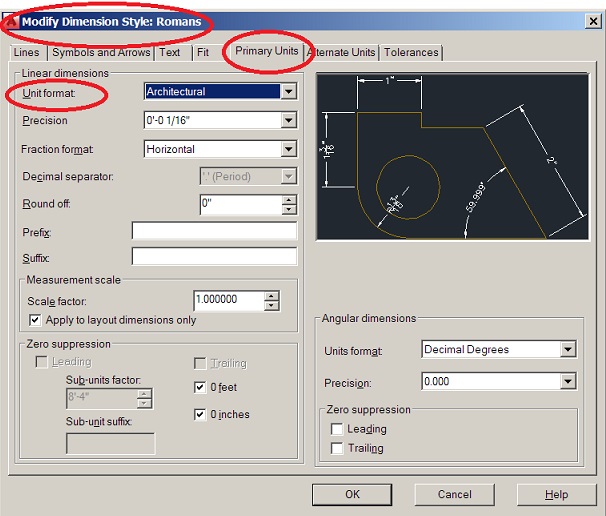

Also, looking at the insert that is in nestly post, the 2 boxes above the "Measurement Scale" section you can customize by adding to the "Prefix & Suffix" boxes.
