vernonlee Posted March 25, 2015 Author Share Posted March 25, 2015 Hi eldon, I did that but i click all four corners of the rectangle when selecting origin point, would not give me the same location. So which origin point should i click? If you draw ReMark's rectangle starting at 0,0 and with sides 5000, 5000, and then hatch it with the imperial hex hatch pattern at a scale of 500. You can now take this rectangle with the hatch, align it with your pattern and see exactly where the origin is (corner of rectangle). Quote Link to comment Share on other sites More sharing options...
vernonlee Posted March 25, 2015 Author Share Posted March 25, 2015 If you want a perfect pattern forget hatch and just use Array make 1 hexagon exactly as you want, copy and move for 2nd row then array use something like cookiecutter.lsp or extrim to cut any hex's on the line. Yes it can be automated. By tyhe time I read the other 4 pages of posts I will have it done ! Hi BIGAL. Appreciate the advise but this hatch is a wall symbol & would not be proper if some parts are hatching & some parts of of a different enity type. It would be messy. Quote Link to comment Share on other sites More sharing options...
BIGAL Posted March 25, 2015 Share Posted March 25, 2015 (edited) I am sure there are some rules but its one of those mysteries thats buried within Autocad like linetypes shorten a fraction and the pattern you wanted goes off. As you can set the hatch angle and a arbitrary base pt maybe its a pick point and work out a new base point modifying the hatch origin. Will have a look at this Now leaning towards delete hatch and set new origin and recreate. Edited March 25, 2015 by BIGAL Quote Link to comment Share on other sites More sharing options...
eldon Posted March 25, 2015 Share Posted March 25, 2015 Hi eldon, I did that but i click all four corners of the rectangle when selecting origin point, would not give me the same location. So which origin point should i click? When you draw the rectangle with one corner at 0,0, you must mark that corner before you align it with your existing pattern, and then you will know where the origin point is. And then you can set up a UCS based on the rectangle, or whatever. Quote Link to comment Share on other sites More sharing options...
ReMark Posted March 25, 2015 Share Posted March 25, 2015 "...this hatch is a wall symbol..." If it is just a symbol then I have to wonder why you are wasting so much time on it. Don't you have better things to do? I can't believe your employer is letting you spend your valuable time on such a trivial aspect of a drawing. It's a hatch pattern it's not the final piece of a design for a complex building component. Yes, I know, I'll be bashed for my "criticism" but you have got to have more important things to do than this. How much attention will this wall symbol receive when the client finally (if ever) gets his drawing? My guess is virtually none. Quote Link to comment Share on other sites More sharing options...
RobDraw Posted March 25, 2015 Share Posted March 25, 2015 Hi BIGAL. Appreciate the advise but this hatch is a wall symbol & would not be proper if some parts are hatching & some parts of of a different enity type. It would be messy. Look at the mess that you are in with your current method. There are much better ways to accomplish what you need. With the information that you've given so far, arrays would be one of them. If you could describe what you are doing with some more background information, I'm sure we can steer you in a better direction. Quote Link to comment Share on other sites More sharing options...
eldon Posted March 25, 2015 Share Posted March 25, 2015 Looking at the hex pattern, it is apparent that every single corner of the shape could be the origin point. Quote Link to comment Share on other sites More sharing options...
vernonlee Posted March 25, 2015 Author Share Posted March 25, 2015 When you draw the rectangle with one corner at 0,0, you must mark that corner before you align it with your existing pattern, and then you will know where the origin point is. And then you can set up a UCS based on the rectangle, or whatever. Ok. I I'll tests it out. Thanks Quote Link to comment Share on other sites More sharing options...
vernonlee Posted March 25, 2015 Author Share Posted March 25, 2015 Hi BIGAL & ReMark. You are right. I guess I should not waste time on this. I guess trying to know where went wrong to do a proper way & knowing what to do in future got the better of me. Unfortunately I am one of those people. I do admit it I do get caught up in this type of things & does slow me down. Thanks for all the time spent & advise given. Quote Link to comment Share on other sites More sharing options...
BIGAL Posted March 26, 2015 Share Posted March 26, 2015 This is a solution you can do diferrent offsets for patterns this will move the hatch path with a prehatched area (vl-load-com) (setq obj (vlax-ename->vla-object (car (entsel "\NPick hatch")))) (setq pt (getpoint "\nPick Corner")) (setq pt (list (car pt)(cadr pt))) (vlax-put obj 'Origin pt) (vlax-put obj 'HatchStyle (vlax-get obj 'HatchStyle)) Quote Link to comment Share on other sites More sharing options...
vernonlee Posted March 26, 2015 Author Share Posted March 26, 2015 Thanks BIGAL Quote Link to comment Share on other sites More sharing options...

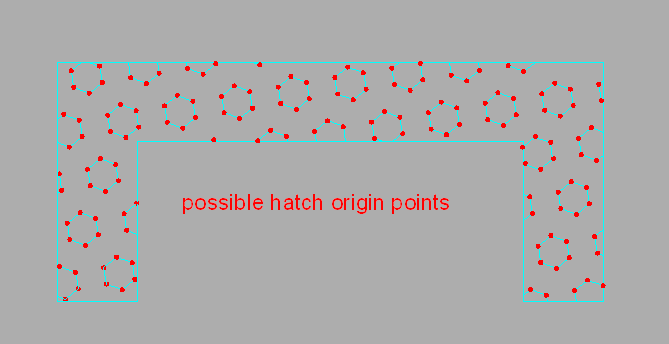

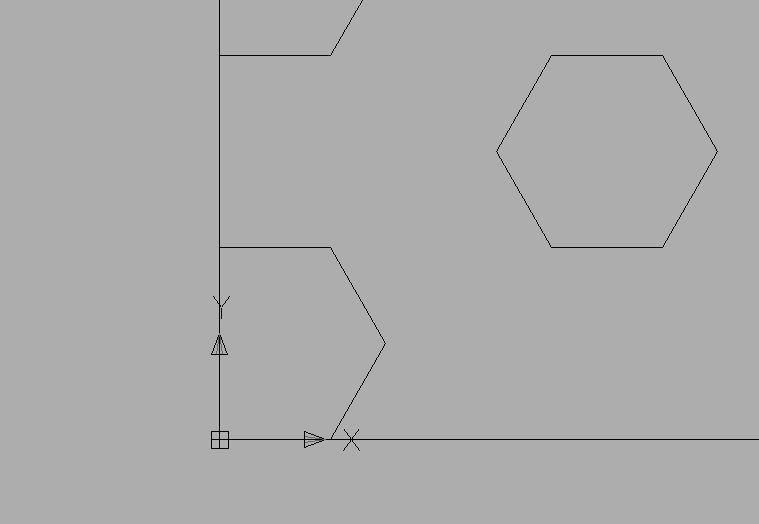

eldon Posted March 26, 2015 Share Posted March 26, 2015 I have marked all possible points of hatch origin on your original drawing. Quote Link to comment Share on other sites More sharing options...
BIGAL Posted March 27, 2015 Share Posted March 27, 2015 Eldon your correct, I cheated and tested the simple realign with NET making a pline corner the intersection of the hatch squares, again there has to be a rule of which corner point controls and what pt on the hatch matches, you can then work out a shift as well as the complication of the rotation angle, that was like version 4. Quote Link to comment Share on other sites More sharing options...
