selection set of line, circle, arc, polyline from autocad 3D object

raj patel

Recommended Posts

For Example :-


Selection set of circle:-

(ssget '((0 . "circle")))


Selection set of polyline:-

(ssget '((0 . "*polyline")))


Selection set of arc:-

(ssget '((0 . "arc")))


and you can combine them like this:-

(ssget '((0 . "arc,circle,line,*polyline")))

Link to comment
Share on other sites

i have a 3D object in autocad and i want to create selection set of line, circle, arc, polyline of that object using visual lisp.

please help..

thanks in advance...




what are you trying to accomplish upon selecting those entity? do you just want to select them?


(setq selset
       (cons -4 "<OR")
         (cons 0 "ARC")
         (cons 0 "CIRCLE")
         (cons 0 "ELLIPSE")
         (cons 0 "LINE")
         (cons 0 "LWPOLYLINE")
         (cons 0 "POINT")
         (cons 0 "POLYLINE")
       (cons -4 "OR>")


anyway in your attached drawing, i cant find any entity there except the 3D solid object.

Link to comment
Share on other sites

sir, i have a 3D solid object so first what i do to convert them in a any entity?


if you are familiar with SOLPROF command you can accomplish that but if your not, here we go, it is faily easy.

Open your drawing,

go to any of your Layout

Create a Viewport > Single "choose a view you want to have a 2D profile"



now goto Model Space and move your 3D object so you can see the 2D profile

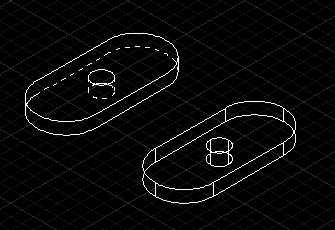

see snapshot



upper > 2D profile

lower > 3D Object


by the way, you need to explode the 2d profile so you can change the linetype etc.

Link to comment
Share on other sites

I believe what the OP wants to achieve is extracting the edges of the solid. The use of SOLIDEDIT would achieve this.



i want feature extraction like as shown attached file(doc1.docx) using autocad and visuallispDoc1.docx

Link to comment
Share on other sites

sure there is. I put this together from another lisp so you'll have to go through and adjust but it's a start

 (lambda ( e / g )
   (if e
       (setq g (entget (cdr (assoc 360 (entget (cdr (assoc 350 (entget e))))))))
       (mapcar (function cdr)
             (lambda ( x )
               (eq (car x) 360)
           ) g
 ) (car (entsel "\nSelect a solid: "))

Link to comment
Share on other sites

Are you saying that what is left is a list of assoc 360 entities and that these entities are the edges of the solid? I ran your code, with some edits, and I am left with just one entity ACAD_EVALUATION_GRAPH. Could you explain more as to what your code is doing?

Link to comment
Share on other sites

I fear I'm mistaken. I was sure this would bring back results. (I'm embarrassed). This doesn't mean the information you seek cannot be accessed via lisp. It just means I'm not the man for this job. Sorry for the quick uneducated response

Link to comment
Share on other sites

the programme listed below extract hole in the 3D drawing. can i extract other type of hole(squre or triangle) using this code with some modification.


(defun c:test (/ i e p1 p2 ss lst q var f fn dat dat1)
;hanhphuc 2014
 (set 'var (getvar 'cmdecho ))
 (setvar 'cmdecho 0)
 (if (and (setq e (entsel "\nPlease select solid.. ")) (setq e (car e)) (= (cdr (assoc 0 (entget e))) "3DSOLID"))
   (progn (vla-GetBoundingBox (setq obj (vlax-ename->vla-object e)) 'p1 'p2)
   (mapcar ''((a b) (set a (vlax-safearray->list b))) '(p1 p2) (list p1 p2))
   (command "_explode" e)
   (setq i   0
	 ss  (ssget "C" p1 p2)
	 lst (mapcar '(lambda(x)
			(setq q nil)
			 (= (cdr (assoc 0 (entget x))) "REGION")
			 (setq q (cons (LM:reg x) q))
			 (setq q (cons (vlax-ename->vla-object x) q))
			 (listp q)
			 (LM:flatten q)
		     (vl-remove-if 'listp (mapcar 'cadr (ssnamex ss)))
		     ) ;_ end of mapcar
	 ) ;_ end of setq
   (foreach o (vl-remove-if-not ''((x) (= (vla-get-ObjectName x) "AcDbCircle")) (LM:flatten lst))
     (setq dat(cons (princ (strcat "\nCIRCLE_" (itoa (setq i (1+ i))) " "
		 (mapcar ''((x)(vlax-get o x)) '(Radius Center))
     ) ;_ end of foreach

   (command "_.U")

(setq fn (strcat (getvar "dwgprefix") "hole dat.csv") f (open fn "w"))
; If you don't want to override file ,to append use (open fn "a") as suggested by Marko @ post#14

(foreach $
(foreach x dat
 (setq	dat1 (cons (vl-string-translate
	     " "
	       (vl-remove-if ''((a) (or (= a 10) (= a 40) (= a 41))) (vl-string->list x))
	       ) ;_ end of vl-list->string
	     ) ;_ end of vl-string-translate
	   ) ;_ end of cons
) ;_ end of setq
 ) ;_ end of foreach
(write-line $ f))
(write-line " " f)
(if f (close f))
(startapp "notepad" fn)     ;<--remove this line if you don't want it to pop-up everytime
   ) ;_ end of progn
   ) ;_ end of if
 (setvar 'cmdecho var)
 ) ;_ end of defun

;;;adopted as sub-function
(defun LM:reg (reg / RetObj)
 (setq Reg (vlax-ename->vla-object reg))
 (if (vlax-method-applicable-p reg 'explode)
 (setq RetObj (vlax-safearray->list (vlax-variant-value (vla-explode Reg))))
 (repeat (length RetObj)
   (if	(eq "AcDbRegion" (vla-get-ObjectName (car RetObj)))
     (setq RetObj (append RetObj (vlax-safearray->list (vlax-variant-value (vla-explode (car RetObj))))))
     (setq RetObj (append RetObj (list (car RetObj))))
     ) ;_ end of if
   (setq RetObj (cdr RetObj))
   ) ;_ end of repeat
 ) ;_ end of defun

;; Flatten List  -  Lee Mac
;; Transforms a nested list into a non-nested list
;; [url]http://www.lee-mac.com/flatten.html[/url]

(defun LM:flatten ( l )
   (if (atom l)
       (list l)
       (append (LM:flatten (car l)) (if (cdr l) (LM:flatten (cdr l))))
