Raster Image looks out of place but isn't


Recommended Posts


I'm hoping someone knows a fix for this.

I'm working on a large project, and I have 14000 feet of plan & profiles split into 500 ft sections, with a raster image as the background of all the plan views. The plan viewports are rotated 36 degrees using mvsetup.

The problem is that when I go to any of the layout tabs to view my sheet the raster image appears to have shifted over, but when I plot the sheet the raster is in the correct spot and everything looks good.

I would like to work within the layouts, but can't when the images appears out of place.

Sorry for the long explanation, I just wanted to cover as much of the problem as I could.

Any help is greatly appreciated, and thank you in advance!



Link to comment
Share on other sites

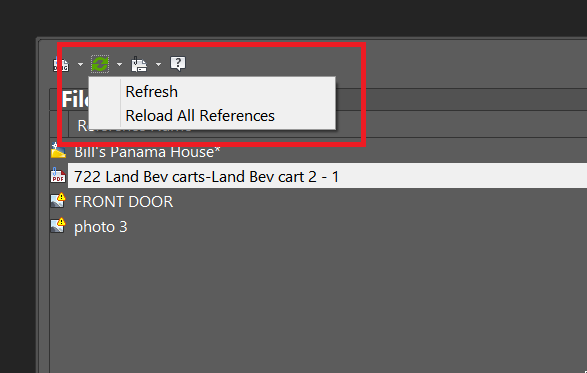

Try reloading your images in the xref manager. Command EXTERNALREFERENCES. Click the down arrow on the refresh button. I also have this problem occasionally with simple small pdf's. They max out the graphics memory after a lot of layout switching back and forth, so they don't get displayed just right. Reloading fixes it for me, but only for a while.


Link to comment
Share on other sites

I tried Reload All References & I tried Reloading just the reference that is giving me trouble. No luck so far.

Thank you for the idea though.
