Is there any snap object mode to draw a line between two circles?

Recommended Posts

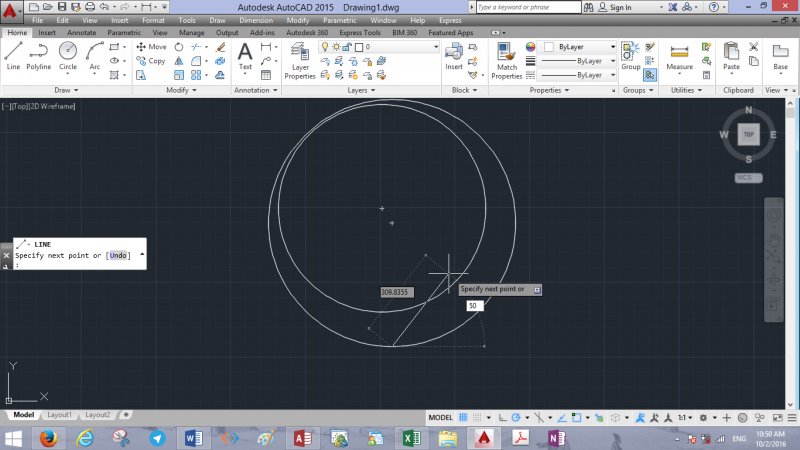

I have 2 objects, let say two circles with different centers and different radius.

I want to draw a line from quadrant of one circle with 50 degree angle until it intersects with other circle. Obviously the length of the line is unknown.



A basic solution would be to draw a longer line and then trim it.

But I want to be more productive and draw in one step. Is it possible?


Edited by khoshravan

Share this post


Link to post
Share on other sites

Please refrain from creating duplicate threads as it only leads to confusion. I'm pretty sure you have been told this in the past as well. Thank you.

Share this post


Link to post
Share on other sites

You can find an explanation of all the OSnap settings right here in the Tutorials section of CADTutor.



Re: NEAREST



The Nearest Osnap snaps to the nearest point on a drawing object. This Osnap is useful if you want to make sure that a pick point lies on a drawing object but you don't necessarily mind exactly where it is located.

Share this post


Link to post
Share on other sites
Please refrain from creating duplicate threads as it only leads to confusion. I'm pretty sure you have been told this in the past as well. Thank you.

I thought it might not be good to ask two questions in one thread. My main concern, is the question in this thread. I thought "nearest osnap" should answer the question, but I am not sure.

Share this post


Link to post
Share on other sites

You can't know the intersecting point ahead of time, and there are no random snaps on a circle. You have only quadrant, tangent, perpendicular, and center. Since your line will only hit one of these points by chance, depending on the alignment of the two circles, your longer line drawn at the proper angle, then trim is about it. At least it's accurate.

Share this post


Link to post
Share on other sites

You have Autocad so maybe a good time to learn lisp it can be done, quad, angle, pick 2nd circle, draw line done, hint "intersectwith". At 458 posts you should be starting to have a go rather than just rely on every one else.

Share this post


Link to post
Share on other sites

An example is using leader to pick the arrow head point make sure it touches a line etc.

Share this post


Link to post
Share on other sites

Dear Dana and Bigal

Thanks for your replies.

Someday I will go for LISP. Now it is too early for me.

So the method I applied already, seams to be the best solution.

Share this post


Link to post
Share on other sites

Please post in the correct forums, you seem to always post any question in the beginners forum.
