Exporting dwg to pdf with AutoCAD 2018

Recommended Posts

Costinbos77
Posted (edited)

Hello everyone ,



I just notice , the pdf file exported with AutoCAD 2018 is not so accurate as should be .






Pictures attached .

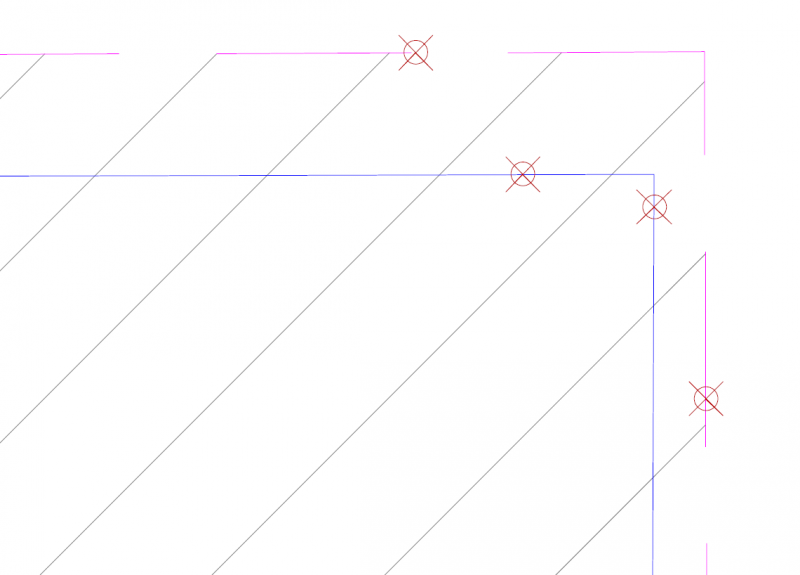

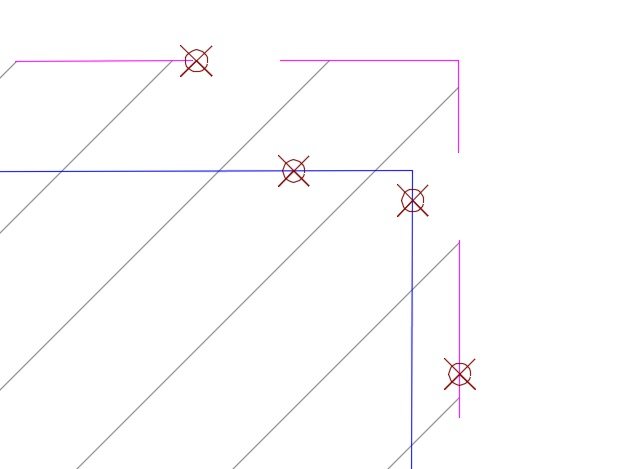

1 . Extras from AutoCAD file :

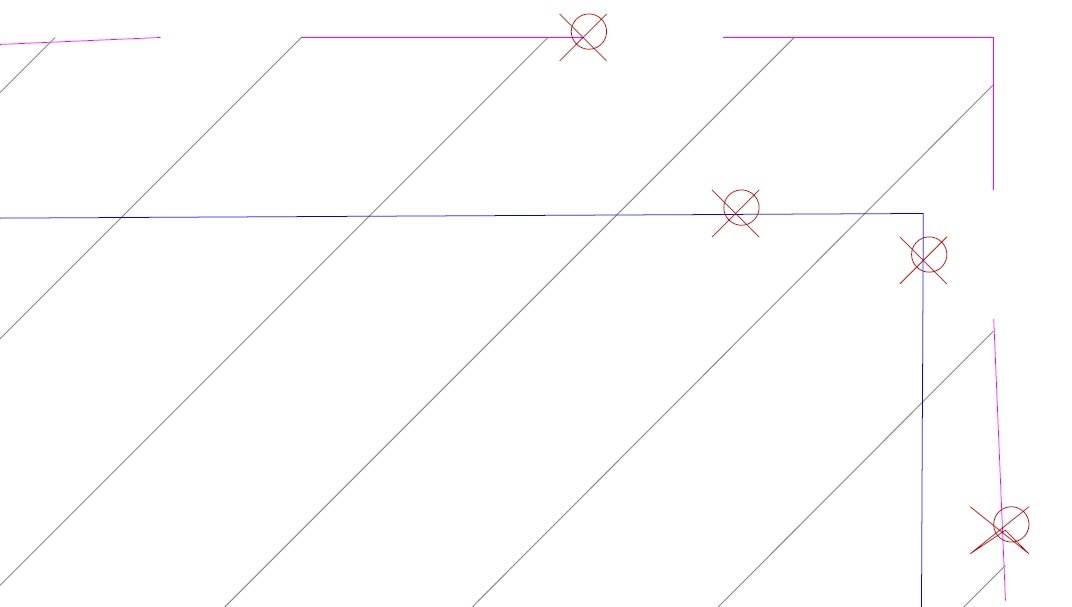

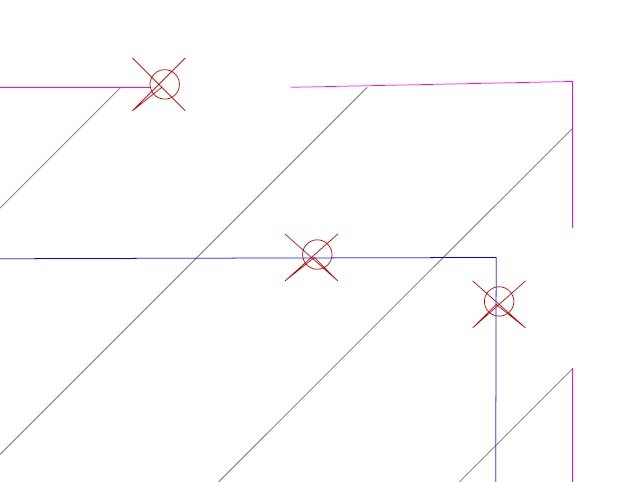

2 . Extras from pdf file :






The circles should be perfectly centered to the X polyline .



It is a way to obtain better resoults ?



Thanks in advance .















Export dwg to pdf 2.jpg

Edited by Costinbos77

Share this post


Link to post
Share on other sites
SLW210

I always use the plot with DWG to PDF.

  • Like 1

Share this post


Link to post
Share on other sites
Costinbos77

I have tried all the options from print tool .



I have the same problem .








I have attached a part of the dwg file .



Export test dwg to pdf.dwg

Share this post


Link to post
Share on other sites
rkmcswain

A print, whether physical or digital, is never going to be as accurate as the original vector drawing.

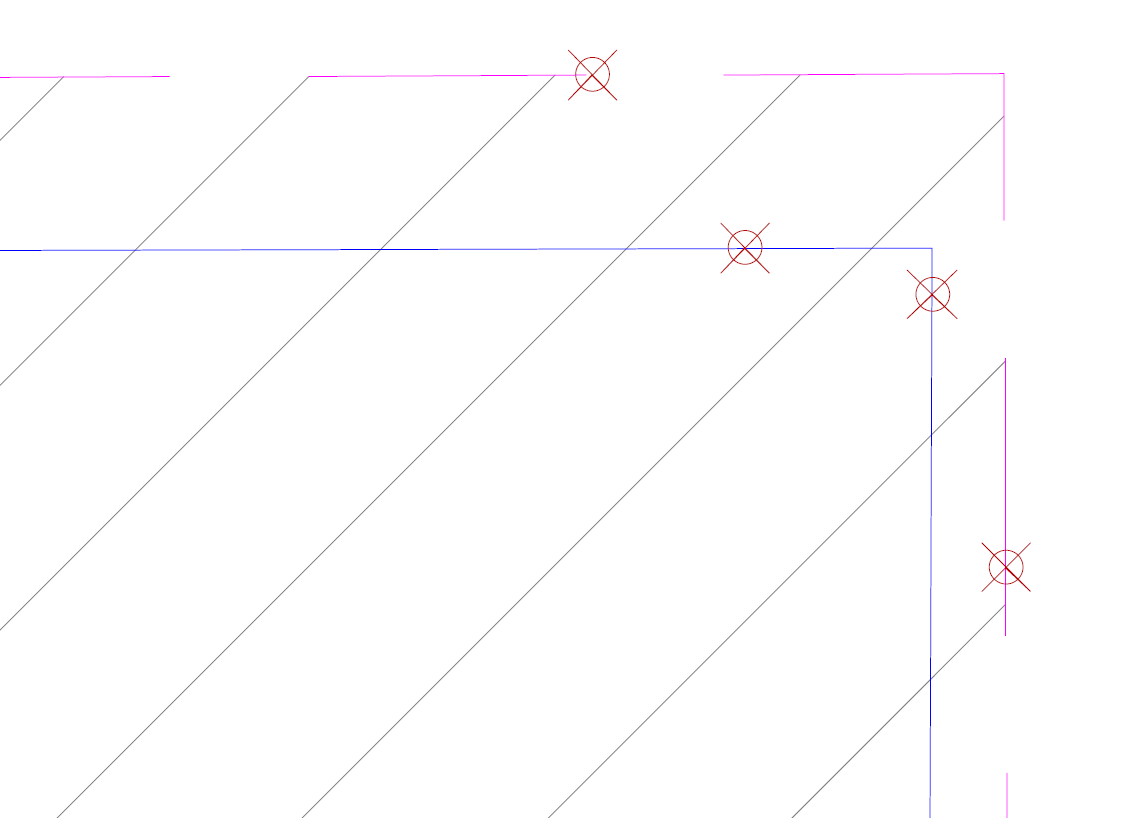

I think you are reaching the limits of how accurate a print can be. You have to zoom way into the PDF to see what your blown up screenshot shows.  It looks like it's about 0.008" off, unmeasurable on paper.  You can crank up the vector DPI settings in the driver to get it closer, the downside is a larger PDF. This image is from a PDF created with 4800 DPI set.






  • Like 1

Share this post


Link to post
Share on other sites
Costinbos77

In my last attached picture , the circles and X shapes are very bad.



So , it is possible to change the DPI value in AutoCAD, before to export the PDF file?



Or to define a PDF export style?

Share this post


Link to post
Share on other sites
f700es

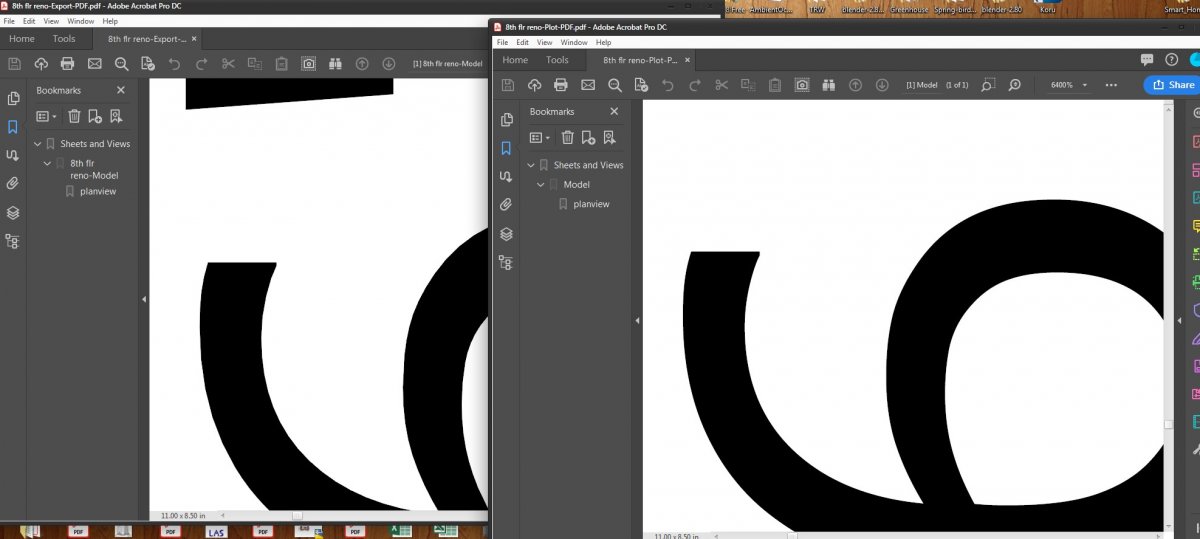

Here are 2 PDFs from the same DWG. The "Export to PDF" has clearly worse smoothness than the "Plot to PDF" using AutoCAD 2020's Plot to PDF.pc3



PDF compare.jpg

Share this post


Link to post
Share on other sites
Costinbos77

I am disappointed because the circles are not centered on the X or cross shapes .

Share this post


Link to post
Share on other sites
Costinbos77
Posted (edited)

Hello SLW210 .



Can you try to export the full layout on A3 format and upload it here?



My attached pictures are small parts from A3 pdf.

Edited by Costinbos77

Share this post


Link to post
Share on other sites
rkmcswain
On 5/24/2019 at 5:44 AM, SLW210 said:



@SLW210 - it looks like that is because you are only printing that zoomed in area. If you print the layout as given, you should get different results.



Share this post


Link to post
Share on other sites
