map doesn't match georeferenced dwg


NoroZorro

Recommended Posts

TerryDotson

Neither file (DWG / DXF) appear to have a coordinate system assigned.

Command: CGEOCS

That should echo the assigned name.

You need to assign a known system to the drawing using ...

Command: ADESETCRDSYS

  • Like 3
Link to post
Share on other sites
  • Replies 25
  • Created
  • Last Reply

Top Posters In This Topic

  • NoroZorro

    13

  • eldon

    4

  • TerryDotson

    3

  • rkmcswain

    2

Top Posters In This Topic

Popular Posts

Neither file (DWG / DXF) appear to have a coordinate system assigned. Command: CGEOCS That should echo the assigned name. You need to assign a known system to the drawing using ...

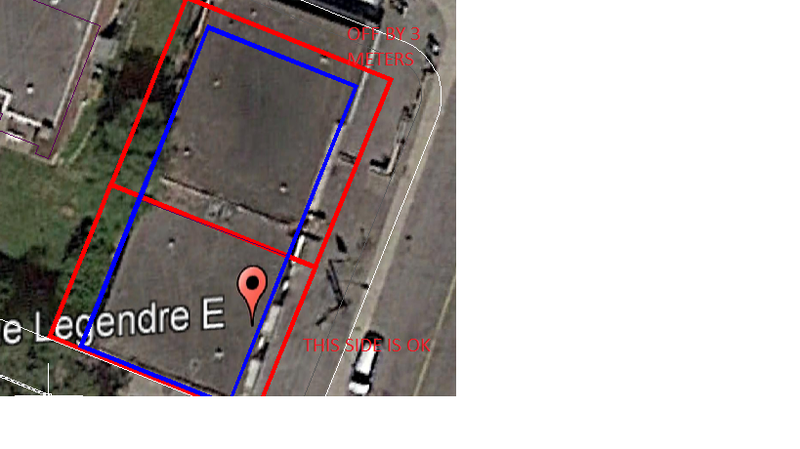

To try and explain the apparent discrepancy between map and drawing, one should go and find out the process of creating the map.   The aerial images are taken individually from a great heigh

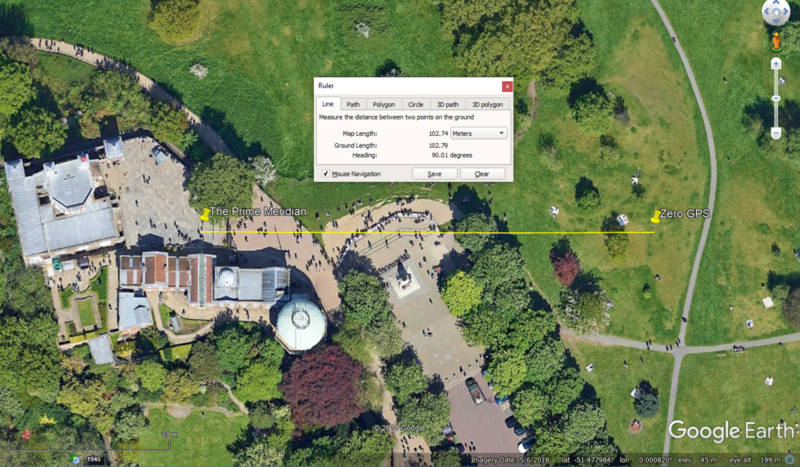

I was going to say exactly what Eldon mentioned. Those are not "flat" images as the world (believe it or not) is not flat. If you take a bunch of zoomed in screen grabs from Google, you will (at least

Posted Images

Good catch Terry!

I've added

(if(=(ade_projgetwscode)"")(princ "\nNo coordinate system set!")(princ(strcat "\nCoordinate system set to " (ade_projgetwscode) ". ")))

to my acaddoc.lsp to remind me what coordinate system is set whenever a drawing is opened.  Unlike ESRI shapes image files seem to be heavily dependant on the coordinate system as they're location is adjusted on import.

Link to post
Share on other sites
  • 2 weeks later...
On 10/1/2019 at 7:56 AM, TerryDotson said:

Neither file (DWG / DXF) appear to have a coordinate system assigned.

Command: CGEOCS

That should echo the assigned name.

You need to assign a known system to the drawing using ...

Command: ADESETCRDSYS

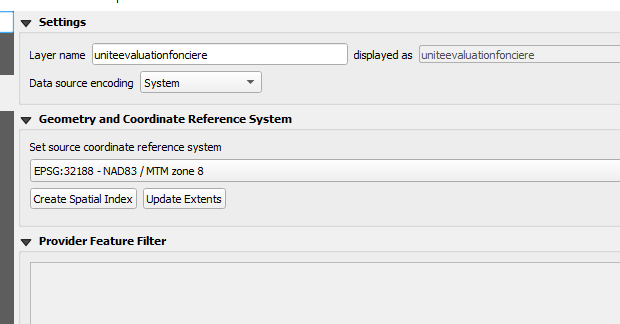

When I add vector layer in qgis and look at the property of that layer i get this see image.




Link to post
Share on other sites
1 hour ago, NoroZorro said:





When I add vector layer in qgis and look at the property of that layer i get this see image.




What does that have to do with inserting an image into Map 3D?  That's where you need the coordinate system assigned.

Link to post
Share on other sites

Thanks Tombu for your interest



THERRY DOTSON replied to me : Neither file (DWG / DXF) appear to have a coordinate system assigned.

Here, he doesn't talk about image. We talk about dxf and dwg files, which i included for review previously.



I'm still lost on how to overlay online map on dwg. However when I assign coordinates system to my dwg(i didn't use geographic location command), i'm ok.

I assume, that by exporting dxf from qgis, dxf has already coordinates system assigned.The reason i believe so, is the property of that vector layer..see image above.



i'm sorry if I'm being silly



Edited by NoroZorro
Link to post
Share on other sites
TerryDotson
22 hours ago, NoroZorro said:

 When I add vector layer in qgis and look at the property of that layer i get this see image.



In AutoCAD Map3D, you need to use the ADESETCRDSYS command to assign the coordinate system to the DWG.  If you are confident QGIS has found the right system you can try assigning it, otherwise consult a surveyor.  Once you have the proper system assigned (assuming the coordinates of the drawing are correct) you will be able to merge external information, export, etc.



Update: I assigned CAN83-8 to the drawing file and exported come content to KML, viewed it in Google Earth and (at a glance) it appears to align properly.

Edited by TerryDotson
  • Thanks 1
Link to post
Share on other sites
