Debalance Posted October 26, 2019 Share Posted October 26, 2019 (edited) Many users are faced with the task of calculating the area when editing various drawings in the process of working in AutoCAD. There are several ways to calculate the area in AutoCAD. Let's take a closer look at these methods and analyze their strengths and weaknesses. Getting the area value from the properties of an object. If such a enclosed shape is formed by one object, for example, a circle, enclosed polyline or region, then its area value can be getted from the properties of this object. The property palette can be opened pressing Ctrl + 1. The _LIST command also allows you to get the area value from the properties of the enclosed object. It should be noted that the manipulations associated with getting the values of the areas of a large number of such objects can be quite time-consuming. If there is a need to calculate the area of the enclosed shape formed by the connection or intersection of various types of objects, the complexity of calculating the area such a shape usually increases. The fact is that the user has to use some AutoCAD tool to create an additional enclosed object in place of this shape, for example using the _BOUNDARY, _PLINE commands or create a hatch object using the _HATCH command. It should be remembered that such a redundant object is likely to require subsequent removal at the end of all the manipulations necessary to calculate the area in AutoCAD. The drawbacks of this method include all the drawbacks characteristic of these commands (_BOUNDARY, _HATCH) associated with inaccuracy, and sometimes the impossibility of constructing some boundaries. Calculating the area of an enclosed shape using the _AREA command. There is another way to get the area of eclosed shape in the standard set of AutoCAD tools - this is the _AREA command. This command is specifically intended to quickly calculate the area of such a shape without additional creating of an enclosed object. The obvious advantages of the _AREA command include the ability to get the area value of a shape that have gaps along the outline. But basically this method is more suitable for calculating the areas of simple polygons. When working with large and complex enclosed shapes, this method demonstrates very mediocre performance, because in fact, the user has to manually (point by point) re-draw boundary of this shape. If the boundary elements include various kinds of splines, then the exact calculation of the area in this case is a big question due to the limited capabilities of the _AREA command when working with similar objects. Calculating the area of any enclosed shape in AutoCAD using AreaTester free plugin. Currently, one of the most effective methods for calculating the area of any enclosed shape in AutoCAD is the method using the AreaTester free plugin. In this case (if plugin is installed into AutoCAD environment), it becomes possible to calculate not only the areas of enclosed objects, such as a polylines or circles, but also any other shapes formed by the intersection and connection of various types of objects, which include lines, arcs, splines and many other AutoCAD basic objects. At the same time, to calculate the area of any enclosed shape, you only need to point the crosshair of the cursor on it and the area value will be instantly displayed in the context window above the cursor. In addition, the user can create the necessary list of the areas in the main application window for the further work. All these areas are summed automatically in the created list. The total result of the summation is displayed at the bottom of the main window of the app. One of the key features of AreaTester, compared to the standard AutoCAD tools described above, is the ability to determine the area value of any enclosed shape excluding the areas formed by objects that have got inside such an shape (the so-called "islands"). This option significantly simplifies the user’s work on calculating areas in AutoCAD, eliminating the need for additional mathematical operations. Additional features of the AreaTester for AutoCAD free plugin: - Automatic calculation of the all areas in a drawing. - Marking of the areas directly in a drawing. - Exporting the generated list of areas to the clipboard or some convenient data format (* .txt, * .csv). - Adding the table of the area list to a drawing. Download AreaTester. Edited June 28, 2022 by Debalance Quote Link to comment Share on other sites More sharing options...
andreabag Posted April 27, 2020 Share Posted April 27, 2020 Hi, I tried the plugin! congratulations is great! I would like to ask you if you can change the "index" field by replacing "Area_" with something else? Bye AndreaBag 1 Quote Link to comment Share on other sites More sharing options...

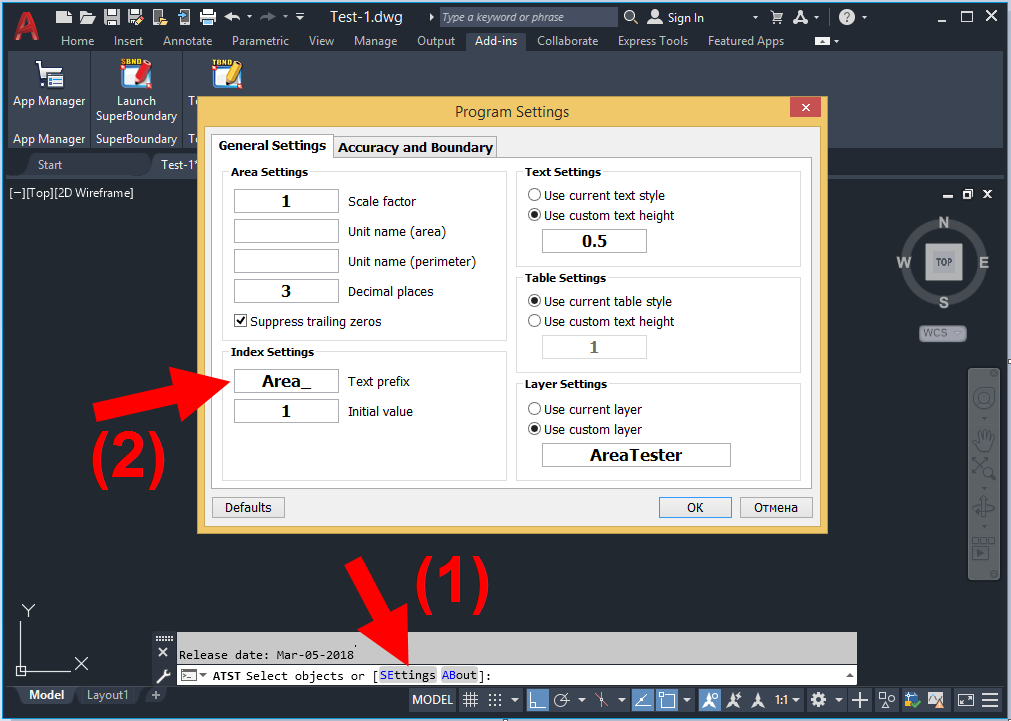

Debalance Posted April 27, 2020 Author Share Posted April 27, 2020 Hi, andreabag! After lauching the app at the command line, you need to select the "Settings" option (1). After that, in the dialog box, you can set a text index prefix (2). Quote Link to comment Share on other sites More sharing options...

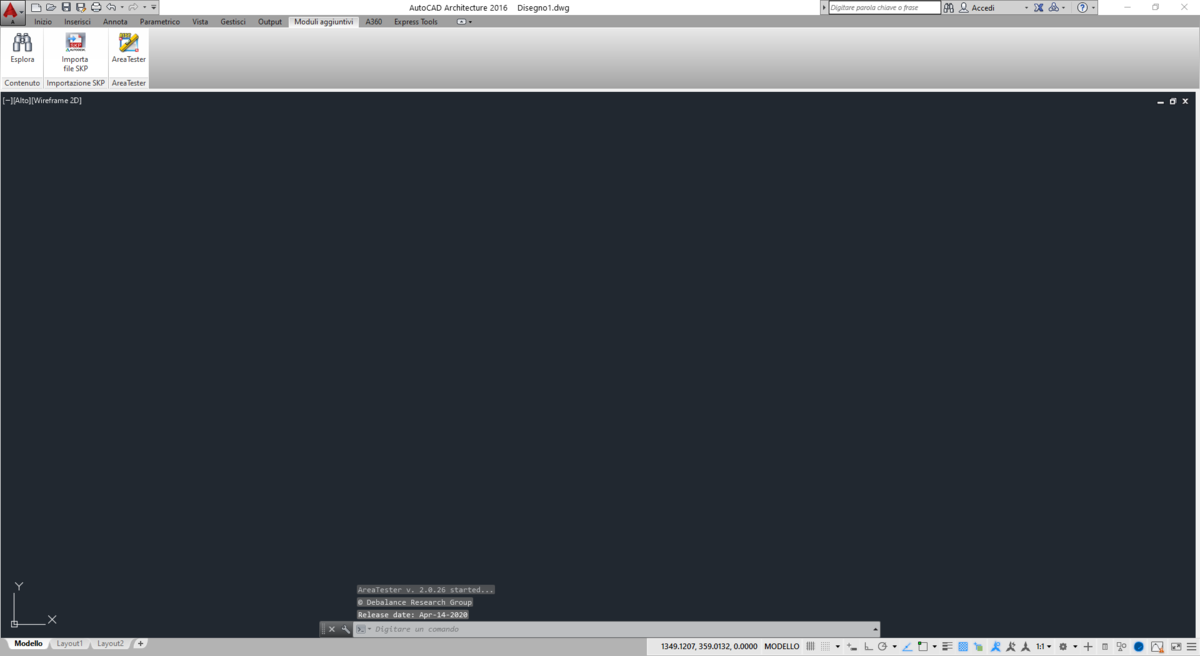

andreabag Posted April 27, 2020 Share Posted April 27, 2020 I don't see these options when I launch the app ...but the app only works if I first select the objects and then launch it.can you help me?I'll show you a screenshot Thanks Quote Link to comment Share on other sites More sharing options...

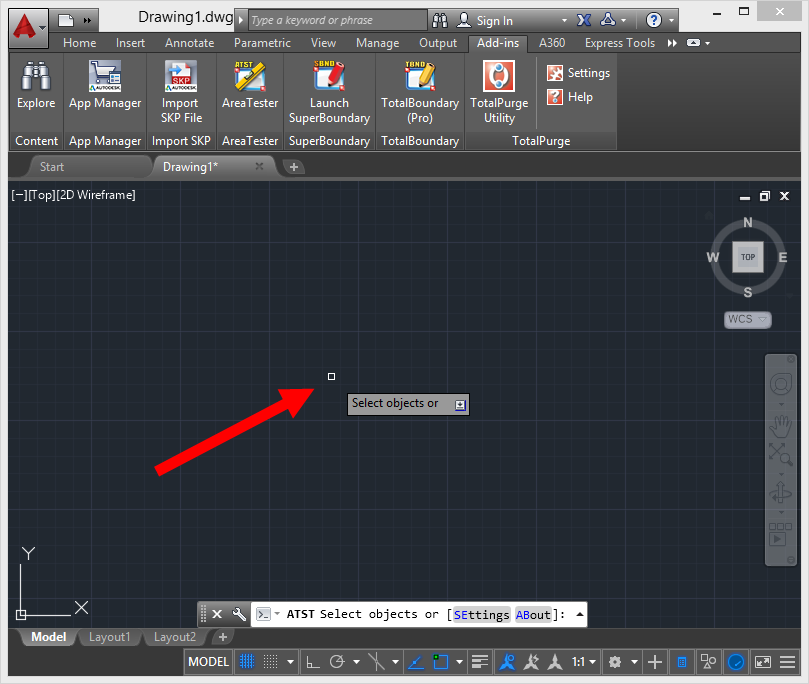

Debalance Posted April 27, 2020 Author Share Posted April 27, 2020 What happens if you just click on the icon without objects selection? Quote Link to comment Share on other sites More sharing options...
Debalance Posted April 27, 2020 Author Share Posted April 27, 2020 Try manually entering the _ATST command in the command line. Quote Link to comment Share on other sites More sharing options...

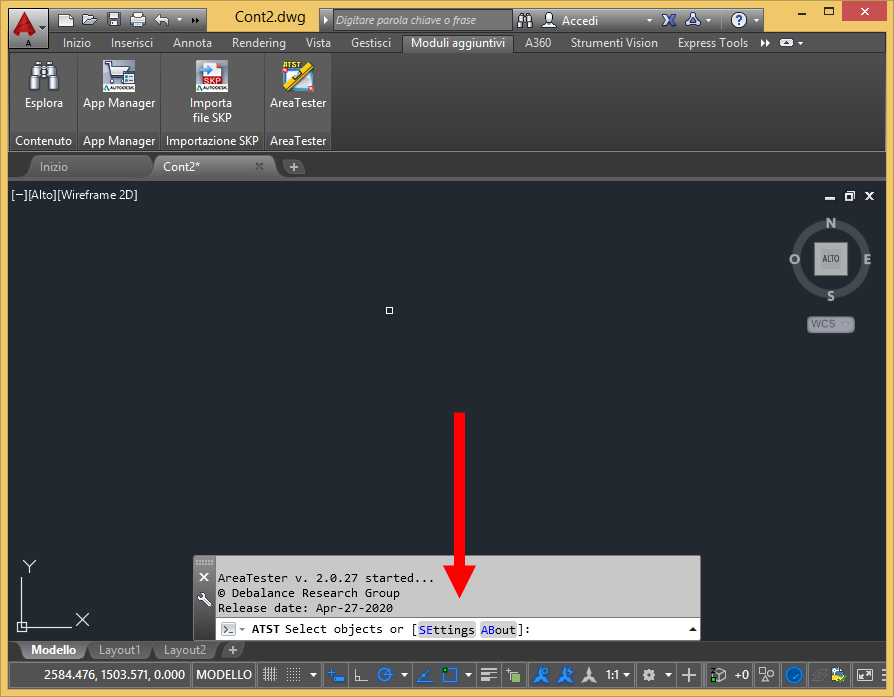

andreabag Posted April 27, 2020 Share Posted April 27, 2020 2 hours ago, Debalance said: What happens if you just click on the icon without objects selection? Nothing like in the screen shotI must first select objects then click on the icon. 45 minutes ago, Debalance said: Try manually entering the _ATST command in the command line. Same thing I wrote above ... Quote Link to comment Share on other sites More sharing options...
Debalance Posted April 27, 2020 Author Share Posted April 27, 2020 Can you enter the following command: _ATST SE Quote Link to comment Share on other sites More sharing options...
andreabag Posted April 27, 2020 Share Posted April 27, 2020 9 minutes ago, Debalance said: Can you enter the following command: _ATST SE I'm sorry but I can't write a command followed by a space ...is considered to be Enter... Quote Link to comment Share on other sites More sharing options...
Debalance Posted April 27, 2020 Author Share Posted April 27, 2020 Don't you see the cursor too? Quote Link to comment Share on other sites More sharing options...

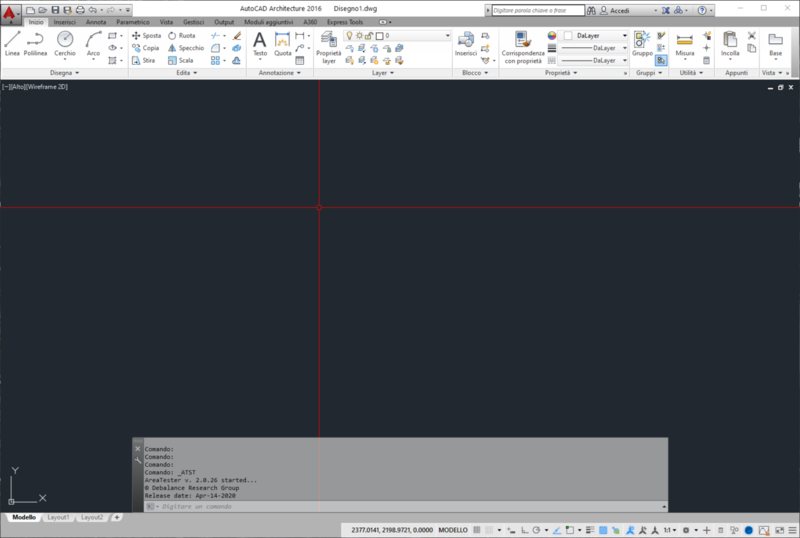

andreabag Posted April 27, 2020 Share Posted April 27, 2020 1 hour ago, Debalance said: Don't you see the cursor too? I'm sorry no... If I don't select anything, the app starts and ends without allowing me to do anything. Quote Link to comment Share on other sites More sharing options...
BIGAL Posted April 27, 2020 Share Posted April 27, 2020 This is a exe program so not sure how many will download and try, have you posted to Autodesk exchange for them to certify is ok ? Quote Link to comment Share on other sites More sharing options...
Debalance Posted April 28, 2020 Author Share Posted April 28, 2020 13 hours ago, andreabag said: I'm sorry no... If I don't select anything, the app starts and ends without allowing me to do anything. I have tested the app on the Italian version of AutoCAD and found a localization bug. I updated the AreaTester app. You can download the new version via this link. Now the app should work correctly: Thank you for your assistance! Quote Link to comment Share on other sites More sharing options...
andreabag Posted April 28, 2020 Share Posted April 28, 2020 1 hour ago, Debalance said: Thank you for your assistance! Hi Perfect! I installed the new version and everything works fine. Thanks to you, it was a pleasure to be able to help you! 1 Quote Link to comment Share on other sites More sharing options...
Debalance Posted April 28, 2020 Author Share Posted April 28, 2020 11 minutes ago, andreabag said: Perfect! I installed the new version and everything works fine. Thank you for your contribution to updating the app. I will be happy to answer any questions about using the AreaTester. Quote Link to comment Share on other sites More sharing options...
