Recommended Posts

pmadhwal7

is possible to align block(reference file attached) with text or polyline or i have n lsp which place sheet number text as i want so is is possible also place arrow with those text, both dwg and lsp i attached here,

Drawing2.dwg Sheet Numbring.lsp

Share this post


Link to post
Share on other sites
hanhphuc
Posted (edited)

You get no help then need to do it by yourself.



suggestion: in Layout (paper space) make sure layout name is numerical.

1. Insert your arrow block eg: layout 01

2. make 2 field objects

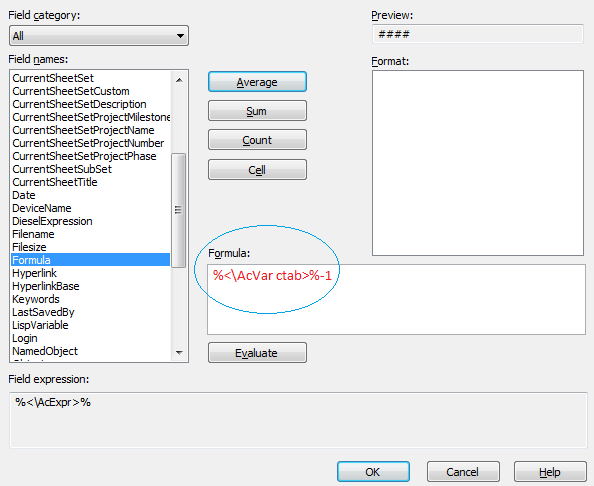

command: FIELD

in Field category -> All -> Formula

copy this expression

Quote






%<\AcVar ctab>%-1

%<\AcVar ctab>%+1






to formula space




3. evaluate and insert 'field-text' in layout

4. manually align 'field text' with the arrow block

5. Select aligned arrows blocks & texts, Copy <Crtl^C>  then paste to others layout eg: 02, 03, 04 etc..

   the 'sheet No: ###' it will be updated automatically according to layout name









Edited by hanhphuc

Share this post


Link to post
Share on other sites
pmadhwal7
On 1/5/2020 at 2:38 PM, hanhphuc said:

You get no help then need to do it by yourself.



suggestion: in Layout (paper space) make sure layout name is numerical.

1. Insert your arrow block eg: layout 01

2. make 2 field objects

command: FIELD

in Field category -> All -> Formula

copy this expression

to formula space




3. evaluate and insert 'field-text' in layout

4. manually align 'field text' with the arrow block

5. Select aligned arrows blocks & texts, Copy <Crtl^C>  then paste to others layout eg: 02, 03, 04 etc..

   the 'sheet No: ###' it will be updated automatically according to layout name









sir i tried this method but not able to use can u create a video for me

Share this post


Link to post
Share on other sites
hanhphuc



well, i think field-attributed block is better than align MTEXT as mentioned in my previous post



3 hours ago, pmadhwal7 said:

sir i tried this method but not able to use can u create a video for me



$0.02 making a drawing faster than making a video !!



download this example



sheet no.dwg



 In layout 01 you will see this 2 blocks

Sheet No: 00            Sheet No: 02

<----------             ---------->



simply copy both blocks from layout 01 & paste it to other layout 02, 03, etc..

command: regen









  • Like 1

Share this post


Link to post
Share on other sites
pmadhwal7

thanks sir.....🙂

Share this post


Link to post
Share on other sites
pmadhwal7
On 1/7/2020 at 6:54 PM, hanhphuc said:



well, i think field-attributed block is better than align MTEXT as mentioned in my previous post





$0.02 making a drawing faster than making a video !!



download this example



sheet no.dwg 348.13 kB · 2 downloads



 In layout 01 you will see this 2 blocks


Sheet No: 00            Sheet No: 02

<----------             ---------->

not working on model space





On 1/7/2020 at 6:54 PM, hanhphuc said:

simply copy both blocks from layout 01 & paste it to other layout 02, 03, etc..

command: regen











Share this post


Link to post
Share on other sites
Roy_043



On 1/5/2020 at 10:08 AM, hanhphuc said:

make sure layout name is numerical



On 1/11/2020 at 5:08 AM, pmadhwal7 said:

not working on model space



Edited by Roy_043
  • Thanks 1

Share this post


Link to post
Share on other sites
Roy_043

The provided solution will only work for layouts that have a 'numerical' name. 'Model' is NOT numerical.

Share this post


Link to post
Share on other sites
BIGAL

In a different way model is numeric if you look at taborder Model is always 0.



Same as you can have layouts with any name and number suffix but sheet number will be correct using taborder value ie the order you have arranged them in.



Recent post.



(setq doc (vla-get-activedocument (vlax-get-acad-object)))
(setq x '())
(vlax-for lay (vla-get-Layouts doc)
(setq x  (cons (strcat (vla-get-name lay) " " (rtos (vla-get-taborder lay) 2 0)) x))
)

("Model 0" "Layout2 2" "Layout1 1")

Edited by BIGAL

Share this post


Link to post
Share on other sites
hanhphuc
15 hours ago, pmadhwal7 said:

please check my sample dwg

sample arrow.dwg 121.63 kB · 2 downloads



if you insist using in model space, then my previous solution won't work!

stop making things complicated,

1. either use 'sheet no.dwg' as templete (copy 'arrow.dwg' then pasteorig to 'sheet no.dwg 'model )or..

2. copy field-attributed-arrow from 'sheet no.dwg' to you 'sample arrow.dwg's LAYOUT / paper space NOTin Model space!!!

3. try learing your own arrow LISP routine which satisfying your requirement :)



Share this post


Link to post
Share on other sites
pmadhwal7
6 minutes ago, hanhphuc said:



if you insist using in model space, then my previous solution won't work!

stop making things complicated,

1. either use 'sheet no.dwg' as templete (copy 'arrow.dwg' then pasteorig to 'sheet no.dwg 'model )or..

2. copy field-attributed-arrow from 'sheet no.dwg' to you 'sample arrow.dwg's LAYOUT / paper space NOTin Model space!!!

3. try learing your own arrow LISP routine which satisfying your requirement :)



actually sir it should shown in model space like my arrow and sheet number but when i am working with ur method sheet number is not showing that's y i also attached my lsp which only give me sheet number not arrow and rotating arrow and arranging them taking lots of time

Share this post


Link to post
Share on other sites
pmadhwal7

sir i have lsp which align text with polyline is it possible that it works on arrow or block too?? attachment available u can check

tr.lsp

Share this post


Link to post
Share on other sites
pmadhwal7
8 hours ago, BIGAL said:

In a different way model is numeric if you look at taborder Model is always 0.



Same as you can have layouts with any name and number suffix but sheet number will be correct using taborder value ie the order you have arranged them in.



Recent post.




(setq doc (vla-get-activedocument (vlax-get-acad-object)))
(setq x '())
(vlax-for lay (vla-get-Layouts doc)
(setq x  (cons (strcat (vla-get-name lay) " " (rtos (vla-get-taborder lay) 2 0)) x))
)

("Model 0" "Layout2 2" "Layout1 1")

sir...can u explain it how to use this?

Share this post


Link to post
Share on other sites
BIGAL

Redid it to make more useable the list produced is the layout name and the order number of the layout



(setq doc (vla-get-activedocument (vlax-get-acad-object)))
(setq lst '())
(vlax-for lay (vla-get-Layouts doc)
(setq lst  (cons (list (vla-get-name lay) (vla-get-taborder lay)) lst))
)

(("Model" 0) ("Layout2" 2) ("Layout1" 1)) just use nth etc of a list

Edited by BIGAL
  • Confused 1

Share this post


Link to post
Share on other sites
ronjonp

@BIGAL

FWIW you don't need to create an empty list when using CONS.

(setq doc (vla-get-activedocument (vlax-get-acad-object)))
(setq lst '())
(vlax-for lay (vla-get-Layouts doc)
(setq lst  (cons (list (vla-get-name lay) (vla-get-taborder lay)) lst))
)
Edited by ronjonp
  • Confused 1

Share this post


Link to post
Share on other sites
BIGAL

Ronjonp your right, just a habit making sure have not used elsewhere or in a repeat etc. Some one else's code may have used lst, ss is pretty common for selection set as an example.

Share this post
