AbdRF

Hi all ,
I want to draw polygonal borders across all the rooms on the floorplans. Currently ,I am drawing manually from room to room picking points.
Is there any way it can be make quick through lisp or any other way?

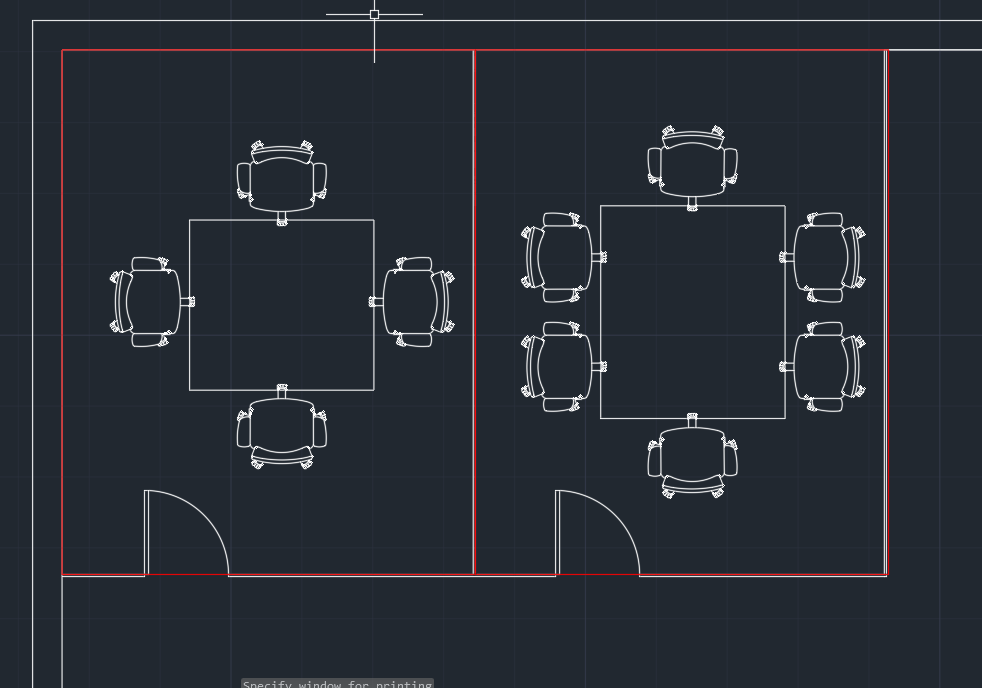

I have attached the below image showing what I want as the end result.(This is one of the case ,there are variety of the floorplan)
Any suggestion/feedback will be appreciated.Thanks

Share this post


Link to post
Share on other sites
BIGAL

Using Bpoly will do what you want but for it to work you can leave table and chairs displayed, you must have a line across the doorway put on a "no plot" layer, turn off layer doors. easiest way is to use layiso, and pick wall and false door layer. Can turn a layer back on or add before using Bpoly.





Share this post


Link to post
Share on other sites
AbdRF

@BIGAL
Thanks  for your help.But bpoly is taking quite long time and is even creating boundary over the room furnitures.I am attaching a sample dwg. Please have a look.Thanks


sample plan.dwg

Share this post


Link to post
Share on other sites
Roy_043

@AbdRF Are you aware that there are two slightly shifted, superimposed plans in your DWG?

Share this post


Link to post
Share on other sites
AbdRF

@Roy_043

I realised this when you pointed it out.I have corrected it
I am attaching the revised sample dwg.
Thanks

sample plan-v2.dwg

Share this post


Link to post
Share on other sites
BIGAL

The door openings are causing problems with bpoly. I used layiso.



Just a comment some rooms have the furniture on the walls layer, to get automation to work need as few problems as possible.



There are some problems making bpoly work

Valid boundary not found. Adjust the gap tolerance value
if the boundary should be considered closed.

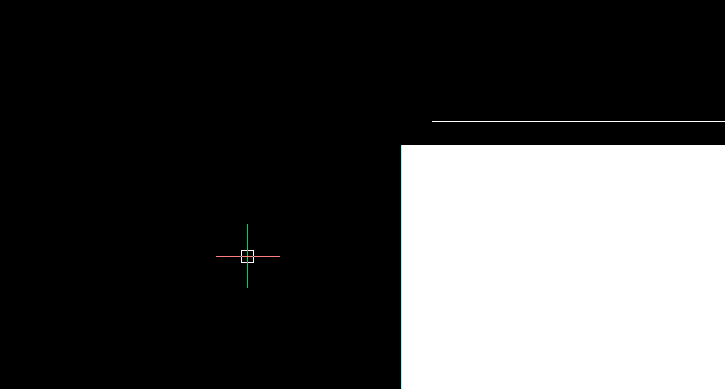

like this stray white line.




You have pline walls with a thickness that's the white square in the image, so no true connecting lines. just started looking spent 10 minutes already and not made a boundary or it will be wrong shape look at columns.

Edited by BIGAL

Share this post


Link to post
Share on other sites
AbdRF

Thanks @BIGAL
Appreciate your help.


Share this post


Link to post
Share on other sites
BIGAL

If drafting is not correct it just makes it so hard to get correct answers, copy the dwg and explode all the pline with width and have a look at the non joining intersections.

Share this post


Link to post
Share on other sites
