CALC Cut & Fill Length In section CIVIL 3d ---- PLZ HELP !

Recommended Posts

woria2003

Hello 🙂

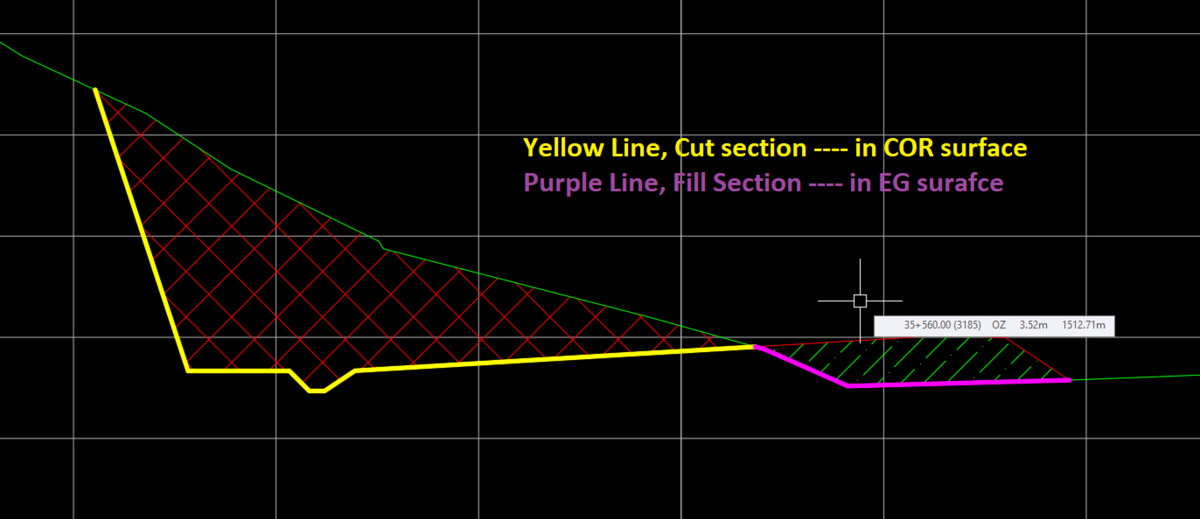

To do part of the project, I need to calculate the length of CUT section in civil 3
d and Length Of FILL section.

like attached Pic.

PLZ ---- HELP 🙃


Share this post


Link to post
Share on other sites
hosneyalaa

Attached auto cad file example



  • Thanks 1

Share this post


Link to post
Share on other sites
BIGAL

Dont forget X & Y scale needed.



There was a post about doing volumes automatically I think over at Forums/autodesk may be useful save some brain cells thinking about code.



There is some manual ways copy  all xsects block and rescale so 1:1 at true size ie metres etc, there is a break pline at point again I think it was forums/autodesk.



Have to do something now will try later to find very simple 2 pick.

Edited by BIGAL
  • Thanks 1

Share this post


Link to post
Share on other sites
woria2003

@BIGAL

Hi , the section is too many , and is not one section .

Share this post


Link to post
Share on other sites
hosneyalaa

;;; drawpolyonsection

;;; http://www.theswamp.org/index.php?topic=45401.msg505671#msg505671


(defun c:drawpolyonsection (/ datumpts doc dtm grnd grndpts mspace pline prunedpts sctnvw)

  ;;select vla-object
  (defun vl-sel (msg / ent)
    (if (setq ent (car (entsel msg)))
      (vlax-ename->vla-object ent)
    )
  )

  ;;convert a C3D section object to a list of points from which a polyline
  ;; may be created
  (defun getpointlist
         (sctn sctnvw / links idx link start end ptlist x y)
    (setq links (vlax-get-property sctn 'links))
    (setq idx -1)
    (while (< (setq idx (1+ idx)) (vlax-get links 'count))
      (setq link (vlax-invoke links 'item idx))
      (vlax-invoke-method
        sctnvw
        'FindXYAtStationOffsetAndElevation
        0
        (vlax-get link 'startpointx)
        (vlax-get link 'startpointy)
        'x
        'y
      )
      (setq start (cons x y))
      (vlax-invoke-method
        sctnvw
        'FindXYAtStationOffsetAndElevation
        0
        (vlax-get link 'endpointx)
        (vlax-get link 'endpointy)
        'x
        'y
      )
      (setq end (cons x y)
      )
      (if (= (vlax-get link 'type) 0)
        ;;this link is displayed
        (progn
          (if (not (member start ptlist))
            (setq ptlist (cons start ptlist))
          )
          (if (not (member end ptlist))
            (setq ptlist (cons end ptlist))
          )
        )
      )
    )
    (setq ptlist (reverse ptlist))
  )

  (defun flattenlist (lst / result)
    (foreach l lst
      (setq result (cons (car l) result)
            result (cons (cdr l) result)
      )
    )
    result
  )


  ;;selct the ground section, then the datum section, then the sectionview
  (setq grnd   (vl-sel "\nSelect ground section: ")
        dtm    (vl-sel "\nSelect datum section: ")
        sctnvw (vl-sel "\nSelect SectionView: ")
  )
  ;;get the points, all start from left and go to the right
  (setq grndpts  (getpointlist grnd sctnvw)
        datumpts (getpointlist dtm sctnvw)
  )


  ;;use the points to construct pline. Omit the ground points outside the limits of the datum
  (setq prunedpts nil)
  (foreach pt grndpts
    (if (and (> (car pt) (caar datumpts))
             (< (car pt) (car (last datumpts)))
        )
      (setq prunedpts (cons pt prunedpts))
    )
  )
  (setq doc    (vla-get-activedocument (vlax-get-acad-object))
        mspace (vla-get-modelspace doc)
  )
  (setq pline (vlax-invoke
                mspace
                'addlightweightpolyline
                (reverse (flattenlist (append datumpts prunedpts)))
              )
  )
  (vla-put-closed pline :vlax-true)
  (princ)
)


;;select vla-object
(defun vl-sel (/ ent)
  (if (setq ent (car (entsel "\nSelect object: ")))
    (vlax-ename->vla-object ent)
    )
  )

;;convert a C3D section object to a list of points from which a polyline
;; may be created
(defun getpointlist (sctn / links idx link start end ptlist)
  (setq links (vlax-get-property sctn 'links))
  (setq idx -1)
  (while (< (setq idx (1+ idx)) (vlax-get links 'count))
    (setq link  (vlax-invoke links 'item idx)
          start (cons (vlax-get link 'startpointx) (vlax-get link 'startpointy))
          end   (cons (vlax-get link 'endpointx) (vlax-get link 'endpointy))
    )
    (if (not (member start ptlist))
      (setq ptlist (cons start ptlist))
    )
    (if (not (member end ptlist))
      (setq ptlist (cons end ptlist))
    )
  )
  (setq ptlist (reverse ptlist))
)


;;select the ground section, then the datum section
(setq grnd (vl-sel)
      dtm  (vl-sel)
)
;;get the points
(setq grndpts (getpointlist grnd)
      datumpts (getpointlist dtm)
      )


  • Thanks 1

Share this post


Link to post
Share on other sites
BIGAL

I think this is posted over at Forums/autodesk as well and a solution suggested was to use break pline with object that does what is required. It is a seperate post, pretty sure posted post link.
