How to create Dynamic Block that scales according to user's input?

[Alexv]

Hi all,



I'm having an issue trying to create a Dynamic Block that scales in size according to the user's input value.

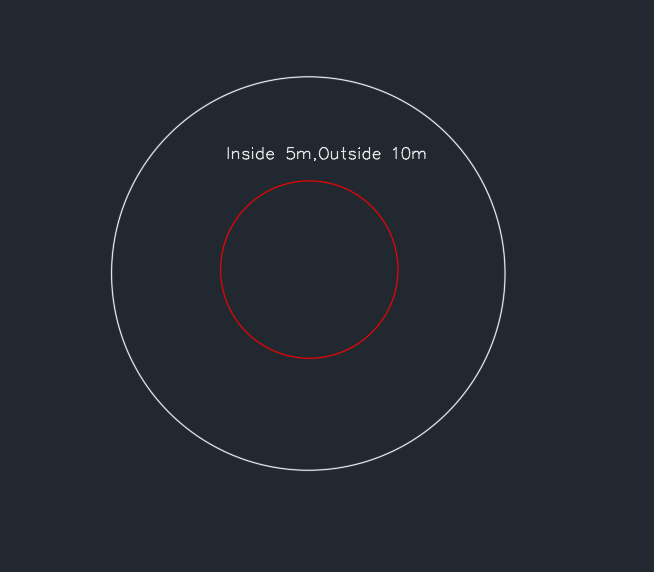

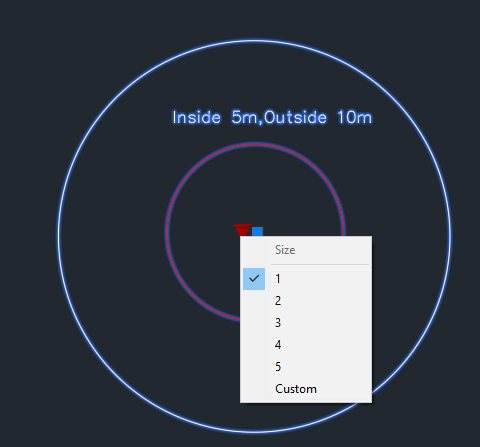

For example, I have 2 circles, 'Inside' and 'Outside'. I hope to allow the user to change the scale of the 'Inside circle' and 'Outside Circle' independently by typing in a value. Then the values would be display in a label. Please see attached diagram of what I've just described. Is it possible to have  a  few preset options for the 'Inside Circle' and 'Outside Circle' so that the user can choose from? And also allow them to enter in custom size. How would I go creating such dynamic block? The diagram is just a quick drawing and doesn't work.



Thank you and have a good day.





[mhupp]

BricsCAD cant make dynamic blocks. so for the most part I only use standard blocks.

To make it clean probably want a DCL that uses a drop down liste & pulling information with these.

https://forums.autodesk.com/t5/visual-lisp-autolisp-and-general/how-manipulate-a-dynamic-block-with-lisp/m-p/1605323/highlight/true#M208093

[BIGAL]

You want something like this "multi radio button2.lsp" and I use lee-mac dynamic block lisp. You can have up to about 20 values per column dont have to have same amount per column.Multi radio buttons 2col.lsp





if (not ah:buttscol)(load "Multi Radio buttons 2col.lsp"))
(if (= ah:but nil)(setq ah:but 1))
(if (= ah:but2 nil)(setq ah:but2 1))
(setq lst1 (list "Select rad 1" "5" "7.5" "10" "12.5" "15" "other r1"))
(setq lst2 (list "Select rad 2" "20" "25" "30" "35" "40" "other r2"))
(ah:buttscol ah:but ah:but2 "Dual Circles" lst1 lst2)
(setq ans1 (nth ah:2col ah:butlst))
(setq ans2 (nth ah:2col2 ah:butlst2))





[Alexv]

Hi everyone, thanks for all the replies. I apologies for the late reply. Work has been pretty hectic for the past week and I haven't gotten a chance to thank you guys until now.



@mhupp Thanks for the info, I will check that out and play around with it. Much appreciated it!



@BIGAL Thanks again Bigal for always helping me out. I really am grateful for the help. I'll test out the codes and see if I can get it to work for my issue.

[Alexv]

@BIGAL Hi Bigal, I tried out the lisp script you provided but I got an error message saying '; error: too few arguments'. I've been trying to resolve the issue by changing all the "ah" is the defun to "C:" and the script still wouldn't run. Any idea what is causing the issue? thanks for sharing the script. Much appreciated



I'm hoping to create a dynamic block so I could use it for the tree, the trunk diameter and the canopy diameter. Hence, I want a list of standard trunk and canopy size for the user to quickly choose from or enter in custom size. Do you think a nested dynamic block would work in this case?

[BIGAL]

Just make a dynamic block with rad1 rad2 for the circles say both 1 unit dia.



The code above  is missing a ( at start sorry. Fixed it and this is closer to what you want. In CIV3d can do TR6*3 which means a 6m tree with a 300mm trunk so i did what you want and would update a tree block.



(if (not ah:buttscol)(load "Multi Radio buttons 2col.lsp"))
(if (= ah:but nil)(setq ah:but 1))
(if (= ah:but2 nil)(setq ah:but2 1))
(setq lst1 (list "Select spread 1" "2" "5" "10" "12.5" "15" "other r1"))
(setq lst2 (list "Select trunk" "0.3" ".45" "0.6" "0.9" "1.2" "other r2"))
(ah:buttscol ah:but ah:but2 "Dual Circles" lst1 lst2)
(setq ans1 (atof (nth ah:2col ah:butlst)))
(setq ans2 (atof (nth ah:2col2 ah:butlst2)))



You are lucky here is treedyn.dwg, How do you intend to match to a point ?



Edited October 23, 2021 by BIGAL

[BIGAL]

had trouble adding dwg





treedyn.dwg

[Alexv]

@BIGAL Thankyou so much Bigal, that works great! I'm going to play around with it and see if I could add a dynamic field text label that displays the trunk and canopy diameters. Will let you know how that goes.



Thanks again everyone. Y'all the best!

[BIGAL]

For anyone else bedit the treedyn block and look at dynamic properties.
