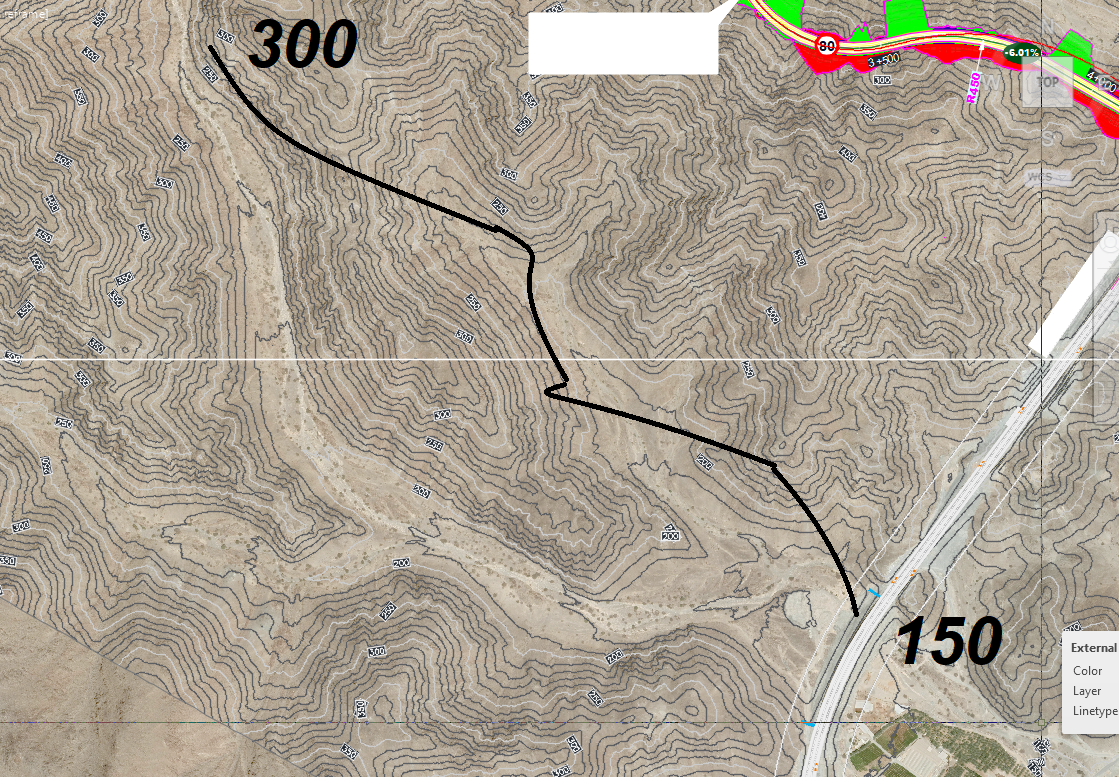

afrazahmed Posted December 5, 2021 Share Posted December 5, 2021 I need one help If we have terrain data any format XML POINT CLOUD .TXT .CSV contour here I want design highway/road is there any software or application in civil 3d bricscad 1- If we assign grade suppose 6% to reach 150 elevation to 300 elevation with automated generate alignment profile with specific curve radius 2- Is there any option to generate automated alignment if we assign 2 point start and end in result we got alignment 3- I want to generate alignment in high elevation terrain location which software is more helpful 5- If we have ground data how can create highway Quote Link to comment Share on other sites More sharing options...
BIGAL Posted December 6, 2021 Share Posted December 6, 2021 (edited) I thought you had enquired already about Civil Site Design ? If you want a full road design package then you will have to pay for it. Are you being paid for the project ? There was some software out there that looked at forward direction and match a slope. Civ3d does pick 2 points and label slope. A bit of trail and error then a final alignment. Edited December 6, 2021 by BIGAL 1 Quote Link to comment Share on other sites More sharing options...
afrazahmed Posted December 6, 2021 Author Share Posted December 6, 2021 Which software I can use for this purpose could you please share... tutorial Quote Link to comment Share on other sites More sharing options...
BIGAL Posted December 6, 2021 Share Posted December 6, 2021 Quote Link to comment Share on other sites More sharing options...
afrazahmed Posted December 7, 2021 Author Share Posted December 7, 2021 any video tutorial ? for this Quote Link to comment Share on other sites More sharing options...

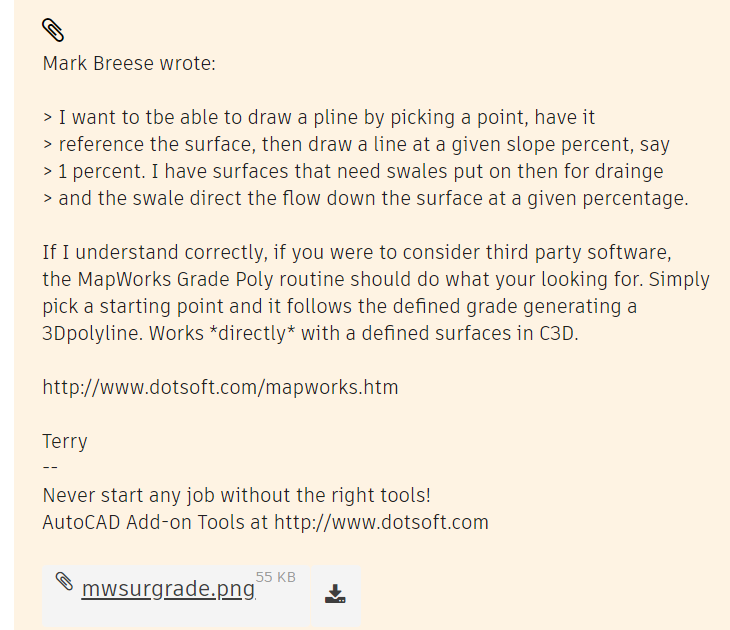

TerryDotson Posted December 8, 2021 Share Posted December 8, 2021 Thanks @BIGAL for the mention. A video would be pretty boring since you simply supply parameters such as grade and pick a starting point, so here is a screen capture. This is the same add-on I recommended to the OP over in the BricsCAD forum for converting multiple polylines to alignments. Quote Link to comment Share on other sites More sharing options...
afrazahmed Posted December 8, 2021 Author Share Posted December 8, 2021 But I could not found this Option where is Grade Polyline. in menu if if send more secreenshoot or vedio link please Quote Link to comment Share on other sites More sharing options...
afrazahmed Posted January 25 Author Share Posted January 25 can you help me about this application to use this application dotsoft we need to create surface by dotsoft of c3d tin surface enough? Quote Link to comment Share on other sites More sharing options...
