Found 3 results

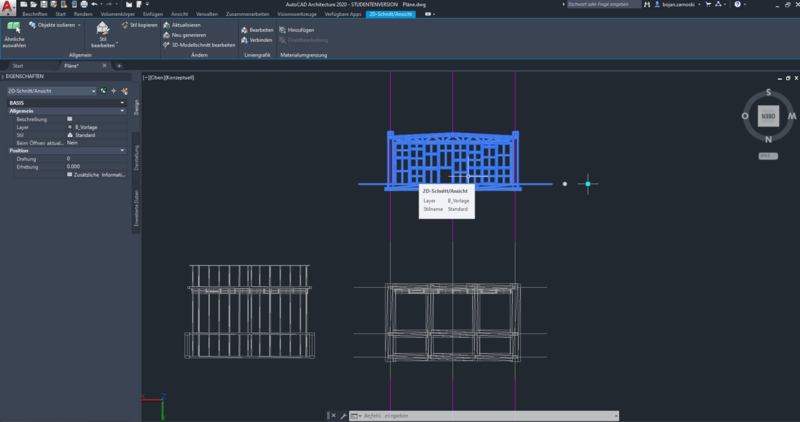

  1. Hello fellow Autocad users, I've recently recieved a messy 3d model (consisting of various geometry types) in order to draw section plans from them. First I tried to generate a floorplan with Autocads "Generate Section/Elevation" tool, thus recieving the projection as intelligent object. In order to draw the plans cleanly from the messy projection I want to transform the projection into a linegrafic, but I can't find a way to edit the projections without crashing Autocad. I also can't use flatshot since the projection is not a Brep. Is there any way to transform the projection into a line grafik, or another alternative to generate cross sections? I've attached an image to depict the problem (I use a german version of AutoCad architecture 2020). Thank you in advance!
  2. Hi There, Could do with some help/advice on this matter: I've completed a set of drawings - floor plans and elevations - with ACA. Now I'm creating sheets and I setup the pages in A3 size. Most of my views, when drag and dropped from the project bar onto the A3 sheets fit nicely except one. This is the Site Plan which longer than the others since it includes the surrounding landscape. My initial solution was to change the sheet size to A2. But is there a way to scale the drawing to fit the A3 page? Should I go to the construct and use the scale tool? I'm thinking select all, scale it down by 50% so the scale changes to 1:100 to 1:200. What if I want to scale it to 1:150, then I scale it down by 66.666%? That doesn't sound quite right. I know for this particular project I can just change the sheet to A2, but for future reference and of course for my own knowledge I'd like to know what the best options are... thanks a bunch!!
  3. section i created in autocad doec not shows the aec objects i have copied from autocad architecture. i don't know whats the reason. is there some way to creat section of aec objects in autocad?
