Drawing a Roof in 3D AutoCAD (HELP)

Recommended Posts

Bobzy20

Hi can anybody show me how to draw a 3D roof in AutoCAD if I provide the elevations in an AutoCAD file?



Let me know



Thanks



Bob

Share this post


Link to post
Share on other sites
ReMark

What kind of roof are you drawing?

Share this post


Link to post
Share on other sites
Jack_O'neill

You talking just a picture or construction plans?

Share this post


Link to post
Share on other sites
Bobzy20

I’m trying to create my first 3D visual using architectural plans.

I’m not sure what roof it’s called but I’ll upload the cad file tomorrow.

Share this post


Link to post
Share on other sites
Bill Tillman

I found some really good tutorials for making 3D roofs on youtube. There are lots of ways of doing it. Some are easier than others. But if you have a look on youtube you'll probably find what you want.

Share this post


Link to post
Share on other sites
ReMark

The CAD file will be most helpful as the terminology may differ depending on what side of the pond one resides. We'll be looking for it.

Share this post


Link to post
Share on other sites
Jack_O'neill

Actually, drawing roof in 3d is pretty easy to do:




Share this post


Link to post
Share on other sites
Bobzy20

Wow what type of roof is that called!?



Ok please see the attached cad file (zipped) - you will see my version of the roof although I'm not sure if that's the correct way to draw it.

Share this post


Link to post
Share on other sites
ReMark

The roof has already been constructed as a solid. I think you need to use the SHELL command next.

Share this post


Link to post
Share on other sites
Bobzy20

Yeah that's my attempt but the roof covers the front wall of the house which it shouldn't.

Also I can't shell it as it says: modelling Operation Error: No solution for a vertex.

Share this post


Link to post
Share on other sites
ReMark

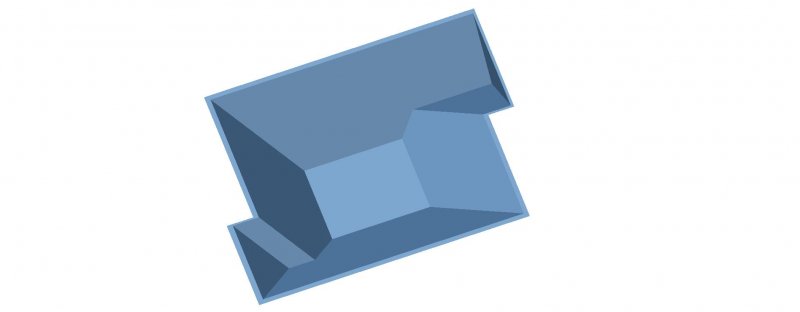

Well there is a less subtle way of doing it. Make a copy of the solid. Scale it to something like 98% of the original. Subtract one from the other. Do this with a copy of your original. Should look something like this as viewed from the underside.




Share this post


Link to post
Share on other sites
rvpas

Hi every one,



An other idea !



I had the same trouble in couple years and I noticed my model was create to far from origin and its units is millimeter.

To solve my problem I used scale command to change its scale and editing solid worked again.

So I do the same thing with your roof and shell works.



I found discussion about this problem in autodesk see link

http://forums.autodesk.com/t5/AutoCAD-2007/SOLIDS-limitations/td-p/1636625

I



I include your roof 1000 times as smal, in meter maybe it's a same problem in inch

Roof-rvpas.zip

good luck

Pascal

Share this post


Link to post
Share on other sites
ReMark

Why scale it that small? Couldn't you have just moved it closer to 0,0 if that is at the root of the problem?

Share this post


Link to post
Share on other sites
rvpas

Hi Remark,



In France, we work in meter in the construction of buildings and rarely otherwise.

For the exposed case, it was a plan of house drawn in the mm and geolocalisation with the site about X: 1500000 Y: 5200000 Z: 196000.

That's why I had the reflexe to make the same thing with the roof because I measured a door which mesuring 1200 drawing units.

And I don't change a position because the origin it was at the corner of house



Have a good day

Pascal

Share this post


Link to post
Share on other sites
Bobzy20

I was also wondering how you would go about adding roof tiles to the roof I have drawn (please see attached cad file).

This would be for rendering purposes

Thanks

Bob

Share this post


Link to post
Share on other sites
ReMark

Re: roof tiles.



Did you want to do this as a material or did you want to physically construct the tiles as solids and place them on your roof?

Share this post


Link to post
Share on other sites
Bobzy20

Can both ways be used for rendered visuals?

Share this post


Link to post
Share on other sites
ReMark
Can both ways be used for rendered visuals?

Can't say for sure. I've yet to actually do anything with materials as my line of work does not require renderings.



What kind of tile roof did you have in mind? A Spanish tile?

Share this post


Link to post
Share on other sites
ReMark

I'd call that a slate roof not a tile roof. Slate roofs are flat like the roof in your image. A tile roof, as I know it, is a tapered curve. Maybe the fact that we are two countries separated by a common language might explain the difference.



Getting back to your tile roof I think this would be ideally suited to be handled as a material.

Share this post


Link to post
Share on other sites
