Why is my AutoCAD-saved pdf file showing furry solid-hatched logo?

Recommended Posts

junehe

I am using AutoCAD 2015. I use solid hatch to fill in my logo. However, it shows very furry lines around the logo when I export it to pdf file. When I print the file, the logo looks fine. Just when I review it in pdf on computer, it looks really bad. I need to send the drawings to clients in digital file. So anyone can help me solve this problem? Thanks a lot!!! I checked every place on Internet to solve this problem but without any luck. I will be waiting for answers. Please see below attachment to see the bad effect of the logos in pdf. park_zps5d75c327.jpg


Share this post


Link to post
Share on other sites
JGA

Ar you sure it is a solid hatch & not a gradient or dense line hatch?

Can you not just use truetype text?

Share this post


Link to post
Share on other sites
ReMark

Looks bad on your screen but it prints fine? What's the problem then? Probably something to do with your display resolution or your graphics card (or onboard graphics chip).

Share this post


Link to post
Share on other sites
SLW210

Agreed, if it prints fine the problem lies in the graphics of the computer.



More info on your computer specs and PDF software would help.

Share this post


Link to post
Share on other sites
junehe

Hi JGA, can you tell me what is a truetype text? Thanks.

Share this post


Link to post
Share on other sites
junehe

Also, it's not the computer display problem. Because every computer I encountered read the file like this. so lost.

Share this post


Link to post
Share on other sites
nestly

Can you attach a dwg file containing only the logo shown in your original message

Share this post


Link to post
Share on other sites
Dana W

The limitations of the pdf program code in matching the solid hatch to the large amount of line segments in the outline of your characters are causing it. The plotter, on the other hand only prints what it sees.



What quality level did you select on your plot dialog?



Again, what are your graphics card specifications?



Can you post a drawing with just your "logo" in it, on a layout tab all set up for plotting the way you did the one you posted? If so, someone will have a look and maybe they can determine the issue.



Truetype fonts are most of the fonts available in AutoCad for text objects, mtext, dtext, dimensions, multileaders, and so on. When you are setting up a text style in the text style editor dialog, they are the fonts that have a little staggered TT in front of their name. The FIRST attached pdf shows my initials in a truetype font stretched to 12" tall plotted to a 24x36 pdf document. Notice how glass smooth the edges are. The second pdf shows your logo printed at 8" high. Look at the edges.

INITIALS.pdf

logo.pdf

Share this post


Link to post
Share on other sites
junehe

Thank you Dana! I have attached my both dwg file and pdf file for the WARE logo for your reference. If you enlarge the pdf logo, you can see those furry edges. Thank you!

ware logo.dwg

ware logo.pdf

Share this post


Link to post
Share on other sites
ReMark

I had to enlarge to over 100% just to see the furries show up. Do you also print to over 100% actual size?

Share this post


Link to post
Share on other sites
Dana W

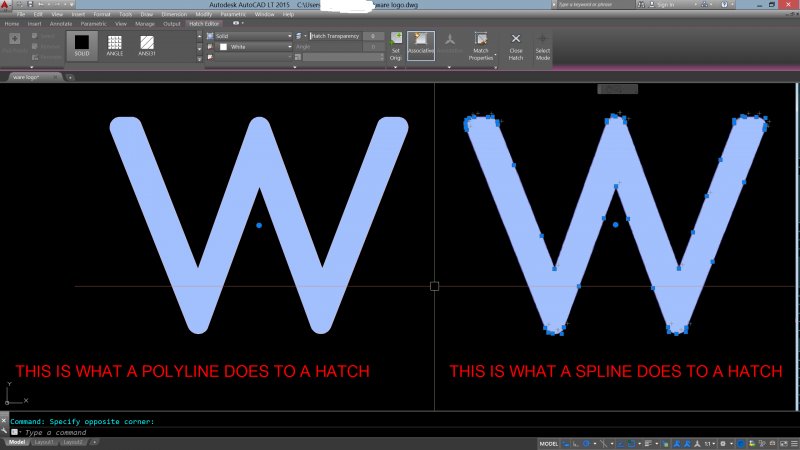

It is the splines for one thing. They are very rough, with non-tangent radii, and reverse curves. Look at the screen shot. Only the hatches are selected, not the underlying linework. The other thing is that there is a limit to what the pdf program can do with a pixel. It will not color a space smaller than one pixel.



There is also a pdf attached, and the modified copy of your dwg file. I changed the hatch color because the BLACK ones were hard to find.:shock:

ware logo dwg.jpg

ware logo-Layout1.pdf

ware logo.dwg

Share this post


Link to post
Share on other sites
junehe

Hey, I think this logo might present my issue with the problem better. Please see the attachments. When I print it out, everything looks ok. When people view it in pdf, it looks terrible.Thank you! logo problem.dwg Thank you!

logo problem.pdf

Share this post


Link to post
Share on other sites
ReMark

Didn't Dana solve the mystery behind your furry logo? See post #11.

Share this post


Link to post
Share on other sites
Dana W
Hey, I think this logo might present my issue with the problem better. Please see the attachments. When I print it out, everything looks ok. When people view it in pdf, it looks terrible.Thank you! [ATTACH]52292[/ATTACH][ATTACH]52293[/ATTACH] Thank you!
We did this already. The problem is in the execution of your linework, and the questionable resolution of the pdf driver. I am out.

Share this post


Link to post
Share on other sites
ReMark

Maybe this falls under the heading "Don't give me what I asked for, give me what I need.":?

Share this post


Link to post
Share on other sites
nestly

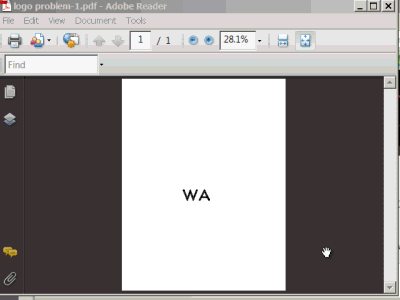

I think Dana gave the explanation for why the hatch is not smooth at very high magnification (the resolution of the PDF). Based on your comments, I'm assuming your designing a logo that will be reproduced by another application, not a "logo" to be use within something like a title block.... right?



PDF logo.gif

Share this post


Link to post
Share on other sites
ReMark

"When I print the file, the logo looks fine."



I don't understand why this isn't the defining criteria. Now, if the OP said the logo was going to be used on a company website or as part of a video conferencing seminar then maybe I could understand why he is concerned about how it displays on a screen.

Share this post


Link to post
Share on other sites
nestly



... Now, if the OP said the logo was going to be used on a company website or as part of a video conferencing seminar then maybe ....



Right... the OP didn't say, so we shouldn't be making assumptions about what's "good enough"

Share this post


Link to post
Share on other sites
ReMark

Maybe I was expecting to see this....



Help! My newly designed company logo displays on screen with a two day beard! :ouch:Can't have the company president see that.:o How can I shave off the whiskers and impress the boss?:shock:

Share this post


Link to post
Share on other sites
junehe

Dear Dana, thank you so much for your help!! So sorry I was too busy too reply in time. Your logo hatch looks much better than mine. Does it mean I need to change Spline to Polyline before I do hatch? How do I do that? Thank you very much!

Share this post


Link to post
Share on other sites
