AutoCAD Electrical - Setup the Title Block


Sanket Patil
 Share

Recommended Posts

  • Replies 22
  • Created
  • Last Reply

Top Posters In This Topic

  • ReMark

    9

  • SLW210

    1

  • Sanket Patil

    13

Top Posters In This Topic

Posted Images

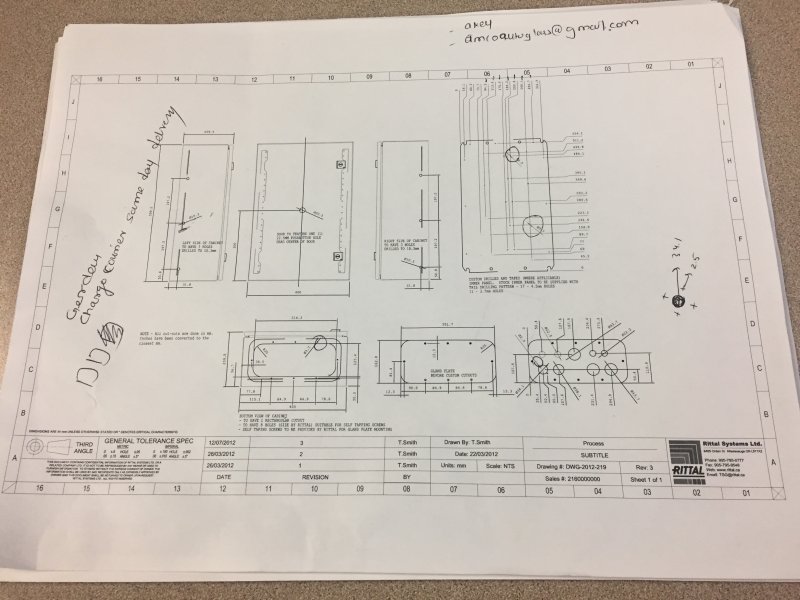

Please see the attached picture of an ideal block template that I wish to have/use...

For Example which should have alphabets in the verticals and numbers in the horizontal, the tittle block more or less like the picture.. bottom horizontal line ...


Link to comment
Share on other sites

If that's what is required then you will have to create a custom template or find one that someone else like forum member Nukecad has created and either use it "as is" or make some modifications to it in order to achieve the exact title block and border you desire. Bottom line: some work will be required on your part.
