clwsr Posted April 16, 2009 Author Share Posted April 16, 2009 When I move or copy my triangle my pic does not come with it. Quote Link to comment Share on other sites More sharing options...
clwsr Posted April 16, 2009 Author Share Posted April 16, 2009 I think I got it I was just clicking lines . I drug a box and got pie & pic. I think I can make it from here. My name is Claude. Thank you for being paitent with me. Have a Great Day! Quote Link to comment Share on other sites More sharing options...

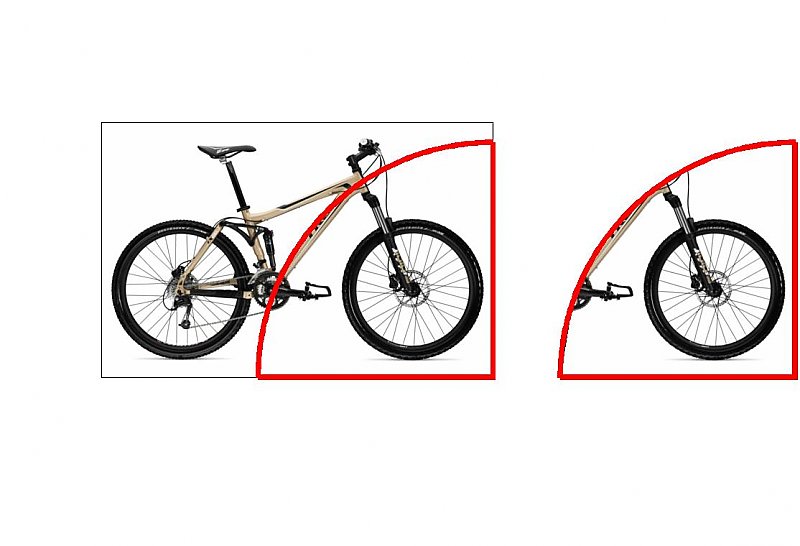

ReMark Posted April 16, 2009 Share Posted April 16, 2009 Rectangular raster image of bicycle on left with a quadrant of a circle drawn over it. Invoke Modify > Clip > Image. AutoCAD prompts you to Select image to clip. Select only the raster image. AutoCAD prompts you to Enter the image clipping option. The default is New. Accept it by pressing the Enter key. AutoCAD then asks, Enter clipping type. The default is Rectangular. You do NOT want rectangular you want Polygonal. Type the letter "P" then press the Enter key. AutoCAD prompts you to Specify first point followed by Specify next point as you make your selections. Trace your way around the pie shape back to the point you started. Press the Enter key. The raster image is now clipped in the shape that you traced. See image below on the right. Are we clear? I'm expecting you to answer with one word: crystal. Quote Link to comment Share on other sites More sharing options...
ReMark Posted April 16, 2009 Share Posted April 16, 2009 Now I must beg your leave as I have a long (65 mile) drive to make. I may or may not check back in later. However, when I do check back I'm counting on some good news for a change. Please try your best. I know you can do this. Good luck. Just saw your message Claude. You're most welcomed. Quote Link to comment Share on other sites More sharing options...

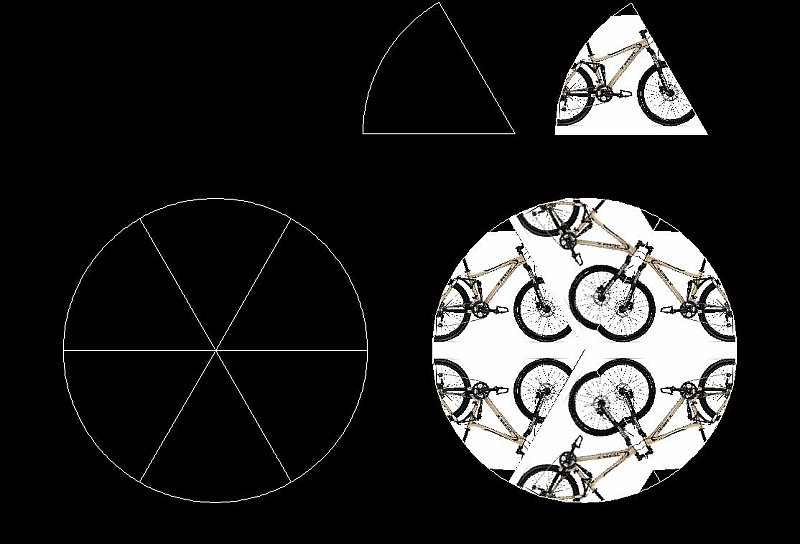

clwsr Posted April 17, 2009 Author Share Posted April 17, 2009 Here is a pic. of what you helped me achieve. Thank you so very much for helping me, Claude Quote Link to comment Share on other sites More sharing options...
Organic Posted April 17, 2009 Share Posted April 17, 2009 No pic there. Quote Link to comment Share on other sites More sharing options...
clwsr Posted April 17, 2009 Author Share Posted April 17, 2009 Quote Link to comment Share on other sites More sharing options...
ReMark Posted April 17, 2009 Share Posted April 17, 2009 Well done. Thank you for sharing that picture with us Claude. Now, what time is it? Half past the freckle and quarter of the smile? Quote Link to comment Share on other sites More sharing options...
Organic Posted April 18, 2009 Share Posted April 18, 2009 It looks very real. Quote Link to comment Share on other sites More sharing options...
