Nice work ...the rendering makes a whole lot of difference.

Hello

Have you just started using inventor Calibos and are you having a go?

Link to comment
Share on other sites

  • Replies 137
  • Created
  • Last Reply

Top Posters In This Topic

  • Hopinc

    24

  • rdharvey

    36

  • Steve_wright

    23

  • Calibos

    20

Top Posters In This Topic

Posted Images

what drawing have u done b4 then steve, i started on autocad r14 on windows 95



went thru a book by Bob Mcfarlane.. seems almost antique now by inventer standards

Link to comment
Share on other sites

Didn't do any drawing stuff before autodesk.

nearly got a job at work helping the cad manager out.... but doesn't look like it's going to happen :(..........( since i did the course i just got hooked.. ):thumbsup:

Link to comment
Share on other sites

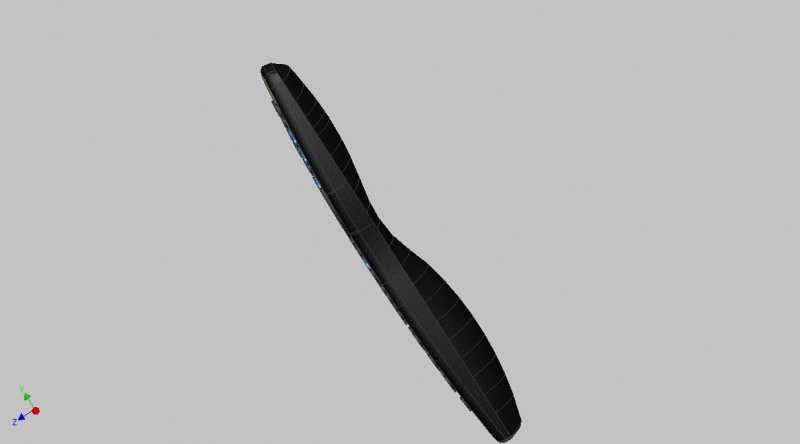

Bottom view of the sky + control



nearly finished mine ....and some bits i don't think are right but i'll ask my questions later :thumbsup:model r.jpg

Link to comment
Share on other sites

I have only been using inventor for 2 and a half months.. i used solid works and pro e at university. I like inventor though very similar to SW. So what do you guys do for work if its not cad related?



Rob

Link to comment
Share on other sites

I have only been using inventor for 2 and a half months.. i used solid works and pro e at university. I like inventor though very similar to SW. So what do you guys do for work if its not cad related?



Rob



Well, I am into photography, cycling, image retounching..

Link to comment
Share on other sites

I have only been using inventor for 2 and a half months.. i used solid works and pro e at university. I like inventor though very similar to SW. So what do you guys do for work if its not cad related?



Rob



I work in a Factory forming plastics and making emergancy doors for busses... i am

hoping to help out the cad manager in the future ....keeping my fingers crossed with that...lol

Link to comment
Share on other sites

ahh i see all sounds interesting i used to work in a factory producing label machinery... i was on the milling section although i decided it wasnt for me and went to university! luckily i got a job not long after i graduated this year!

Link to comment
Share on other sites

I'm learning a lot, but I'm still having some trouble with the render.

If I render Illustration, you can actually see the Emboss on the faceplate, but the render realistic actually makes a better looking image as far as the buttons go.

I've tried changing the colors, without much luck.




Link to comment
Share on other sites

Hi Guys,



Just thought I would call in and see how things are going. I am pleased to see that you are all making good headway.



As for those that chose to model the Sky controller, let me say how brave I think you are to have a go at it - it is anything but simple. In fact I would regard it as one of the design icons of our age. It's a masterpiece of styling.



I started to model one myself sometime ago, but after I had created the outer shape using a lot of "advanced" surfacing techniques other things got in the way and I never got around to finishing it.



Mr. Bradley, I know where you are coming from regarding rendering and it not being easy. It is something that needs a LOT of patience and practice, together with a good eye. Keep experimenting, I am sure that you will start to achieve the results you want. It does get slightly easier the more you do.



One piece of advice that I will offer is to try all the standard lighting scenarios first. Find the one that is nearest to what you want and then adjust it to suit your needs - add lights, change lighting colours, move lights, alter backgrounds and colours, etc.



Watch the demos on the internet and take it from there. No two people will ever render a model the same way.



Regards to all,



Dave

Edited by Hopinc
Link to comment
Share on other sites




Drawn part of my remote control, and have gone for something a lot less linear than most remotes.In fact there are no str8 lines on it.

Any way, i have put a couple of the pieces in an assembly, to check there fit to each other.

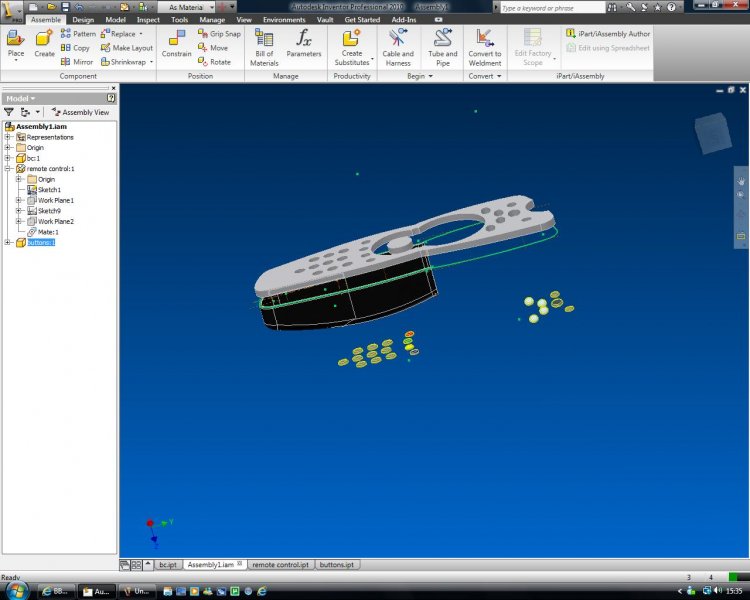

When i constrain the battery compartment, or the buttons, to the remote top they disappear to a far away place in the assembly.

The nearest i have got, is the battery compartment constrained to the original sketch.

Is inventor doing this because of the way i have drawn the top section?..(ie..curved along its length) or am i missing something.



cant attach files software wont let me(tut)..shame (.ipt invalid file)erroricon8.gif



Cheers ..Calibosicon12.gif

Link to comment
Share on other sites

As for those that chose to model the Sky controller, let me say how brave I think you are to have a go at it - it is anything but simple. In fact I would regard it as one of the design icons of our age. It's a masterpiece of styling.



I agree, it's not the easiest of items to draw and I would be more inclined to use surfacing techniques which is a little more advanced.



Saying that though. Even though it is a "harder" beginners project. At least it gives you a good insight into more advance techniques which in turn gives you a better learning experience.



Good Luck guys.

Link to comment
Share on other sites
