how to make the drawing bigger when converting to pdf

Recommended Posts

Malak Al-Hroot

Hi there ,

I've made a drawing on AutoCAD LT 2015 with a small dimensions , when converting to pdf it looks like a dot :( so how can I make it clearer ? is there anyway to draw in an A4 size , I mean it will be much easier to draw on and much better to go to your boss and say : Hey I did it !!!

Any help will be appreciated :)

Share this post


Link to post
Share on other sites
ReMark

Why not change your plot scale before creating the PDF?

Share this post


Link to post
Share on other sites
Malak Al-Hroot

Hi ReMark , so how can I do this ? am just a beginner :(

Share this post


Link to post
Share on other sites
ReMark

Via the Plot dialog box where it says Plot Scale. Disable "Fit to Paper" then go to where it says Scale and scroll through the list of available scales and click on the one you think will suit your needs best.

Share this post


Link to post
Share on other sites
Malak Al-Hroot

I've tried , but it didn't work !!

Share this post


Link to post
Share on other sites
Malak Al-Hroot

There's no command that helps me drawing on an A4 size , the autocad has an endless space that drives me crazy :??

Share this post


Link to post
Share on other sites
ReMark

Yes, AutoCAD gives the user infinite space in which to draw objects. Remember that the cardinal rule of AutoCAD is draw everything FULL size whether you are drawing a paper clip or a Boeing 777 Dreamliner.



Paper size does not enter into the equation until such time as you are ready to plot.



Are you a student?

Share this post


Link to post
Share on other sites
Malak Al-Hroot

Yes am a student

Share this post


Link to post
Share on other sites
ReMark

Are you currently taking an AutoCAD course?

Share this post


Link to post
Share on other sites
Malak Al-Hroot

Actually I had the course 3 years ago , it was such a basic course !

I have no problem in drawing complicated drawing but I face a problem when converting to pdf !

Share this post


Link to post
Share on other sites
ReMark

Were you taught how to use a paper space layout and set up a viewport?

Share this post


Link to post
Share on other sites
Malak Al-Hroot

actually not :(

Share this post


Link to post
Share on other sites
ReMark

I see. That's unfortunate but not terribly so. Would you be willing to attach a copy of the drawing to your next post? What is it that you are drawing?

Share this post


Link to post
Share on other sites
Malak Al-Hroot

Oh thanks so much ReMark , your help is much appreciated !

I'll send the drawing tomorrow since I finish my work , it's finally home time :)

Share this post


Link to post
Share on other sites
ReMark

Where are you located if I might ask?

Share this post


Link to post
Share on other sites
f700es

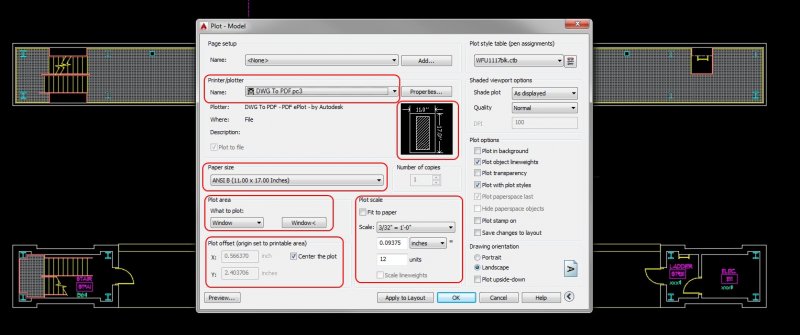

Hello Malak :) You keep saying export to PDF but in reality you print to PDF. In this you set the paper size as well as the plot scale of the finished PDF. You simply start the print/plot command and then select the appropriate printer/plotter name, in this case DWG to PDF (see attached jpg). Set your paper size and then select what you want to plot to PDF in the Plot Area. I have set it to window and then drew a window around what I want to be in the PDF. Next you set your origin and then the scale. As you can see there is a diagram that shows exactly how your selected objects will fit on the paper size you selected. After setting all these you can select Preview and see how it will really look.

Is this how you are doing it?




Share this post


Link to post
Share on other sites
RobDraw

Actually, you can "Export" to PDF. I've never used it but it looks kind of like publisher and Windows Explorer mushed together.

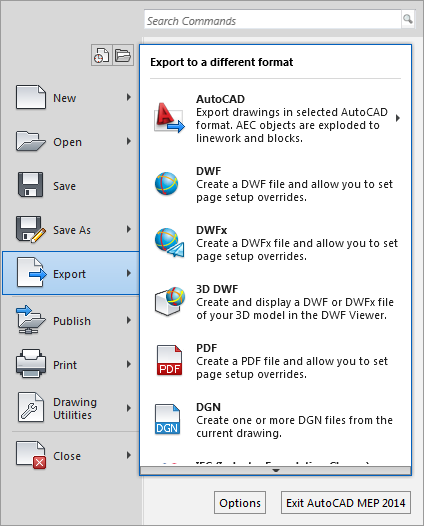

Export to PDF.png

Share this post


Link to post
Share on other sites
f700es

Yeah but that lacks the control to select what he wants to print and at what scale without a layout to use ;)

Share this post


Link to post
Share on other sites
RobDraw

But, but, but, it does have the option to override current settings even in model space.



Actually, now that I've reread the thread, the OP never even said, "export" as you stated.

Share this post


Link to post
Share on other sites
f700es
But, but, but, it does have the option to override current settings even in model space.



Actually, now that I've reread the thread, the OP never even said, "export" as you stated.



:rolleyes: OK "convert". Anyway, plotting/printing is usually the best option to get a PDF imho. YMMV
